Analog Vs Digital Ip Camera









Security cameras are commonly categorized into several types, but the main types of technology used for the transmission and capture of video signals are analog and digital formats. Analog technology has been around for a long time and is considered traditional. In the past, analog video signals were stored on tapes, which were vulnerable to damage and degradation. However, technological advancements have improved analog video storage by enabling us to capture more video and store it on hard disk drives (HDD). Despite these improvements, analog cameras still have limitations in terms of resolution and image quality.

In contrast, digital IP cameras capture and transmit video signals over an IP network. This allows for greater flexibility and scalability, as well as advanced features such as motion detection, facial recognition, and remote access. However, digital IP cameras tend to be more expensive than analog cameras and require a network infrastructure for transmission and storage.



Analog security cameras typically use less than 2Mbps (megabits per second) of network bandwidth when broadcasting at full resolution and 30 frames per second. Modern recorders are designed to store video footage from analog cameras by converting it into digital format for long-term storage on hard drives. Analog cameras are generally less expensive than their digital counterparts, making them a popular choice for basic surveillance needs.

To connect analog cameras, coaxial siamese cable or RG59 cable is typically used. BNC connectors are commonly used to connect the cameras to the DVR. In the past, Sony’s CCD sensors were widely regarded as the best in the market for analog cameras, but today there are several chip manufacturers creating imaging sensors that can rival the quality of Sony’s CCD. CMOS image sensors have also become increasingly popular due to their perceived superiority over CCD sensors, although the technologies have balanced out in terms of performance.

Some of the benefits of using analog cameras include their low cost and ease of use. Analog cameras are often considered plug-and-play, meaning they can be easily installed and used without the need for extensive technical knowledge. However, they do have limitations in terms of image quality and advanced features compared to digital IP cameras. Ultimately, the choice between analog and digital IP cameras will depend on your specific needs and budget.



Digital cameras, also known as network cameras or IP security cameras, have gained popularity since their invention. IP security camera systems are becoming increasingly popular due to the desire for higher image resolution and the increasing demand for convergence with computer technology. IP cameras transmit video signals over a network, allowing for other technologies to piggyback on the data being transmitted from the camera to the recorder.

Some IP cameras come with built-in web servers that enable users to configure direct file transfer protocol without the need for intermediary equipment. This feature allows users to configure their cameras on a computer network and upload still images and video to a remote location without the need for a DVR. IP cameras offer a range of advanced features, including motion detection, facial recognition, and remote access. They can also be integrated with other security systems and devices, such as alarms and access control systems.

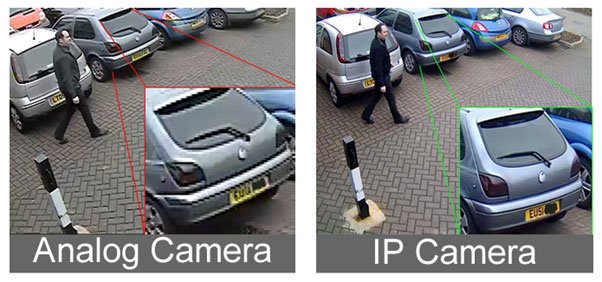

Compared to analog cameras, digital IP cameras tend to be more expensive and require a network infrastructure for transmission and storage. However, they offer higher resolution and image quality, as well as advanced features and flexibility. Ultimately, the choice between analog and digital IP cameras depends on your specific needs and budget.

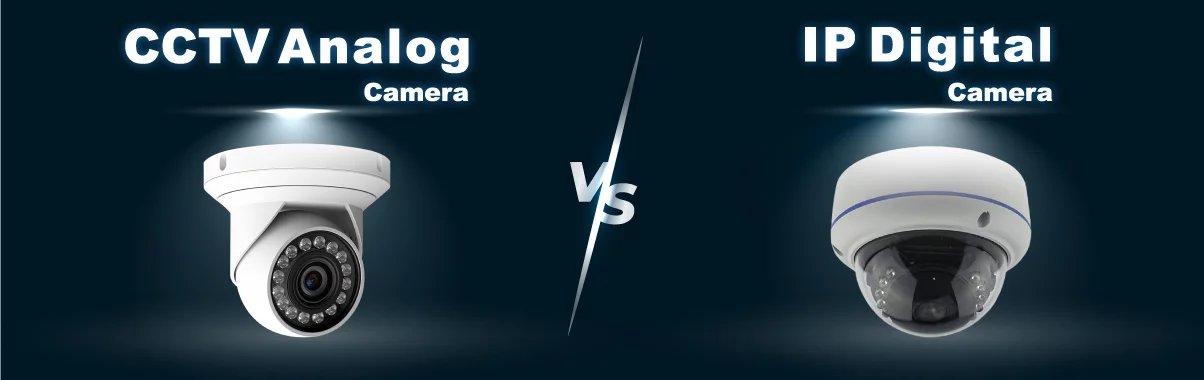

Analog and digital IP (Internet Protocol) security cameras are two types of cameras commonly used in CCTV (closed-circuit television) systems. Each has its own advantages and disadvantages, and choosing between the two depends on your specific needs.

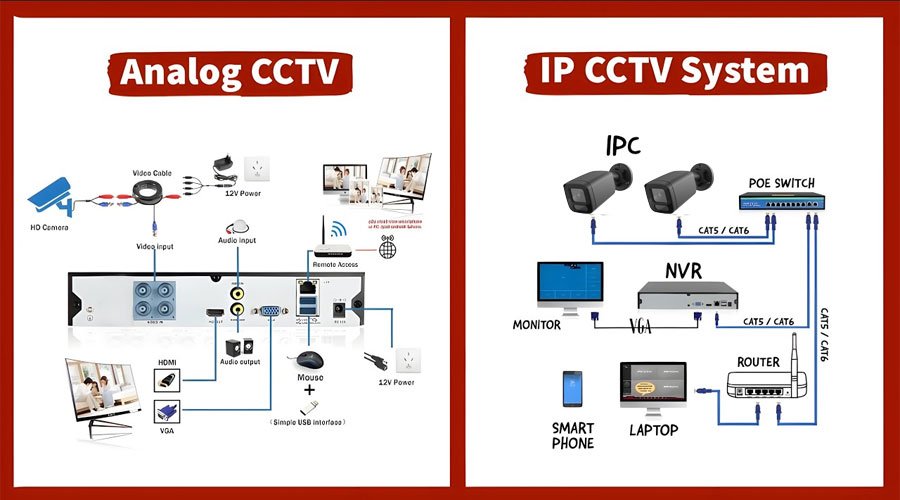

Analog cameras are the traditional type of cameras used in CCTV systems. They capture video footage and send it over coaxial cables to a DVR (digital video recorder) for storage and playback. Analog cameras have been in use for decades and are generally less expensive than digital IP cameras.

Digital IP cameras, on the other hand, capture video footage and transmit it over an IP network. They are connected to a network video recorder (NVR) or a computer, where the video footage is stored and can be accessed remotely. Digital IP cameras are generally more expensive than analog cameras but offer better image quality and greater flexibility in terms of placement and integration with other security systems

Here are some pros and cons of both analog and digital IP cameras:

Analog cameras:

Pros:

  • Cost-effective
  • Easy to install and maintain
  • Compatible with existing analog CCTV systems

Cons:

  • Limited resolution and image quality
  • Limited scalability
  • Limited features and functionality

Digital IP cameras:

Pros:

  • High resolution and image quality
  • Greater flexibility and scalability
  • Advanced features and functionality, such as motion detection, facial recognition, and remote access

Cons:

  • More expensive than analog cameras
  • Requires a network infrastructure for transmission and storage
  • Requires expertise to install and maintain


In conclusion, both analog and digital IP cameras have their advantages and disadvantages. If you have an existing analog CCTV system and are looking to upgrade, sticking with analog cameras may be the most cost-effective option. However, if you are building a new system or require advanced features and functionality, digital IP cameras are likely the better choice.

Digital cameras, also known as network cameras or IP security cameras, have gained popularity since their invention. IP security camera systems are becoming increasingly popular due to the desire for higher image resolution and the increasing demand for convergence with computer technology. IP cameras transmit video signals over a network, allowing for other technologies to piggyback on the data being transmitted from the camera to the recorder.

Some IP cameras come with built-in web servers that enable users to configure direct file transfer protocol without the need for intermediary equipment. This feature allows users to configure their cameras on a computer network and upload still images and video to a remote location without the need for a DVR. IP cameras offer a range of advanced features, including motion detection, facial recognition, and remote access. They can also be integrated with other security systems and devices, such as alarms and access control systems.

Compared to analog cameras, digital IP cameras tend to be more expensive and require a network infrastructure for transmission and storage. However, they offer higher resolution and image quality, as well as advanced features and flexibility. Ultimately, the choice between analog and digital IP cameras depends on your specific needs and budget.



The type of Cable Used for IP Cameras is Cat5e or Cat6e

The type of cable commonly used for IP cameras is Cat5e or Cat6e. These types of cables are capable of transmitting data and power over a single cable, using PoE (Power over Ethernet) technology. This makes installation simpler and more cost-effective, as it eliminates the need for separate power cables. Additionally, both Cat5e and Cat6e cables have high bandwidth capabilities, which enables them to support high-quality video and audio transmission.

IP cameras have advanced features that enable the transmission of audio along with video. By installing a microphone or speakers on the camera, audio clips can be played back or received from the camera’s vicinity. Additionally, some IP cameras are capable of transmitting VoIP data, which allows for integration with IP phones and audio playback.

Smart cameras can store video directly onto an SD card and can trigger events based on external sensory input. By using an IP camera, the cost of installation can be reduced by utilizing PoE (Power over Ethernet). This technology allows users to transmit video and power the camera through a single network cable. Typically, cat5e cctv cable or cat6e cctv cable is used for IP cameras.

Although IP security cameras may have a higher initial cost, they offer high-resolution video, audio, data, and power in one device, making them a cost-effective and efficient option for surveillance systems.
