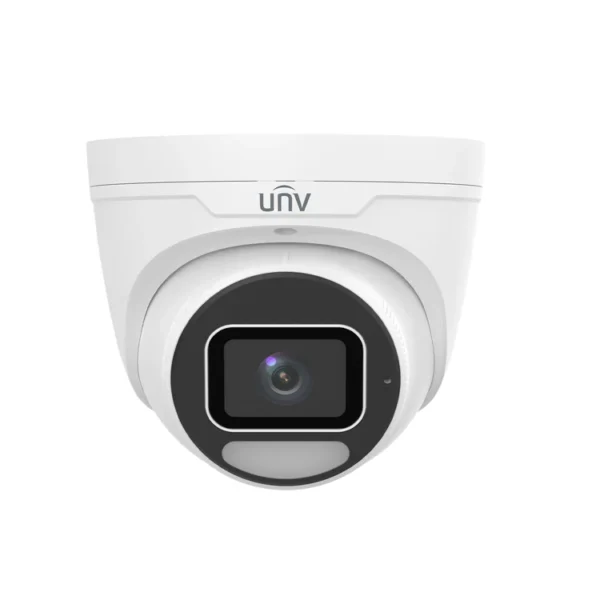

Uniview IPC3K28SE-ADF28KMC-DL-I0 OmniView Camera
Uniview IPC3K28SE-ADF28KMC-DL-I0 8MP Tri-Guard OmniView Series NDAA IP Network Double-Light Alarm Binocular Eyeball Security Camera Dual-light with Active Deterrence 2.8mm Fixed Lens 769.00$
Back to products
Iphone 6 LCD Screen Mail In Repair Service 69.00$
Hanwha Vision QNP-6320HS IP PTZ Camera
Click to enlarge
Hanwha Vision QNP-6320HS IP PTZ Camera

Hanwha Vision QNP-6320HS Wisenet Q stainless steel IP PTZ Security Camera 2MP, IP66 IK10 NEMA4X Network IR 32x 4.44~142.6mm Lens

SKU: QNP-6320HS

Key Features:

  • Compression : H.265, H.264, MJPEG,
  • Field of view ( Horizontal) : 64.66°Field of View 2.29° Field of view
  • Max. FPS and Resolution : 60fps at 1080P
  • Lens Type : Motorized ( Automatic Zoom) Lens
  • Lens Size : 4.44~142.6mm Lens
  • Sensor Type : COMS
  • Sensor Size : 1/2.8″ Sensor
  • Protection Code : IP66 IK10 NEMA 4X
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP66 IK10 NEMA 4X
  • Color : White
  • Material : Aluminum
  • Environmental : Outdoor
  • Sensor Size : 1/2.8″
  • Aperture : F1.6 F4.4

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

5,040.00$

In stock

In stock

Compare
Add to wishlist
11 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Special Order

Hanwha Vision QNP-6320HS Wisenet Q stainless steel IP PTZ Security Camera 2MP, IP66 IK10 NEMA4X Network IR 32x 4.44~142.6mm Lens



Hanwha Vision QNP-6320HS IP PTZ Camera Overview

2MP 32x PTZ

  • Max. 2MP resolution
  • 4.44~142.6mm (32x) lens
  • Day & Night (ICR), WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics
  • H.264, H.265, MJPEG codec, WiseStreamII
  • Micro SD/SDHC/SDXC 1slot 256GB
  • IP66, IK10,

View More Products

Visit our another site



Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)

MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec, 30IRE)

BW: 0.005Lux(F1.6, 1/30sec, 30IRE)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom)
Optical Zoom 32x
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 64.66°(Wide)~2.29°(Tele)

V: 38.08°(Wide)~1.30°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range 105°(90°~-15°)
Tilt Speed Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRâ…¤
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones

– Color: Grey/Green/Red/Blue/Black/White

– Solid/Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip&Mirror
Analytics Analytics events

– Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line

* Audio detection(Via optional I/O box SPM-4210)
Alarm Triggers Analytics, Network disconnect

* Alarm input((Via optional I/O box SPM-4210)
Alarm Events When alarm trigger occurred

– File upload(image) : e-mail/FTP

– Notification : e-mail

– Recording : SD/SDHC/SDXC or NAS recording at event triggers

– Alarm output

– Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)

* Alarm output (Via optional I/O box SPM-4210)
Auto Tracking Support
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamâ…¡
Bitrate Control H.264/H.265: CBR or VBR

MJPEG: VBR
Streaming Unicast(20 users) / Multicast

Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
Application Programming Interface ONVIF Profile S/G/T

SUNAPI(HTTP API)

Wisenet open platform
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Privent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control IP address filtering
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 256GB
Memory 1GB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -35°C~+55°(-31°F ~ +131°F) /

* Start up should be done at above -25°C

0~95% RH(non-condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~95% RH
Certification IP66/IP67, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max. 23W, typical 14W
Mechanical
Color / Material Silver / Stainless(SUS316L)
Product Dimensions / Weight Ø227×299.2mm(8.94×11.78″), 5.4 kg(11.93 lb)
