      Hanwha Vision XNB-9002 Wisenet 7 X series network 4K IP Box Security camera

      1,000.00$

      In stock

      Secure Checkout

      Fast Delivery

      Hanwha Vision XNB-9002 Wisenet 7 X series network 4K IP Box Security camera



      Hanwha Vision XNB-9002 IP Box Camera Overview

      • 4K (3840×2160) resolution
      • Support i-CS/ DC auto Iris / P-Iris
      • Triple Codec: H.265, H.264 and MJPEG multiple streaming
      • WiseStream II compression technology
      • extremeWDR
      • Loitering, directional detection, Defocus detection, Fog detection, Tampering detection, Motion detection, Shock detection, Face/Upper body detection, object enter or exit an area
      • Hallway view, sound classification
      • Dual SD card slots
      • Bi-directional audio, built-in microphone
      • Gyro sensor for digital image stabilization
      • Power: PoE or 12VDC/24VAC
      • RS-485 for PT head integration



      View More Products

      Visit our another site



      Video
      Imaging Device 1/2.8″ progressive CMOS
      Resolution 3840×2160, 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
      Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
      Min. Illumination Color: 0.05Lux(F1.2, 1/30sec, 30IRE) B/W: 0.005Lux(F1.2, 1/30sec, 30IRE)
      Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
      Lens
      Focus Control Simple focus
      Lens Type DC auto iris, P iris, Manual, I-CS
      Mount Type C mount, CS mount
      Operational
      Camera Title Displayed up to 85 characters
      Day & Night Auto(ICR)
      Backlight Compensation BLC, HLC, WDR, SSDR
      Wide Dynamic Range extremeWDR (120dB)
      Digital Noise Reduction SSNRⅤ
      Digital Image Stabilization Support(built-in gyro sensor)
      Defog Support
      Motion Detection 8ea, 8point Polygonal zones
      Privacy Masking 32ea, Quadrangle zones – Color : Gray, Green, Red, Blue, Black, White – Mosaic
      Gain Control Support
      White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
      LDC Support (Fill/stretch mode)
      Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control
      Video Rotation Flip, Mirror, Hallway view(90°/270°)
      Analytics Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
      Business Intelligence People counting, Queue management, Heatmap
      Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)

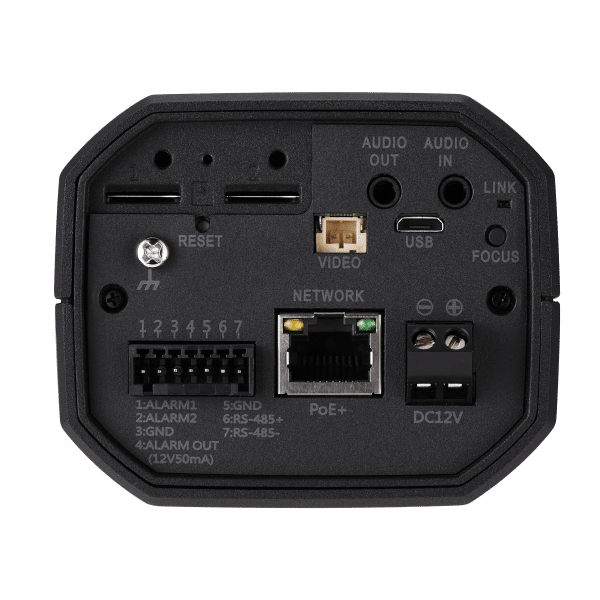

      Alarm I/O 2 configurable I/O ports
      Alarm Triggers Analytics, Network disconnect, Alarm input
      Alarm Events When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Audio clip playback
      Audio In Selectable(mic in/line in/Built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
      Audio Out Line out, Max.output level: 1Vrms
      Network
      Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
      Video Compression H.265/H.264: Main/High, MJPEG
      Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
      Smart Codec Manual(5ea area), WiseStreamⅡ
      Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
      Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
      Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
      Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP (UL 2900-1)
      Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
      General
      Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
      Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
      Memory 4GB RAM, 512MB Flash
      Environmental & Electrical
      Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / 0 ~ 95% RH (non condensing)
      Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 90% RH
      Input Voltage PoE(IEEE802.3af), 12VDC, 24VAC
      Power Consumption PoE: Max 12.95W, typical 8.2W 12VDC: Max 11.5W, typical 7.5W 24VAC: Max 13.5W, typical 8.9W Power redundancy failover
      Mechanical
      Color / Material Black / Aluminum
      Product Dimensions / Weight 81(W)x67(H)x165(D)mm(3.19×2.64×6.48″), 880g(1.94 lb)
      Weight 2 lbs
      Dimensions 6 × 3 × 3 in
