Product Overview:

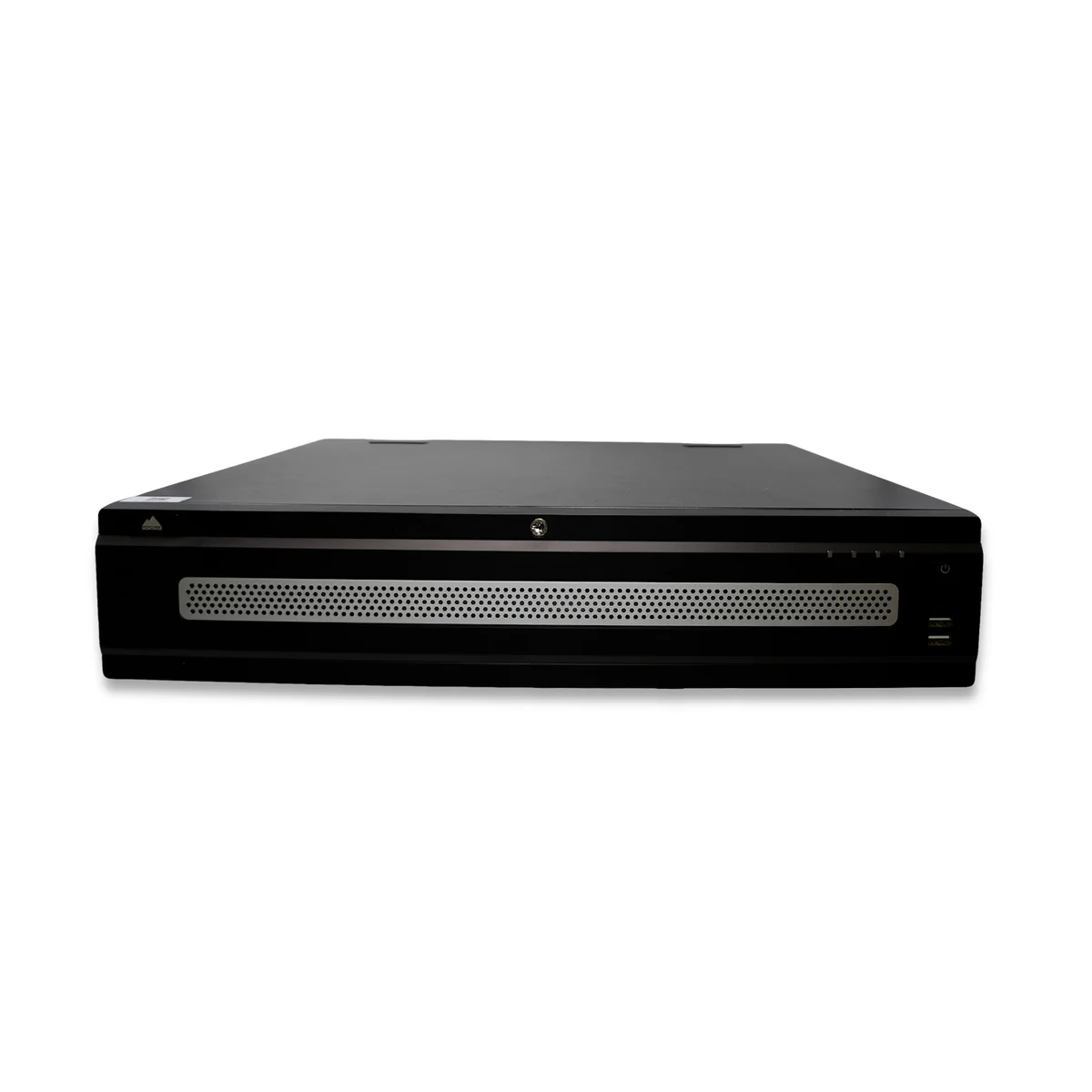

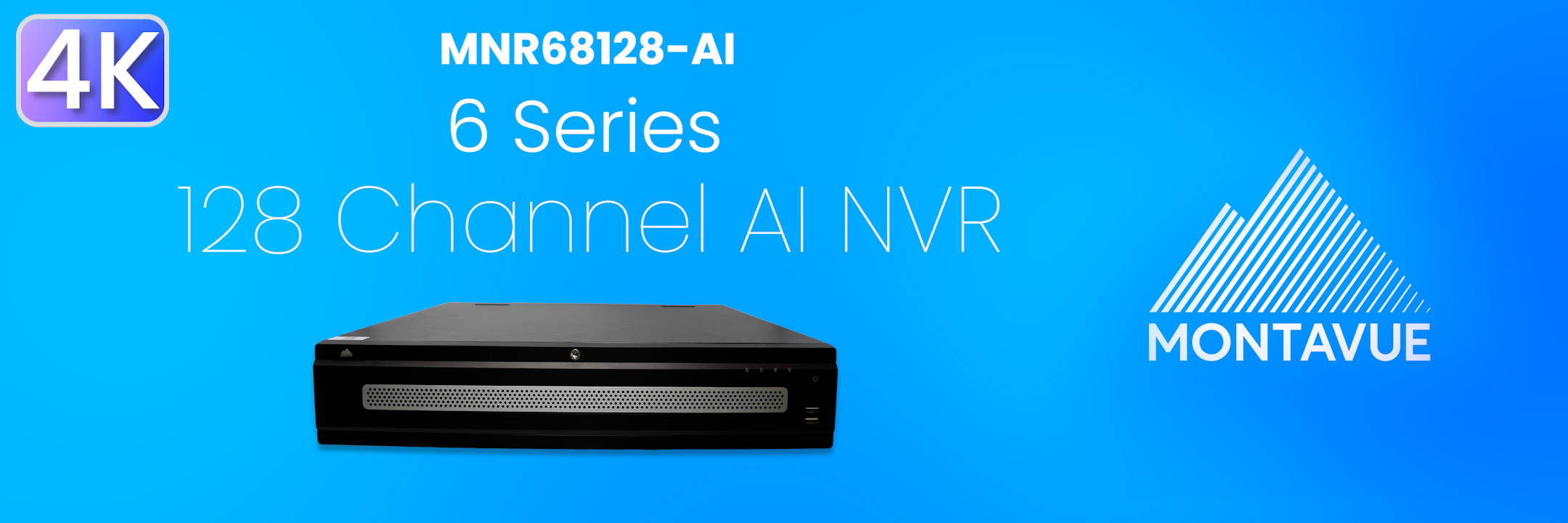

This 128-channel 4K Network Video Recorder (NVR) is a high-performance, AI-driven security solution designed to meet the demands of large-scale surveillance systems. Featuring advanced AI analytics, massive storage capacity, and support for ultra-high-definition 12MP cameras, this NVR is perfect for large commercial properties, industrial sites, and enterprise-level security needs.

---

Key Features:

• 128-Channel 4K UHD Recording: Supports up to 128 IP cameras, providing clear and detailed 4K (12MP) video recording to ensure comprehensive coverage of your surveillance area.

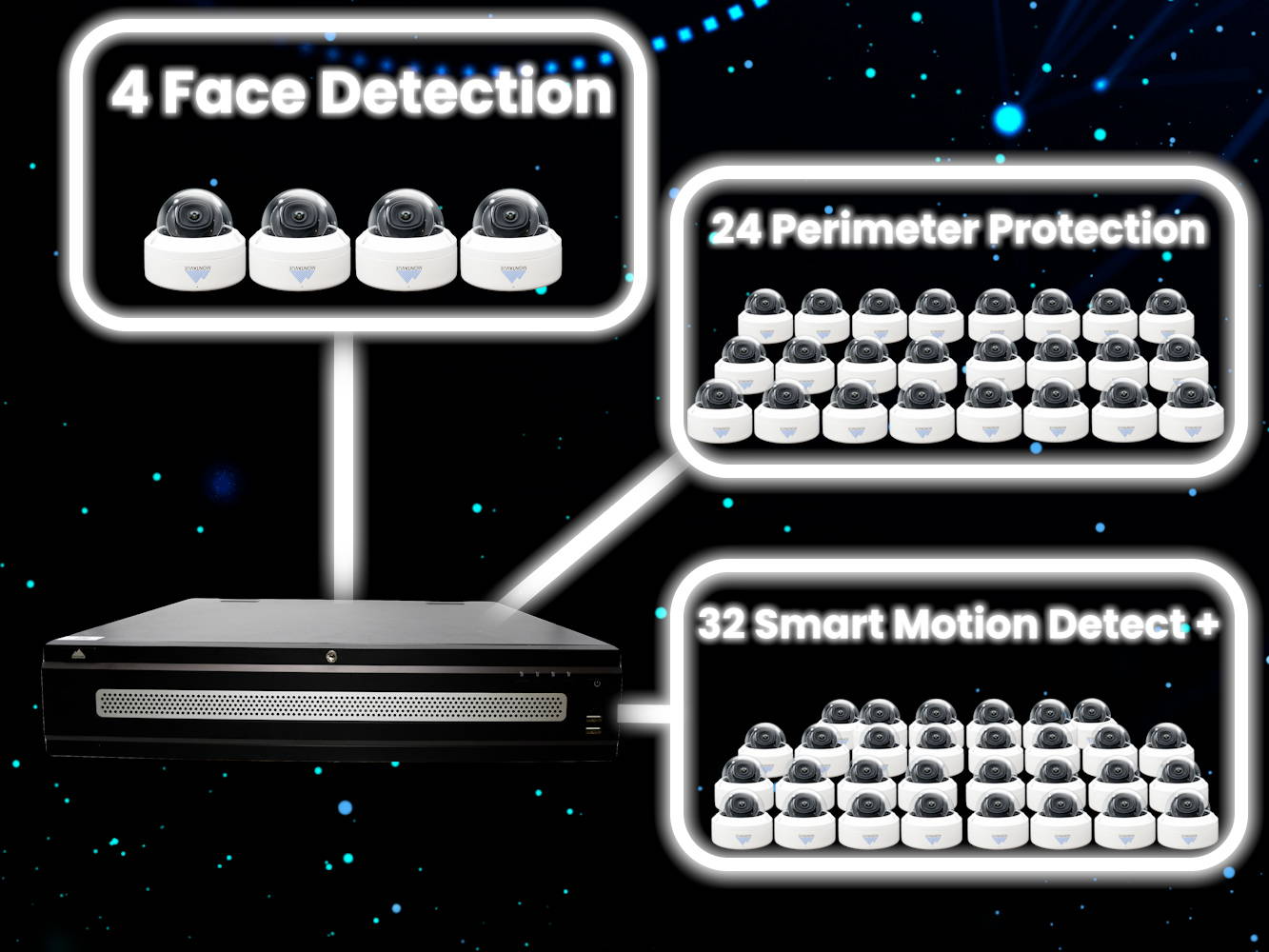

• AI-Enhanced Analytics: Integrated artificial intelligence capabilities include advanced face detection, comparison, perimeter protection, and people counting, delivering smarter and more efficient security monitoring.

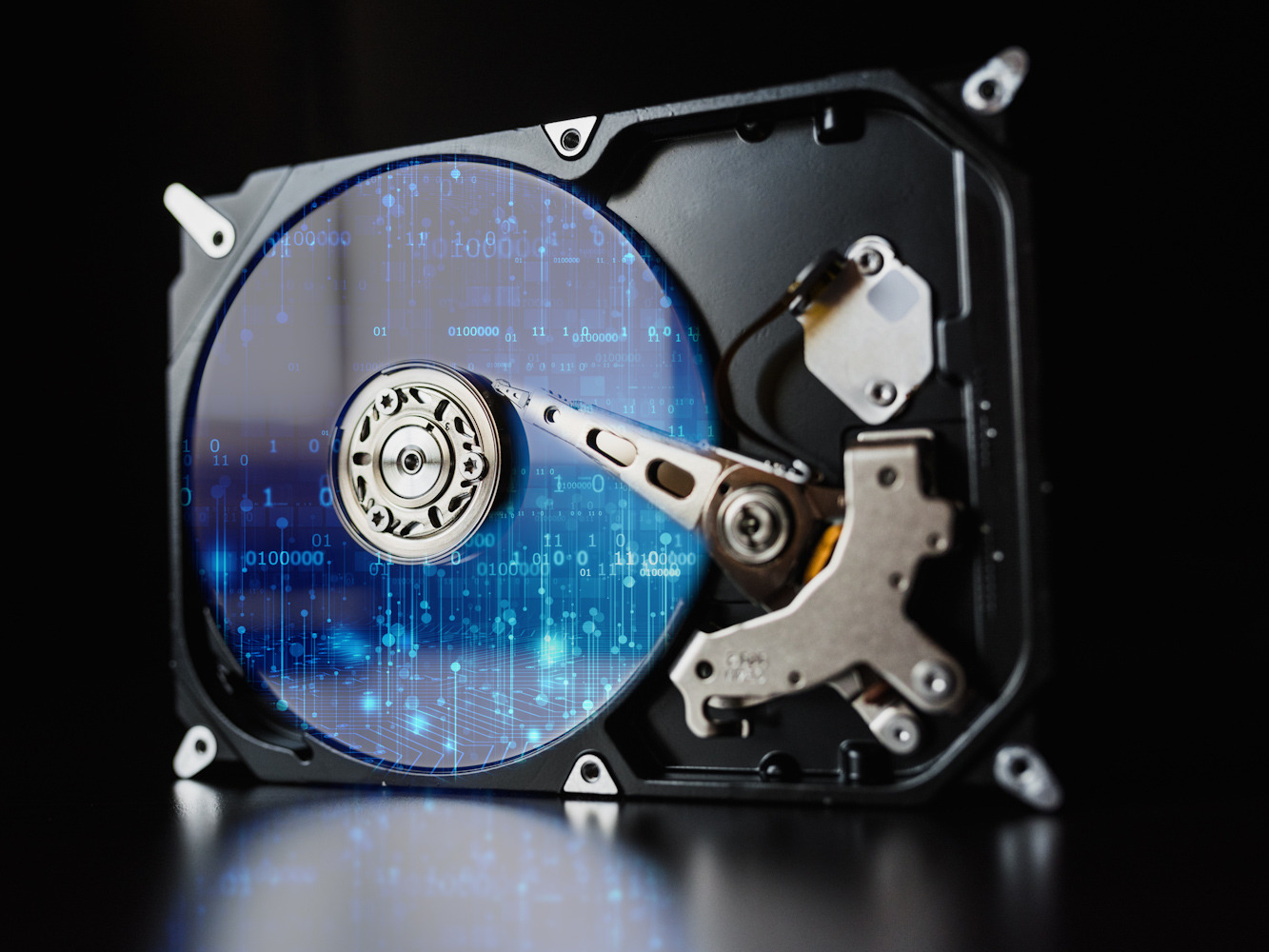

• 8 HDD Bays: The system comes with 8 SATA HDD bays, allowing for up to 80TB of total storage (10TB per HDD bay). This ensures that you can record continuously for extended periods without running out of storage.
• H.265 Video Compression: Utilizes the latest H.265 compression technology, reducing storage and bandwidth requirements by up to 50% while maintaining high video quality.
• ONVIF Compliant: Fully compliant with the ONVIF standard, making it compatible with most third-party IP cameras.
• Dual 4K HDMI Outputs: Provides two HDMI outputs, each supporting up to 4K resolution, allowing you to monitor multiple cameras on dual displays at high resolution.
• Synchronized Playback: Supports 16-channel synchronized playback, enabling you to review footage from multiple cameras at once for a more efficient investigation process.
• Remote Access: Equipped with the MontavueGO app for iOS and Android, allowing you to view live feeds, playback footage, and receive alerts remotely from your smartphone or tablet.
• RAID Support: Supports RAID 1, 5, and 10 configurations for enhanced data redundancy, ensuring your critical footage is protected against data loss.
• Hot Swappable HDDs: HDDs are hot-swappable, meaning you can replace or upgrade hard drives without powering down the system, ensuring continuous operation.
• Smart Search Functionality: Allows users to search for specific events within recorded footage using advanced event-based filters, saving time during video review.

---

Specifications:

General

• Maximum Number of Channels: 128 IP camera channels
• Maximum Camera Resolution: Up to 12MP per camera, delivering stunning 4K UHD video quality
• Video Compression Format: H.265 / H.264 for efficient storage management and bandwidth optimization
• Decoding Capacity (Live View): Up to 128 channels at 12MP resolution, ensuring smooth and high-quality real-time viewing
• Decoding Capacity (Playback): Supports 16 channels of synchronized playback at up to 12MP resolution for efficient review of multiple camera feeds
• Supported Protocols: TCP/IP, DHCP, DNS, DDNS, NTP, RTSP, RTP, SMTP, NFS, SMB/CIFS, HTTPS, SSL

Storage & Memory

• HDD Bays: 8 SATA HDD bays with support for up to 10TB per bay, providing a maximum storage capacity of 80TB for extensive video recording
• RAID Support: RAID 1, 5, and 10 for enhanced data protection and storage redundancy
• Hot Swappable HDDs: HDDs can be replaced or added without system downtime

AI Features

• Face Detection and Comparison: Detects and compares faces against a database for identification and alerting
• Perimeter Protection: Detects events like line crossing, intrusion, loitering, and abandoned/missing objects
• People Counting: Provides valuable insights for businesses by tracking the number of people in specific areas

Audio/Video

• Video Outputs:
  • 2x HDMI (each supports up to 4K resolution)
  • 1x VGA (supports up to 1080p resolution)
• Audio Input/Output:
  • 1x RCA input for connecting audio from external sources
  • 1x RCA output for sending audio to external speakers or devices

Networking

• Network Interface:
  • 2x Gigabit Ethernet (1000 Mbps) ports for high-speed network connectivity and redundancy
• USB Ports:
  • 2x USB 2.0 (front panel)
  • 1x USB 3.0 (rear panel) for fast backup and data transfers

Alarm Integration

• Alarm Input: 16 channels for integrating with external alarm systems such as motion sensors or door contacts
• Alarm Output: 8 channels to trigger external alarms or devices in response to specific security events

Power Supply

• Power Input: 100-240V AC, 50/60Hz, making it compatible with international power standards
• Power Consumption:
  • Idle: <15W (without HDD)
  • Max: <65W (without HDD)

Environmental

• Operating Temperature: -10°C to 55°C (14°F to 131°F), ensuring reliable operation in a wide range of environmental conditions
• Operating Humidity: 10% to 90% RH, non-condensing, allowing use in various indoor environments

Physical Dimensions & Weight

• Dimensions: 17.32″ x 16.93″ x 3.46″ (440mm x 430mm x 88.6mm), fits standard 2U rack mounts
• Weight: 11.02 lbs (5kg) without HDDs

---

What’s Included:

• Network Video Recorder (NVR) Unit
• Power Cable
• USB Mouse
• Quick Start Guide
• Rack Mounting Kit

---

Applications:

This NVR is ideal for large-scale surveillance installations such as:

• Commercial Properties: Shopping centers, corporate offices, and retail stores
• Industrial Sites: Factories, warehouses, and manufacturing plants
• Educational Institutions: Schools, universities, and campuses
• Public Spaces: Government buildings, transportation hubs, and city surveillance projects
• Multi-Site Monitoring: Ideal for enterprises with multiple locations requiring centralized video monitoring and management

---

Why Choose This NVR?

This NVR delivers exceptional performance, scalability, and advanced AI analytics, making it an ideal solution for enterprises that require reliable and intelligent video surveillance. With its high-resolution recording, large storage capacity, and robust remote access features, it offers unparalleled value for professional security systems.
