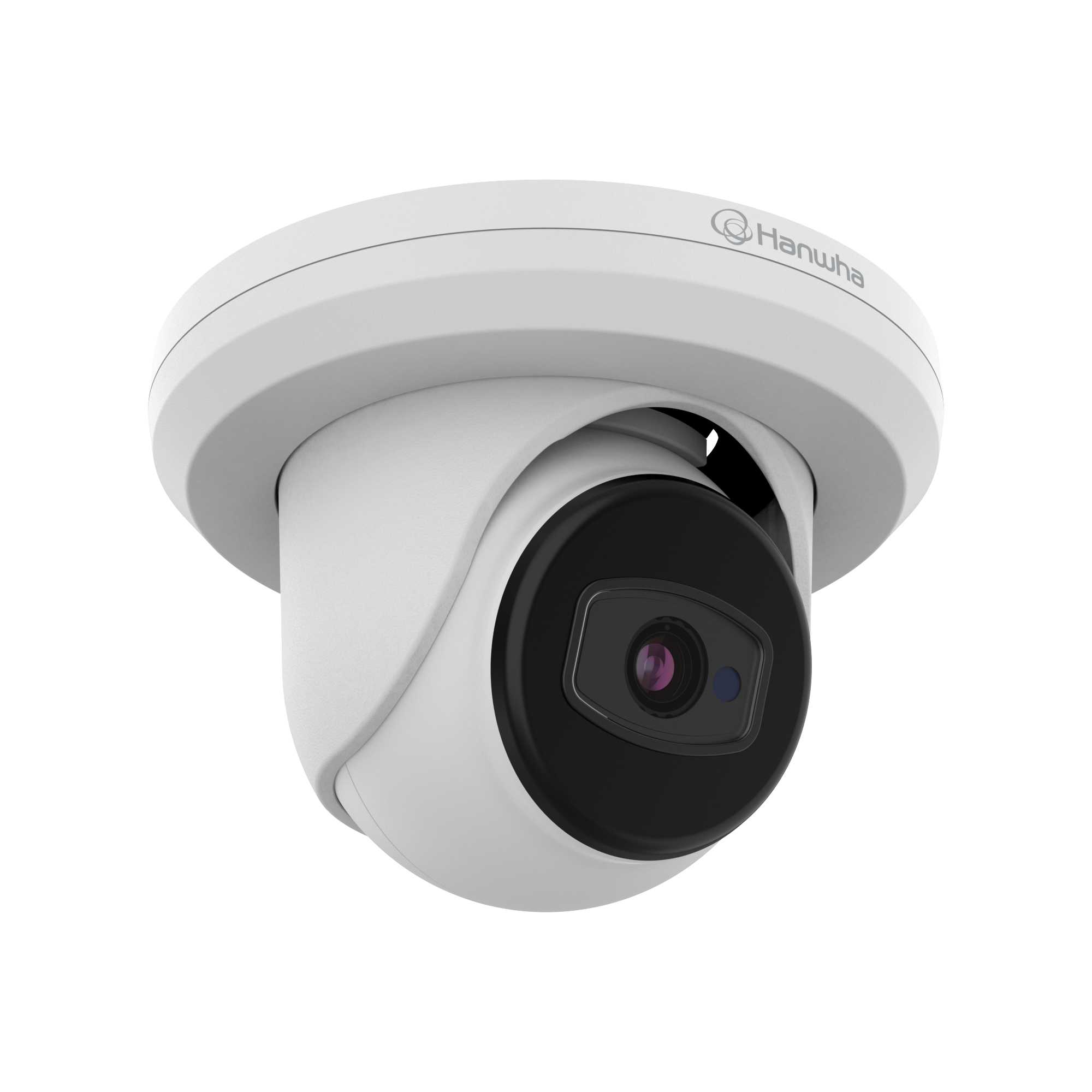

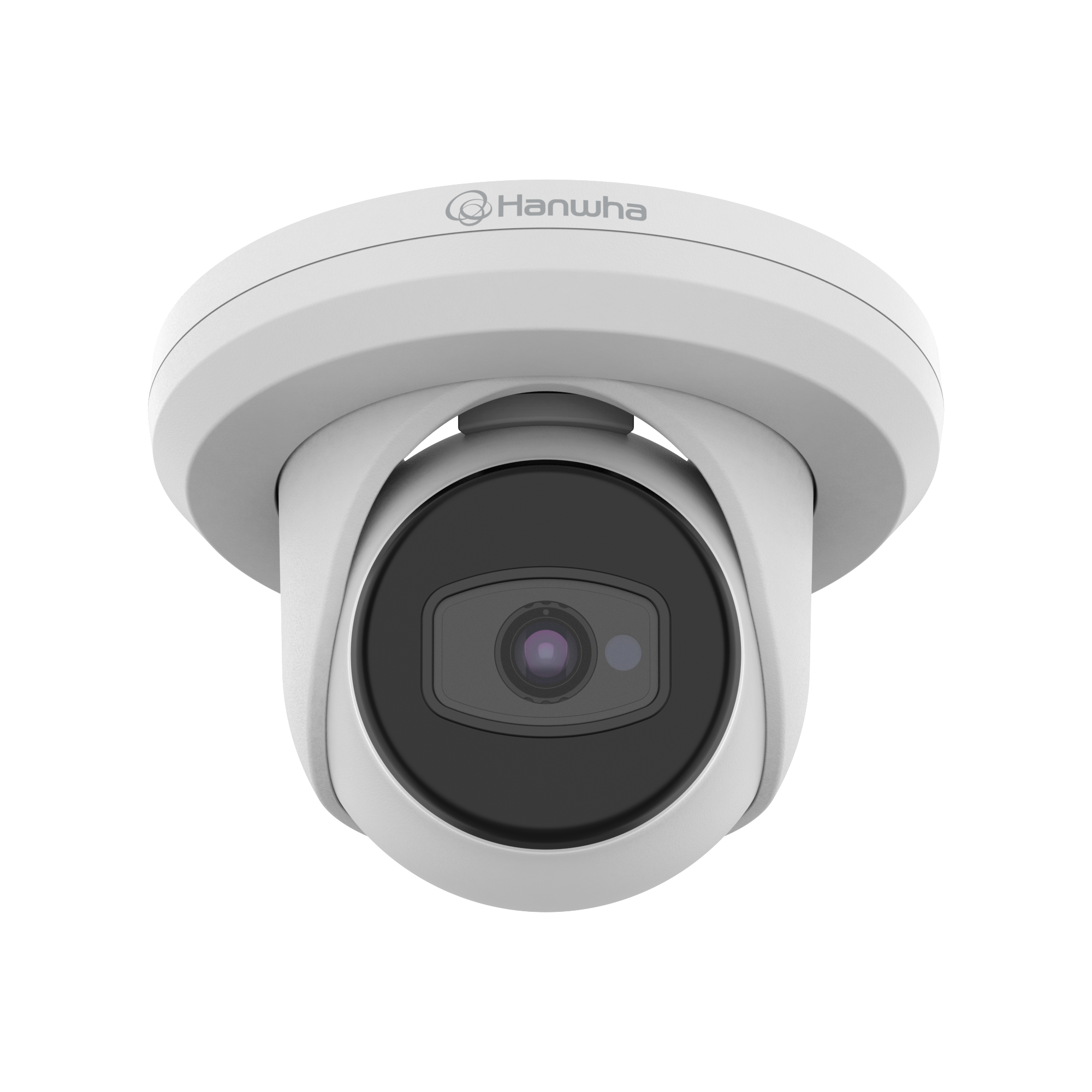

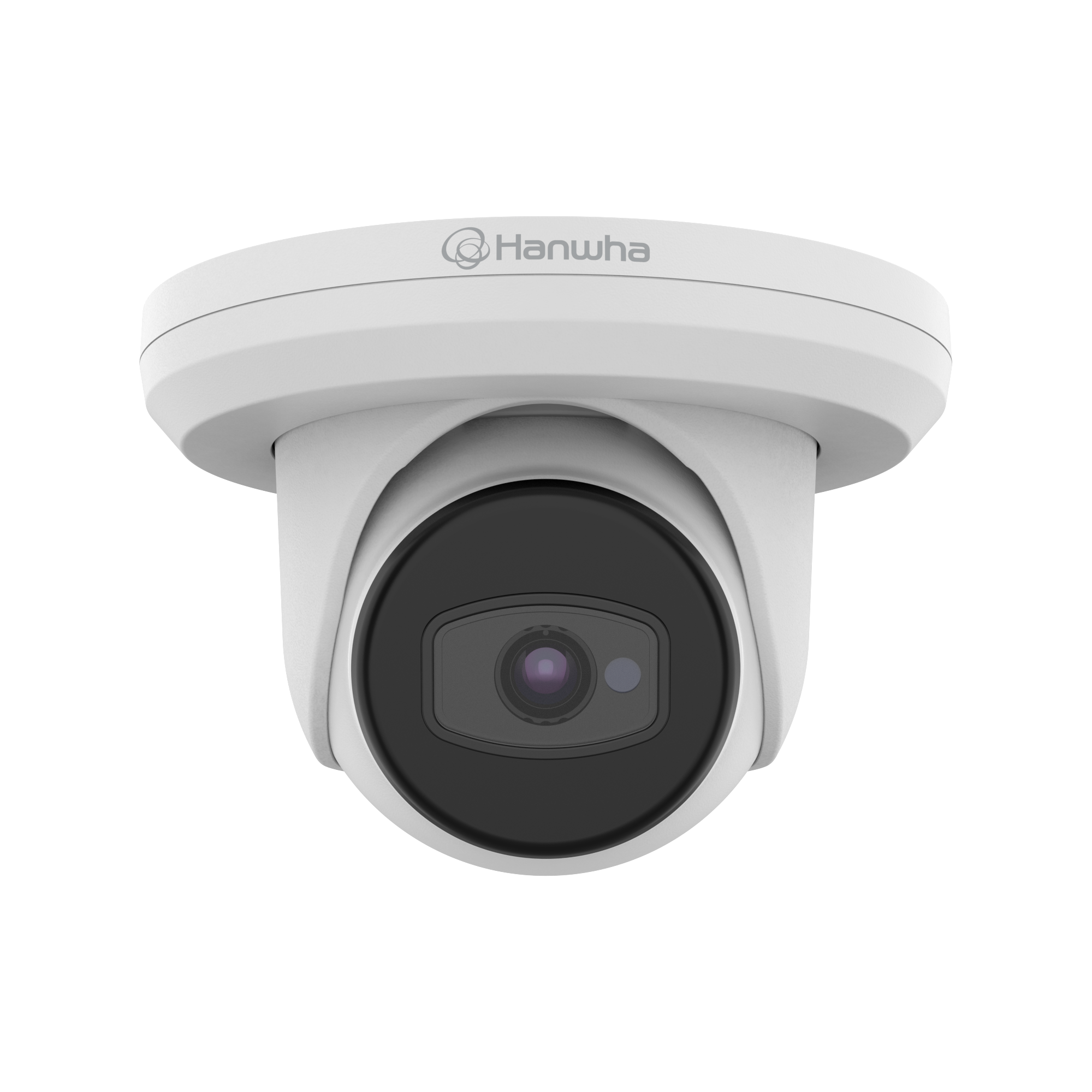

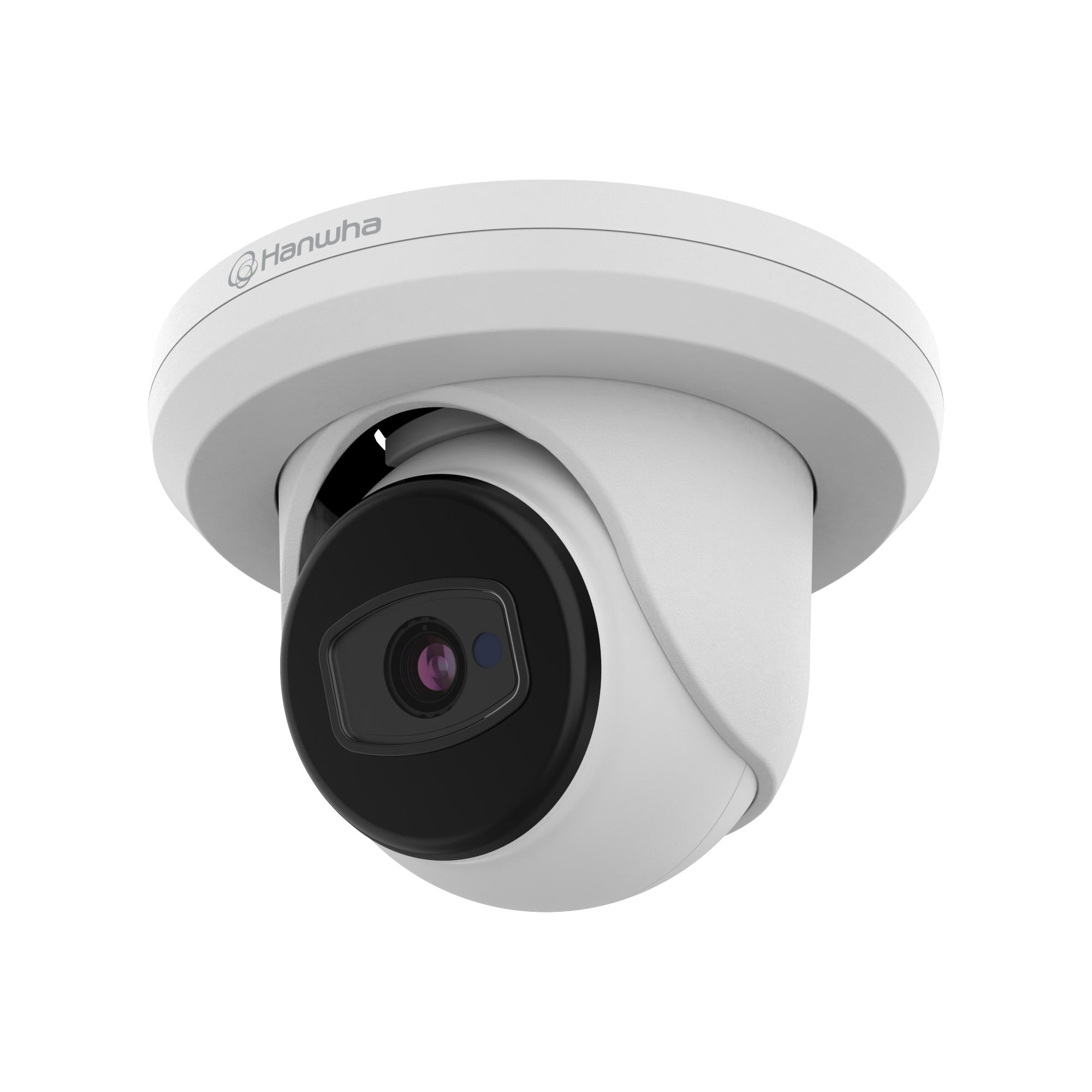

Name: Hanwha Vision ACE-6020R Wisenet A Series Analog HD 2MP IR turret camera
Brand: Hanwha
SKU: ACE-6020R
Price: 93.00 USD
Availability: InStock

Hanwha Vision ACE-6020R Wisenet A Series Analog HD 2MP IR turret camera

Key Features

2MP Full HD resolution @ 30FPS
0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
3.6mm fixed focal lens FoV H: 81° / V: 42°
Day & Night (ICR), DWDR
IR distance 20m(65.6 ft)
IP67, IK10
12v DC power
Transmission distance Max.500m
Easy installation (Plug & play), Coaxial control
Multi-protocol compatible with AHD, TVI, CVI, CVBS

Weight	1 lbs
Dimensions	5 × 3 × 3 in
Brands	Hanwha Techwin
Color	Black, Ivory
Camera Style	Box
Lens-type	DC auto iris
Resolution	4MP
Material	Aluminum, Plastic

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Imaging Device	Size	1/3″
	Type	CMOS
Resolution		1920×1080
Max. Framerate(NTSC/PAL)		30fps
Min. Illumination	Color(1/30sec, 30IRE)	0.08
	BW(1/30sec, 30IRE)	0.008
Video Out		BNC: AHD
Video Transmission Distance		300m(5C2V Coaxial Cable)

Focal Length (mm)		3.6
Max Aperture Ratio (F number)	Wide	1.6
Angular Field of View	Horizontal	77.6°
	Vertical	40.3°
	Diagonal	91.5°
Min. Object Distance		2.0m(6.56ft)

Day & Night		Auto(ICR)
Backlight Compensation		BLC, DWDR
Digital Noise Reduction		2D+3DDNR
Gain Control		Low, Middle, High
White Balance		ATW, AWC
Electronic Shutter	Mode	Auto
	Speed Range	1/30~1/50,000sec
Video Rotation		Flip, Mirror, Hallway view(90°/270°)
IR Viewable Length		25m(82.02ft)
Coaxial Protocol		ACP, TCP, CCP, CVBS

Operating Condition	Temperature	-30°C~+55°C(-22°F~+131°F)
Operating Condition	Humidity	0~90% RH(non-condensing)
Storage Condition	Temperature	-30°C~+60°C
Storage Condition	Humidity	0~90% RH(non-condensing)
Input Voltage		12VDC
Power Consumption	12VDC	Max 3.6W, Typical 2.9W

Color		White
Material		Aluminum, PC(Polycarbonate)
Product Dimensions		ø120x82mm(ø4.72″x3.23″)
Product Weight		410g(0.90lb)

Hanwha Vision ACE-6020R Wisenet A Series Analog HD 2MP IR turret camera

SKU

:

ACE-6020R

Category

:

Categories: Hanwha Cameras, Hanwha WiseNet HD+ Series, HD Analog Cameras, HD CCTV, NDAA-Compliant Security Cameras & Recorders, Security Cameras

Tags

:

Share

:

Secure Checkout

Fast Delivery

Compatible Products

Hanwha Vision SHB-4300H1 Weatherproof Housing for Fixed Camera Security Accessory

Hanwha Vision SHB-4301HP Outdoor Box Camera Fixed Housing Security Accessory

Hanwha Vision STB-4150V Fixed Mount Bracket for Box Cameras Security Accessory
