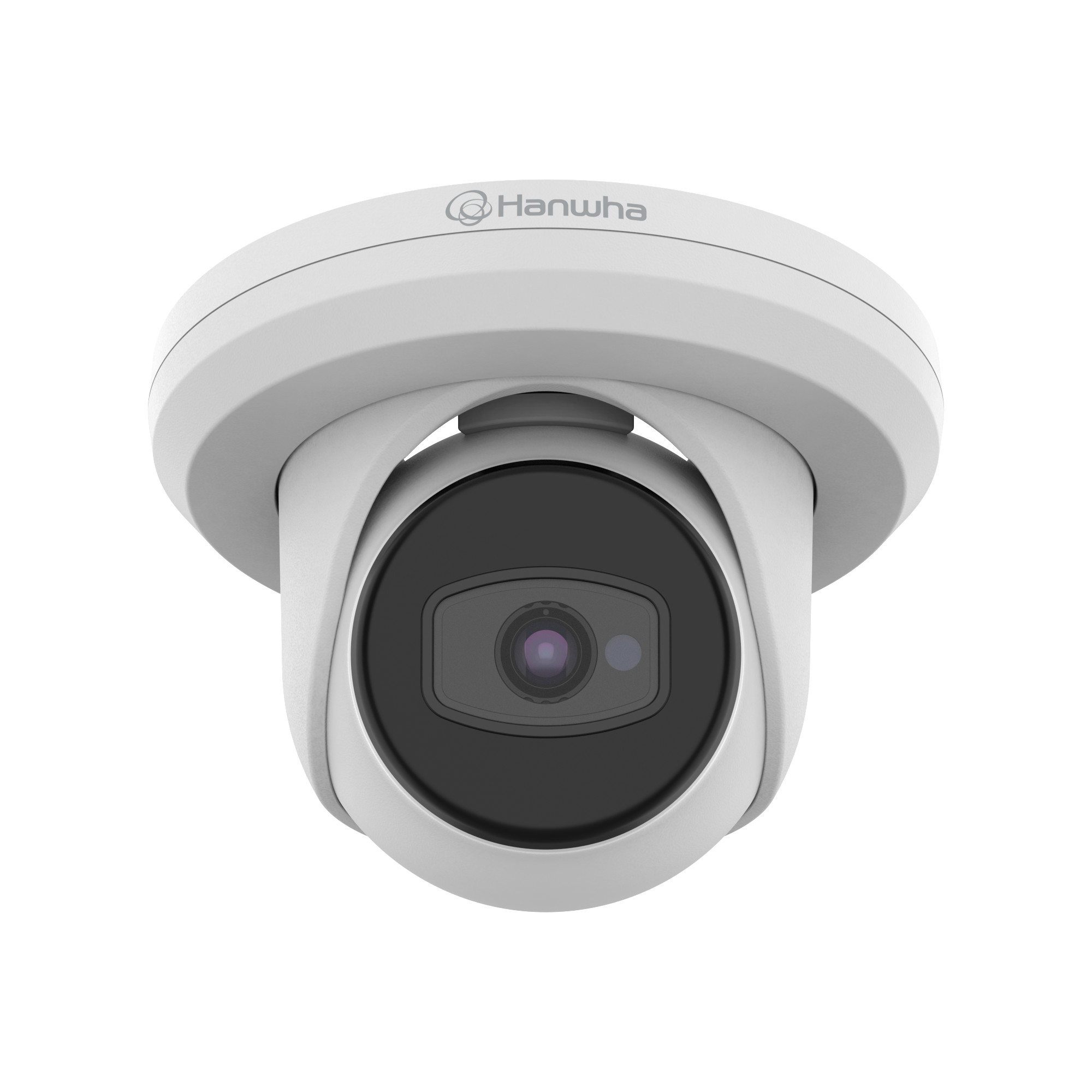

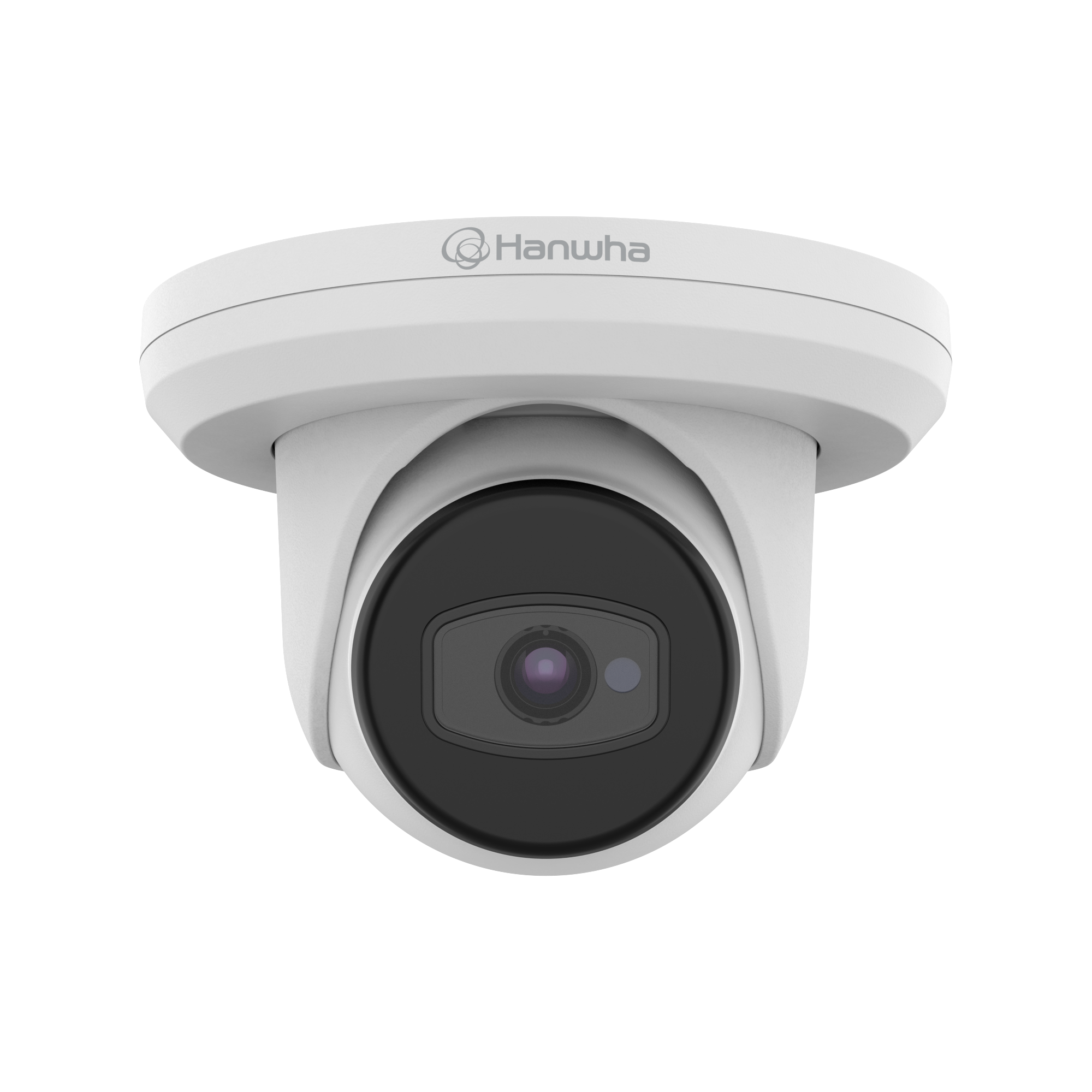

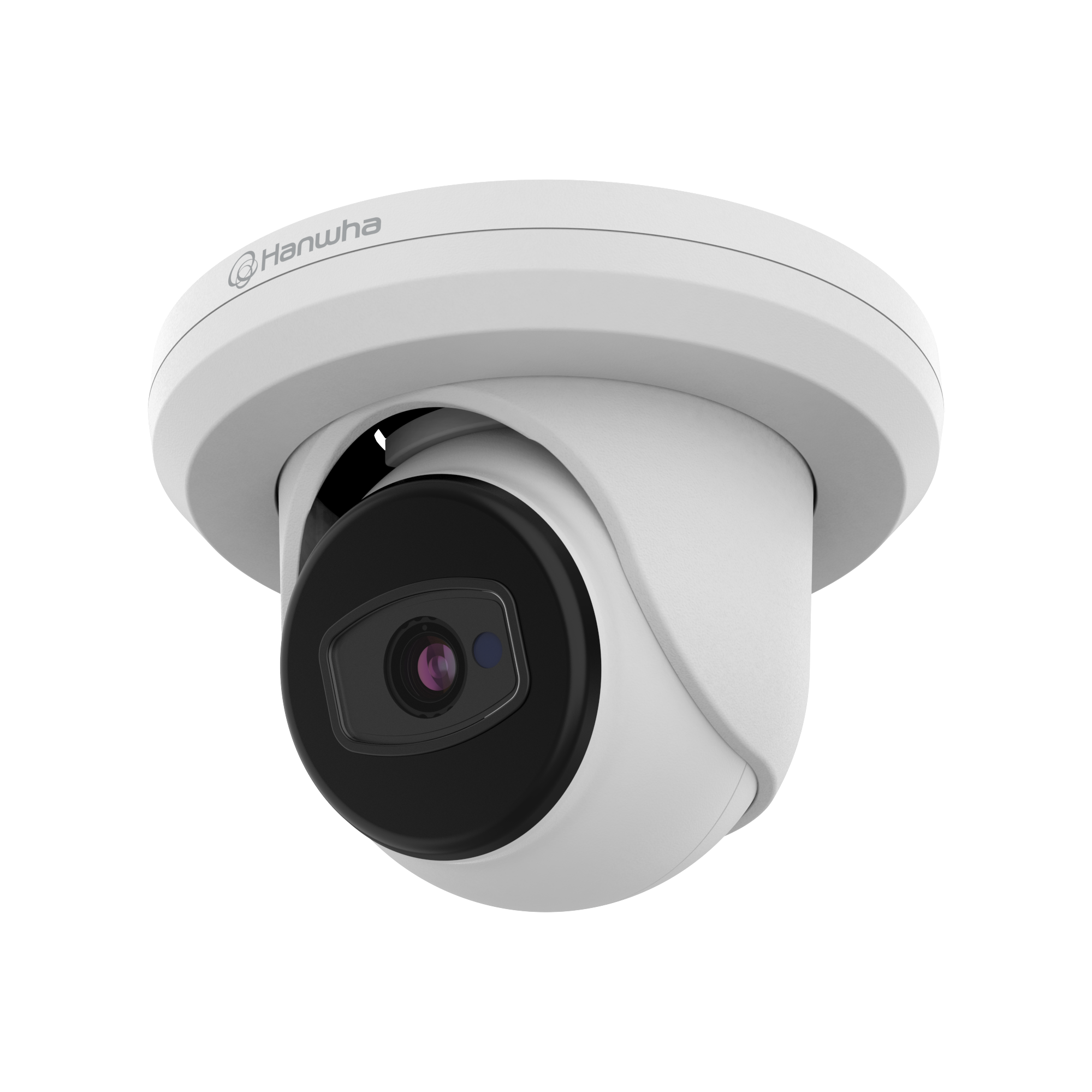

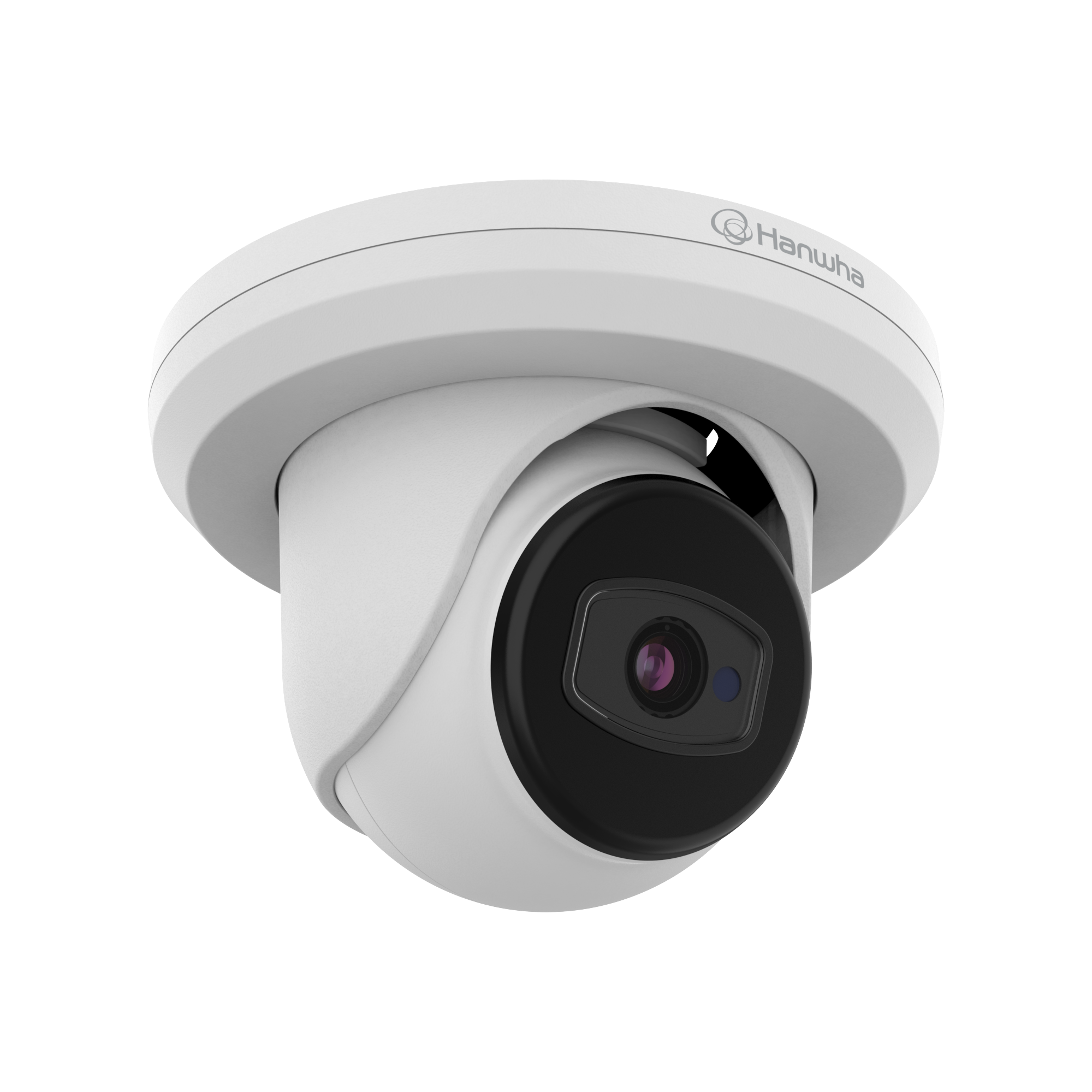

Hanwha Vision ACE-8020R Analog HD 5MP Turret Security Camera
120.00$
SKU
:
ACE-8020R
Category
:
Tags
:
Categories: 12V DC security camera, 20m infrared night vision camera, 3.6mm fixed lens camera, 30fps security camera, 5MP security camera, 5MP turret camera, AHD camera, analog HD camera, BNC video output camera, coaxial security camera, CVBS camera, CVI camera, day and night surveillance camera, DWDR surveillance camera, Hanwha Vision ACE-8020R, Hanwha Vision CCTV camera, IK10 vandal-resistant camera, IP67 Weatherproof Camera, multi-format analog camera, outdoor surveillance camera, plug and play CCTV camera, Turret Security Camera, TVI camera, wide angle security camera, wired security camera
Share
:
Secure Checkout
Fast Delivery
In stock
Compatible Products
FAQs
Hanwha Vision ACE-8020R Analog HD 5MP Turret Security Camera
120.00$
In stock
Hanwha Vision ACE-8020R Analog HD 5MP Turret Security Camera
Key Features
- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 94° / V: 54°
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Video
| Imaging Device | Size | 1/2.5″ |
| Type | CMOS | |
| Resolution | 2592×1944, 2560×1440 | |
| Max. Framerate(NTSC/PAL) | 30fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.4 |
| BW(1/30sec, 30IRE) | 0.04 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) | |
Lens
| Focal Length (mm) | 3.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 83.9° |
| Vertical | 63.4° | |
| Diagonal | 104° | |
| Min. Object Distance | 0.8m(2.62ft) | |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | 2D+3DDNR | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC | |
| Electronic Shutter | Mode | Auto |
| Speed Range | 1/30~1/50,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| IR Viewable Length | 20m(65.62ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS | |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 12VDC | |
| Power Consumption | 12VDC | Max 5.4W,Typical 4.3W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | ø120x82mm(ø4.72×3.23″) | |
| Product Weight | 410g(0.90lb) | |
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 3 in |
| Brands | |
| Color | |
| Camera Style | |
| Lens-type | |
| Resolution | |
| Material |
