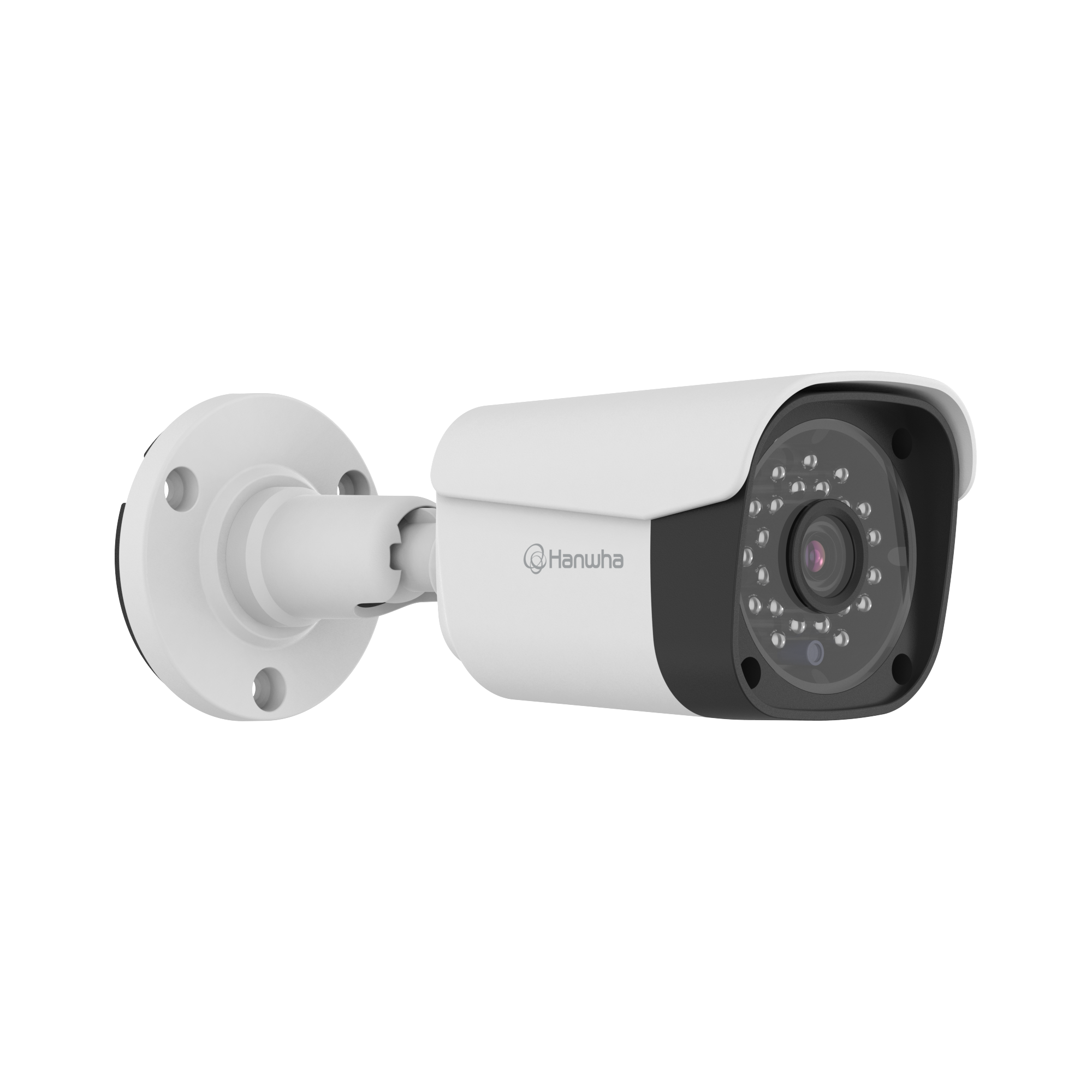

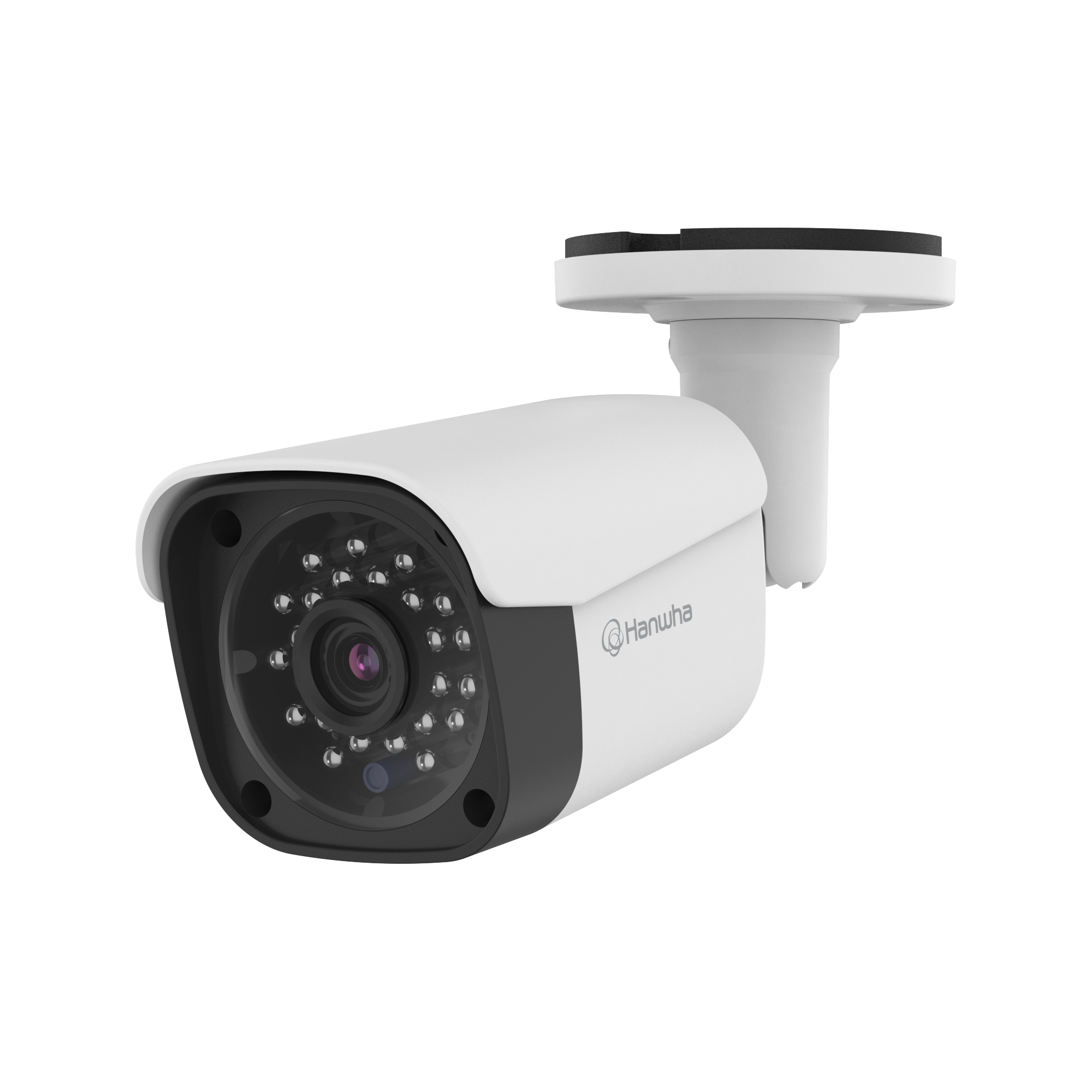

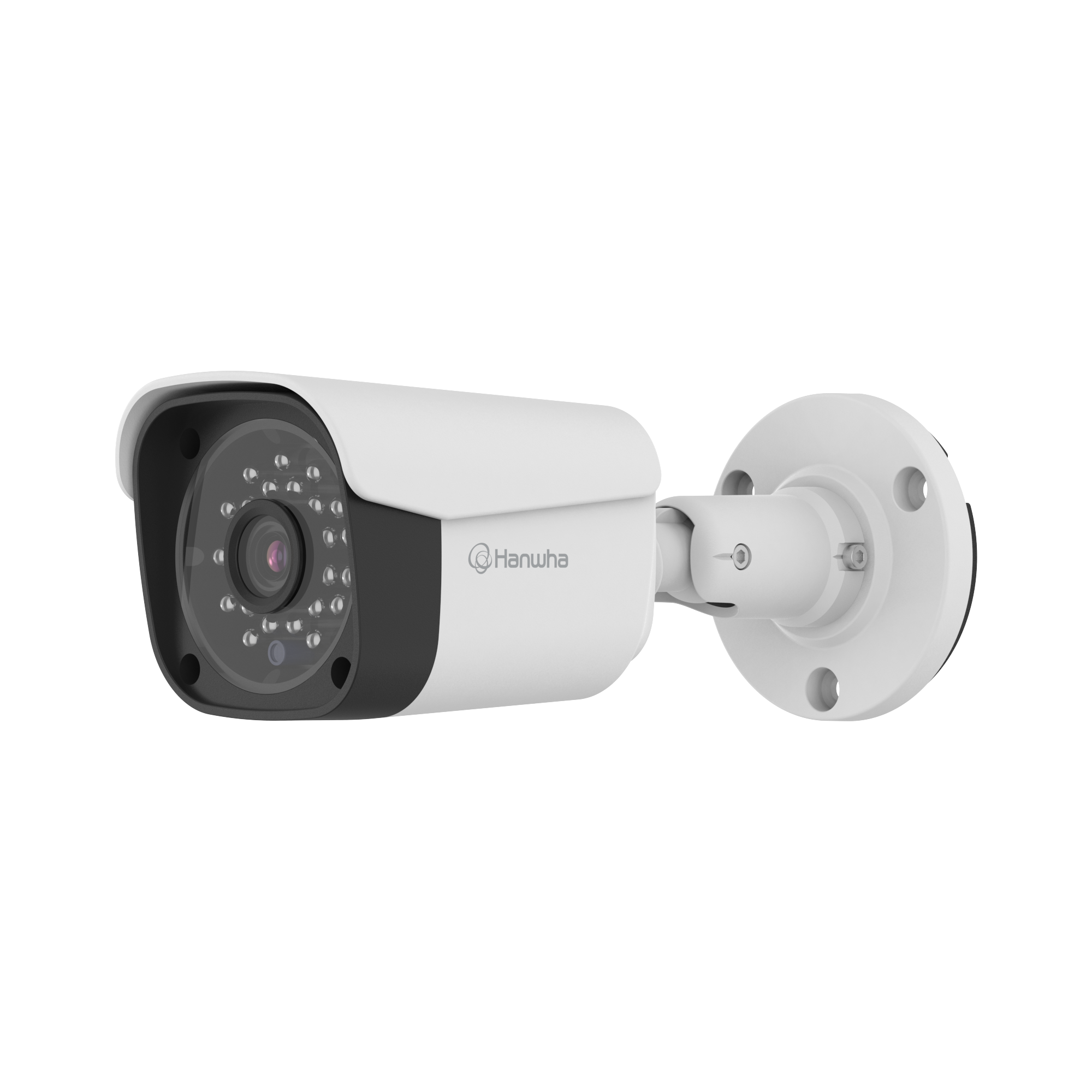

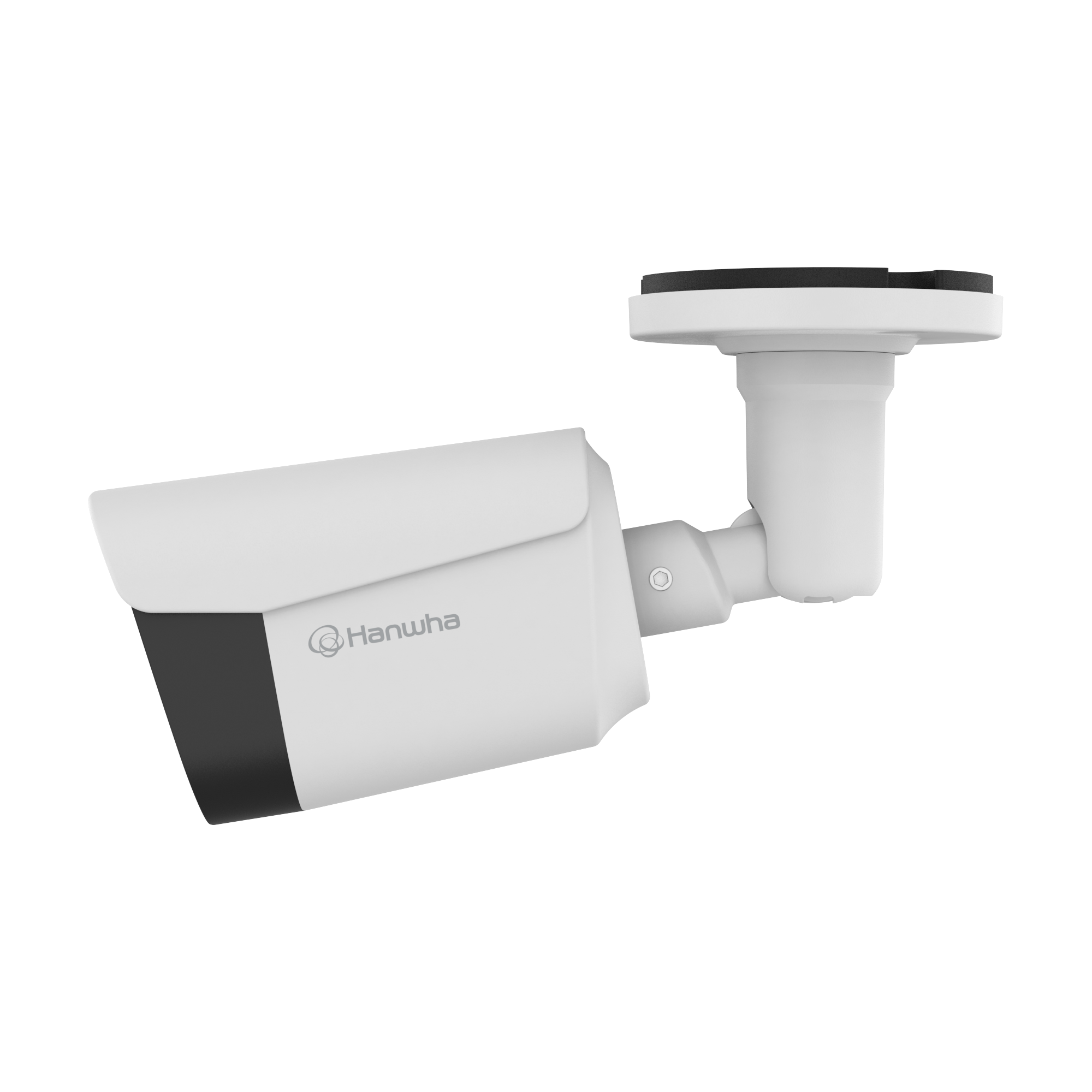

Hanwha Vision ACO-6020R 2MP Analog HD IR Bullet Security Camera
93.00$
SKU
:
ACO-6020R
Category
:
Tags
:
Categories: 1080p analog security camera, 12V DC security camera, 25m IR security camera, 2MP HD security camera, 3.6mm fixed lens camera, 30fps surveillance camera, 81 degree field of view camera, AHD TVI CVI CVBS Compatible Camera, aluminum bullet camera, coaxial security camera, day and night surveillance camera, DWDR security camera, Full HD CCTV camera, Hanwha analog HD camera, Hanwha Vision ACO-6020R, IK10 vandal-resistant camera, infrared night vision camera, IP67 Weatherproof Camera, IR Bullet Camera, low light security camera, outdoor bullet security camera
Share
:
Secure Checkout
Fast Delivery
In stock
Compatible Products
FAQs
Hanwha Vision ACO-6020R 2MP Analog HD IR Bullet Security Camera
93.00$
In stock
Hanwha Vision ACO-6020R 2MP Analog HD IR Bullet Security Camera
Key Features
- 2MP Full HD resolution @ 30FPS
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 81° / V: 42°
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Video
| Imaging Device | Size | 1/3″ |
| Type | CMOS | |
| Resolution | 1920×1080 | |
| Max. Framerate(NTSC/PAL) | 30fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.08 |
| BW(1/30sec, 30IRE) | 0.008 | |
| Video Out | BNC: AHD | |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) | |
Lens
| Focal Length (mm) | 3.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 78° |
| Vertical | 41° | |
| Diagonal | 92° | |
| Min. Object Distance | 2.0m(6.56ft) | |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | 2D+3DDNR | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC | |
| Electronic Shutter | Mode | Auto |
| Speed Range | 1/30~1/50,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| IR Viewable Length | 25m(82.02ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS | |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 12VDC | |
| Power Consumption | 12VDC | Max 3.6W, Typical 2.9W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | 70(W)x69(H)x186(D)mm(2.76″x2.72″x7.32″) | |
| Product Weight | 420g(0.93lb) | |
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 3 × 3 in |
| Brands | |
| Color | |
| Camera Style | |
| Lens-type | |
| Resolution | |
| Material |
