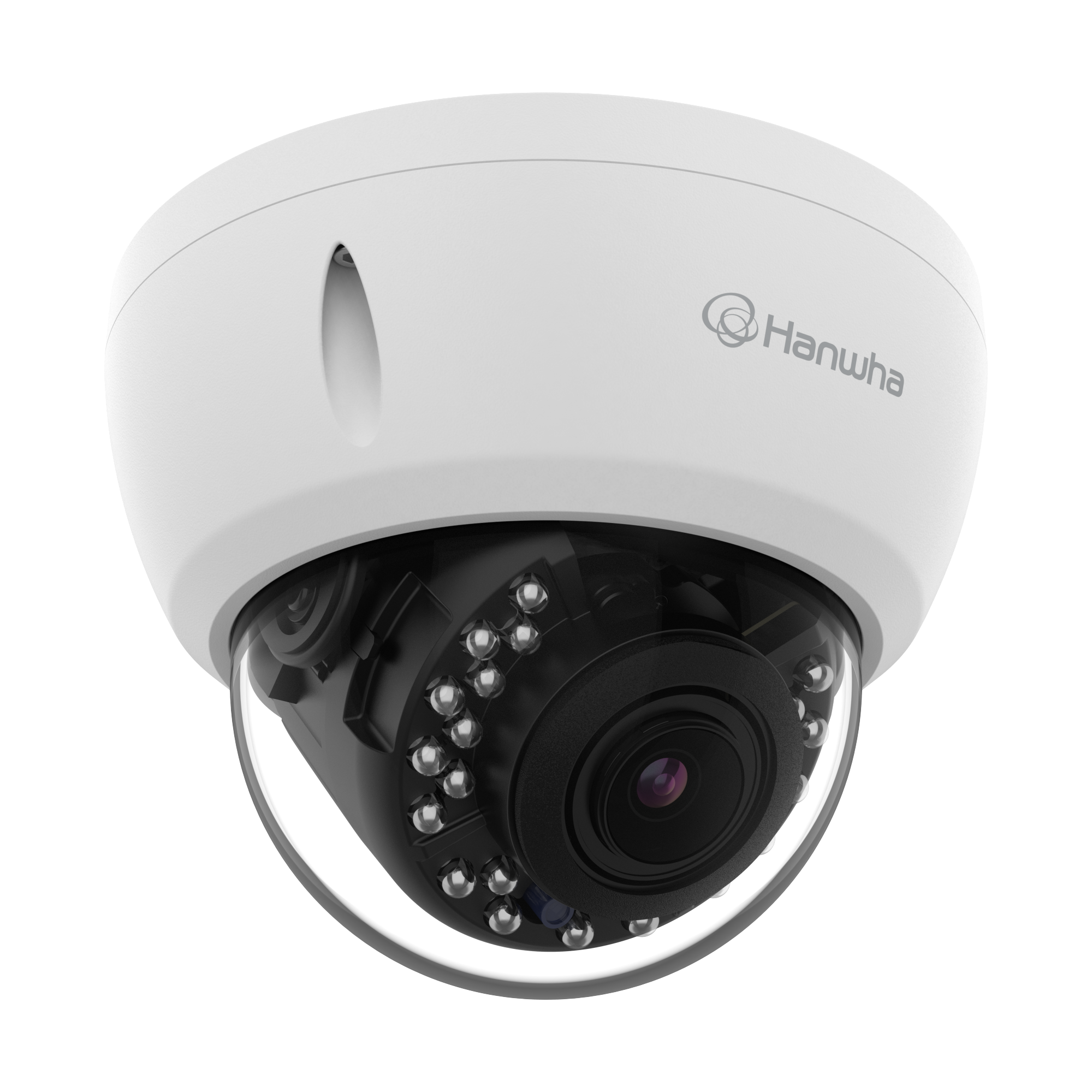

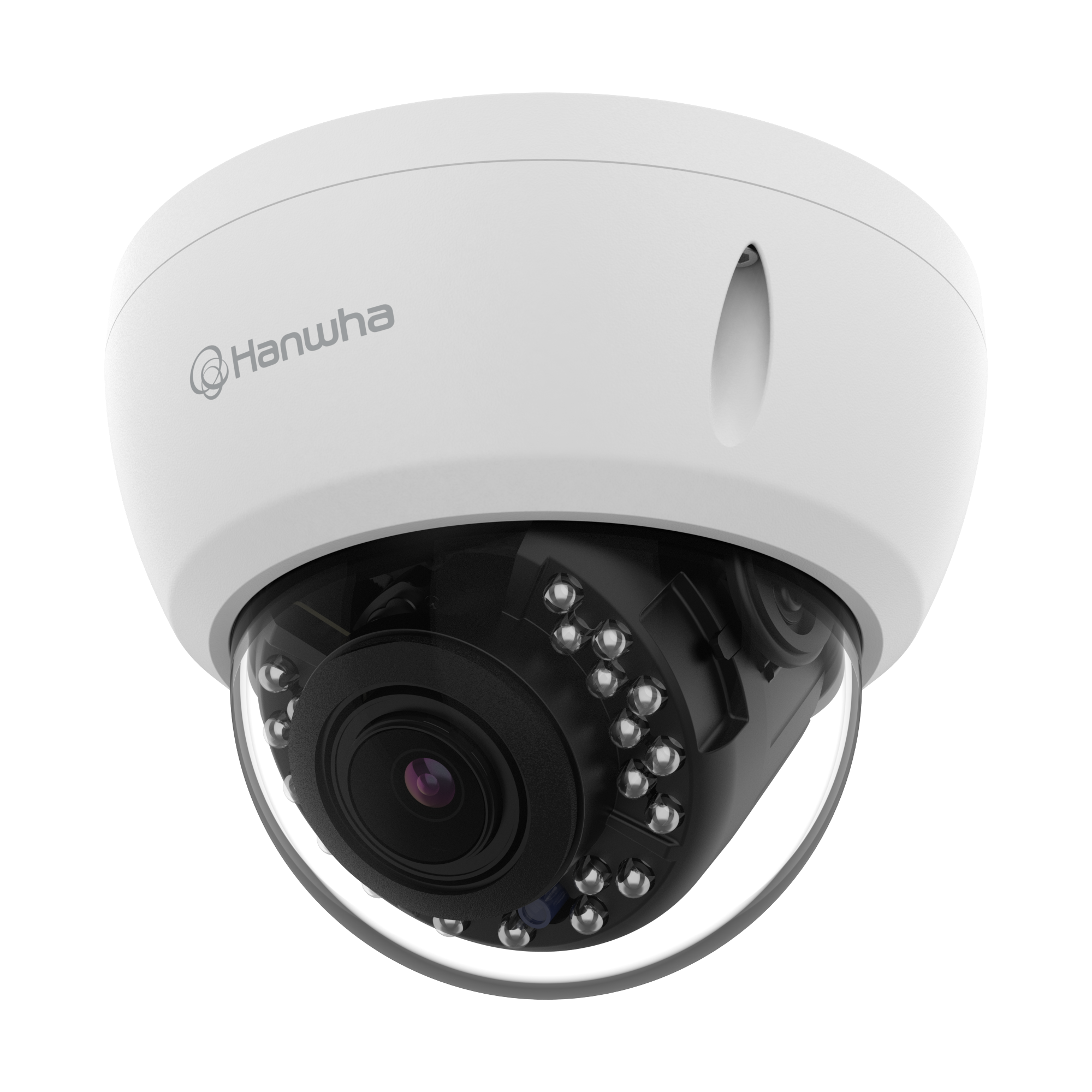

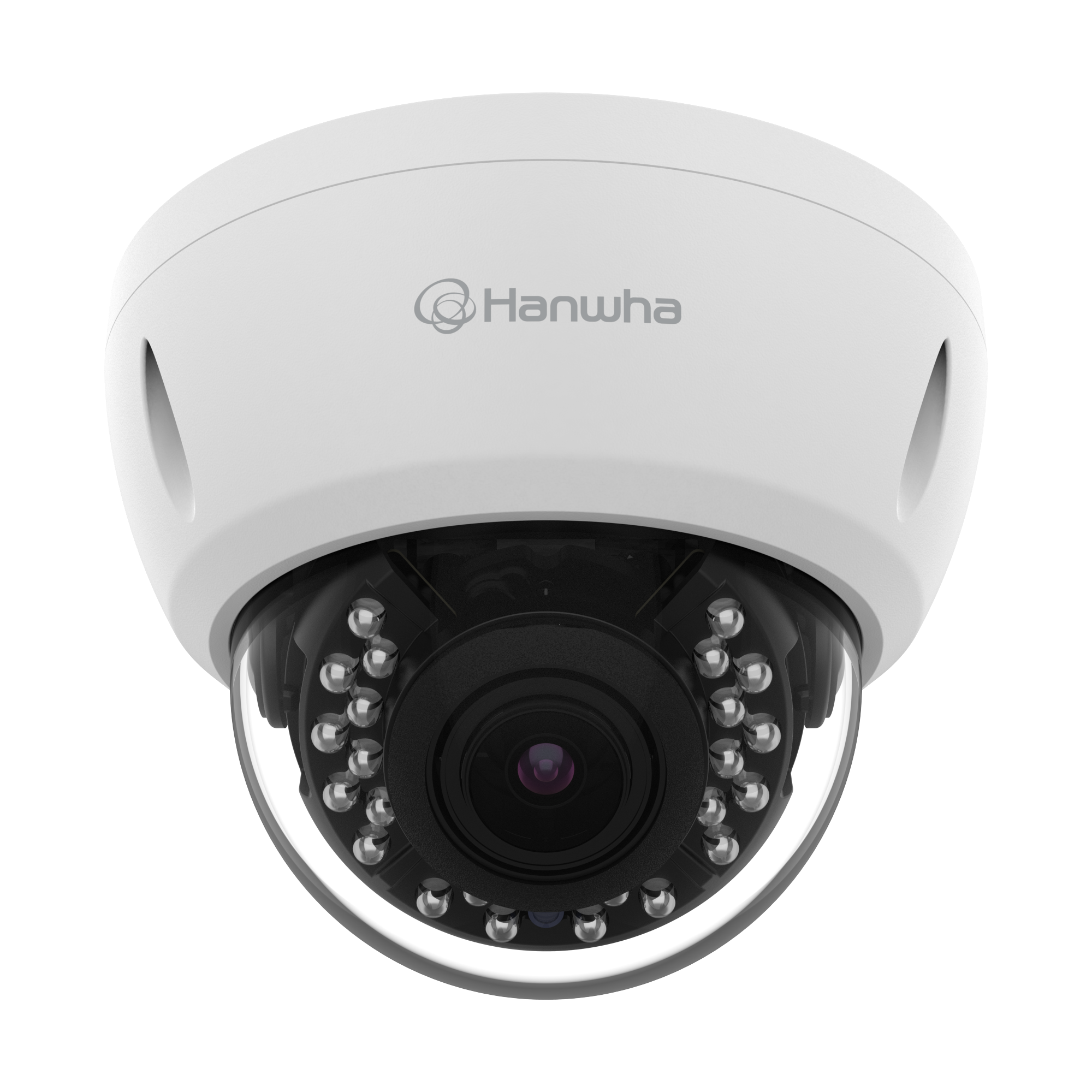

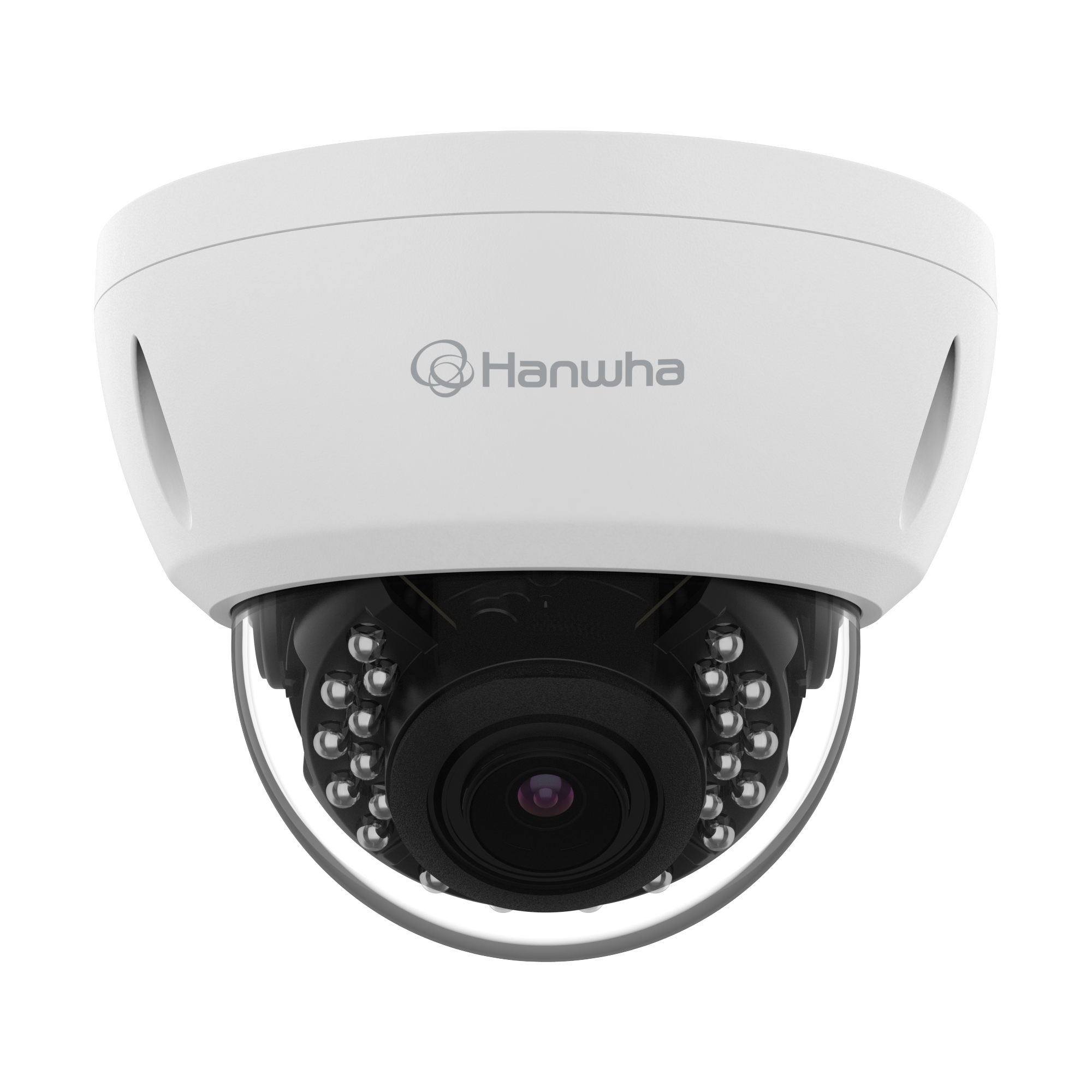

Hanwha Vision ACV-8080R 5MP Analog HD IR Outdoor Dome Security Camera
194.00$
In stock
Hanwha Vision ACV-8080R 5MP Analog HD IR Outdoor Dome Security Camera
Key Features
- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 4.3mm~10.5mm (2.44x) motorized varifocal
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Video
| Imaging Device | Size | 1/2.5″ |
| Type | CMOS | |
| Resolution | 2592×1944, 2560×1440 | |
| Max. Framerate(NTSC/PAL) | 30fps | |
| Min. Illumination | Color(1/30sec, 30IRE) | 0.4 |
| BW(1/30sec, 30IRE) | 0.04 | |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable | |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) | |
Lens
| Focal Length (mm) | 4.3~10.5 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 1.6 | |
| Angular Field of View | Horizontal | 88°~34° |
| Vertical | 63°~26° | |
| Diagonal | 112°~43° | |
| Min. Object Distance | 0.8m(2.62ft) | |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | 2D+3DDNR | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC | |
| Electronic Shutter | Mode | Auto |
| Speed Range | 1/30~1/50,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| IR Viewable Length | 20m(65.62ft) | |
| Coaxial Protocol | ACP, TCP, CCP, CVBS | |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | 12VDC | |
| Power Consumption | 12VDC | Max 7.2W, Typical 5.8W |
Mechanical
| Color | White | |
| Material | Aluminum, PC(Polycarbonate) | |
| Product Dimensions | ø132x103mm(ø5.20×4.06″) | |
| Product Weight | 550g(1.21lb) | |
