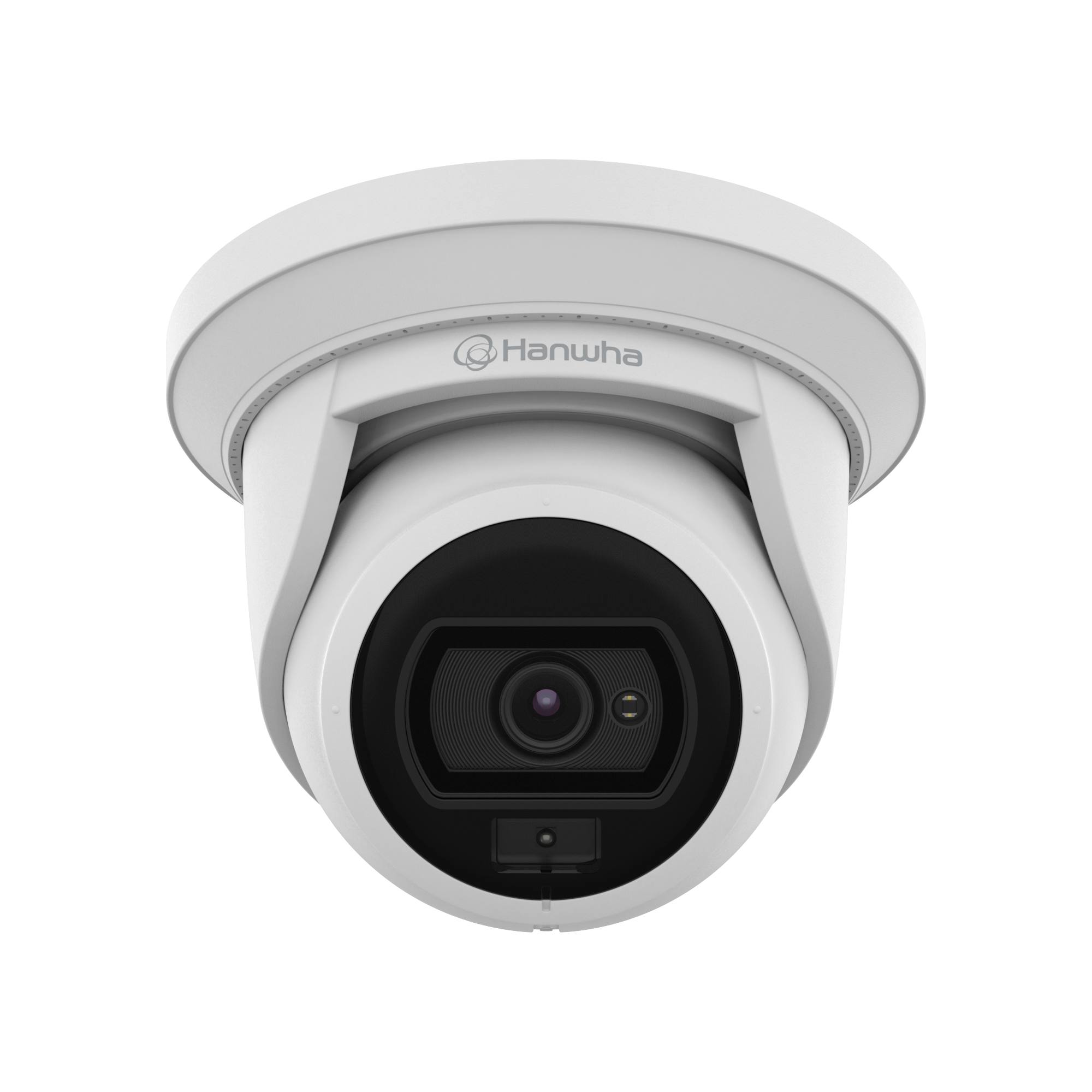

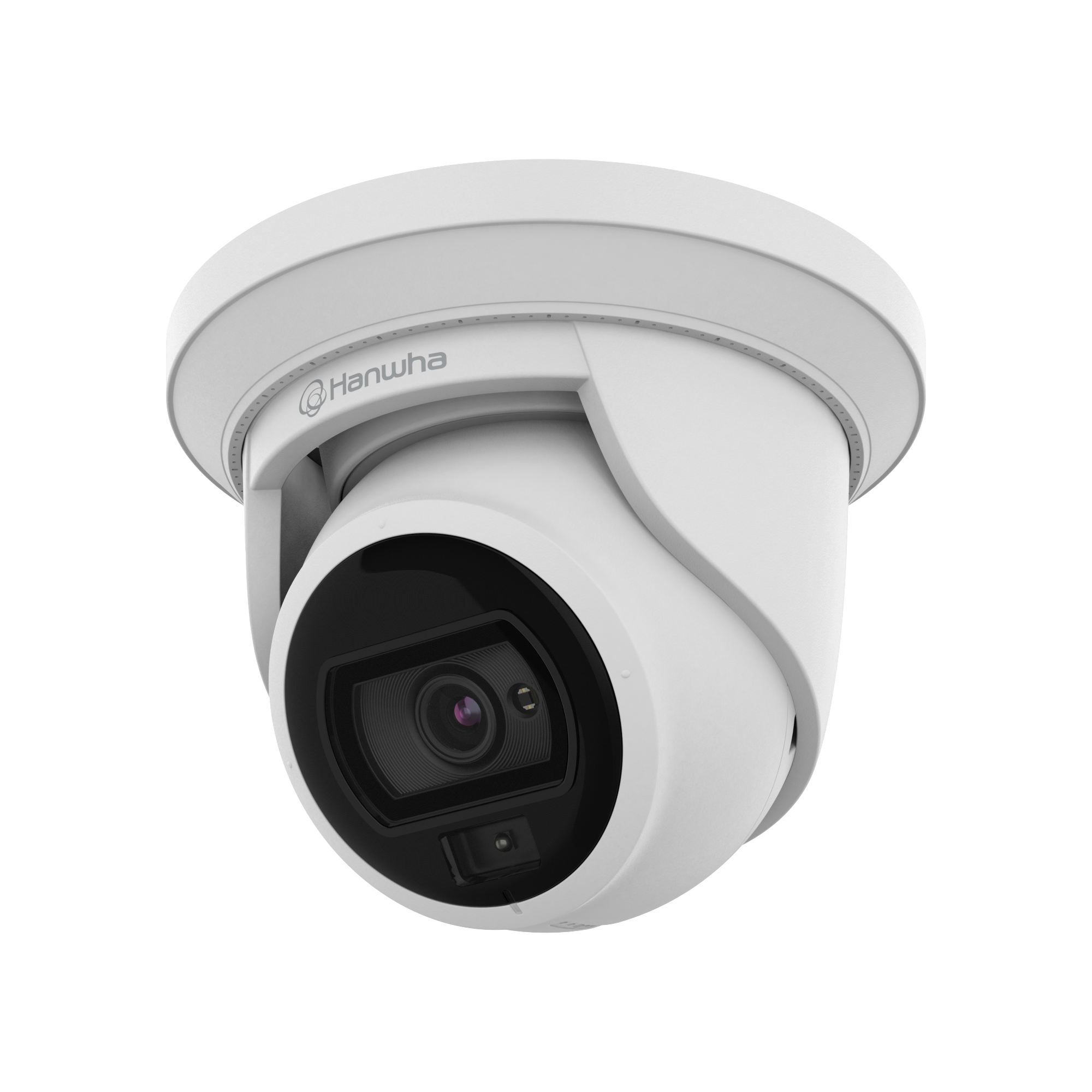

Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera
310.00$
SKU
:
ANE-L7012L
Share
:
Secure Checkout
Fast Delivery
Compatible Products
FAQs
Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera
310.00$
Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera
Key features
- 4 megapixels (2560 x 1440) resolution
- Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2°
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG triple codec
- Color only, WDR (120dB)
- virtual area (intrusion/enter/exit), virtual line (crossing/direction), motion detection, tampering
- Micro SD/SDHC memory slot (Max. 32GB)
- PoE powered
- Hallway view, WiseStream II support
- IP66, IK10 support
video
| Imaging device | Size | 1-2.8″ |
| type | CMOS | |
| resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. frame rate | H.265/H.264 | 30 fps/25 fps (60 Hz/50 Hz) |
| MJPEG | 15 fps (at 4 MP Max. 2 fps) | |
| Minimum illumination (lux) | Color (1/30 second, 30 IRE) | 0.05 |
lens
| Focal length (mm) | 3 | |
| Maximum aperture ratio (F-number) | Far | 1.2 |
| Angle of view | Horizontal | 97° |
| Vertical | 53° | |
| Diagonal | 113° | |
| Minimum object distance | 1.1m (3.6ft) | |
| Focus control | Firmly | |
Pan / Tilt / Rotate
| Swivel / tilt / rotation range | Sway | 0°~350° |
| Tend | 0°~75° | |
| Turn | 0°~360° |
Operational
| Day & Night | (Electric) car | |
| Backlight compensation | BLC, WDR, SSDR | |
| Wide dynamic range (dB) | 120 | |
| Digital noise reduction | SSNR | |
| Motion detection | Crowd | 4EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 6ea |
| form | Rectangular zones | |
| Reinforcement | Low, Medium, High | |
| White balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic lock | mode | Minimum, Maximum, Anti-flicker |
| Speed range | 1/5–1/12,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) | |
| Alarm trigger | Analysis, disconnect network connection | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Transfer: PTZ preset, light alarm | |
| Light type | Warm color | |
| Light visible length | Warm light | 20m (65.61ft) |
Analyses
| Analysis events | Normal | Defocus detection, motion detection, manipulation, virtual area (entry/entry/exit), virtual line (intersection, direction) |
Network
| Ethernet | RJ-45 (10/100 BASE-T) | |
| Video compression | H.265/H.264: Main/High, MJPEG | |
| Intelligent codec | Manual, WiseStream II | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multi-streaming | Up to 3 profiles | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM SM | |
| Application Programming Interface | ONVIF | S, G, T |
| Other | SUNAPI (HTTP API) | |
| Direct cloud connection | Optional (requires gateway) | |
Security
| Operating system / firmware protection | Encrypted firmware | |
| User authentication | Digest authentication, preventing brute-force attacks | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Access control | IP-based access control | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | Encrypt SD card partition (AES-256) | |
Generally
| memory | R.A.M. | 512 MB |
| Flash | 256 MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 128 GB x 1 slot |
Environment & Electrics
| Operating conditions | temperature | -30°C~+55°C(-22°F~+131°F) |
| humidity | 0–95% relative humidity (non-condensing) | |
| Other | The commissioning should take place at temperatures above -20 °C. | |
| Storage conditions | temperature | -30°C~+55°C(-22°F~+131°F) |
| humidity | 0–95% relative humidity (non-condensing) | |
| Input voltage | PoE (IEEE802.3af, Class 3) | |
| electricity consumption | PoE | Max. 7.6W, typical 4.2W |
Mechanically
| Color | White | |
| material | Aluminum, plastic | |
| RAL code | RAL9003 | |
| Product dimensions | ø125.0×87.4mm(ø4.92×3.44″) | |
| Product weight | 620g (1.37lb) | |
| Compatible gear box | Singles, Doubles, 4″ Octagon | |
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
