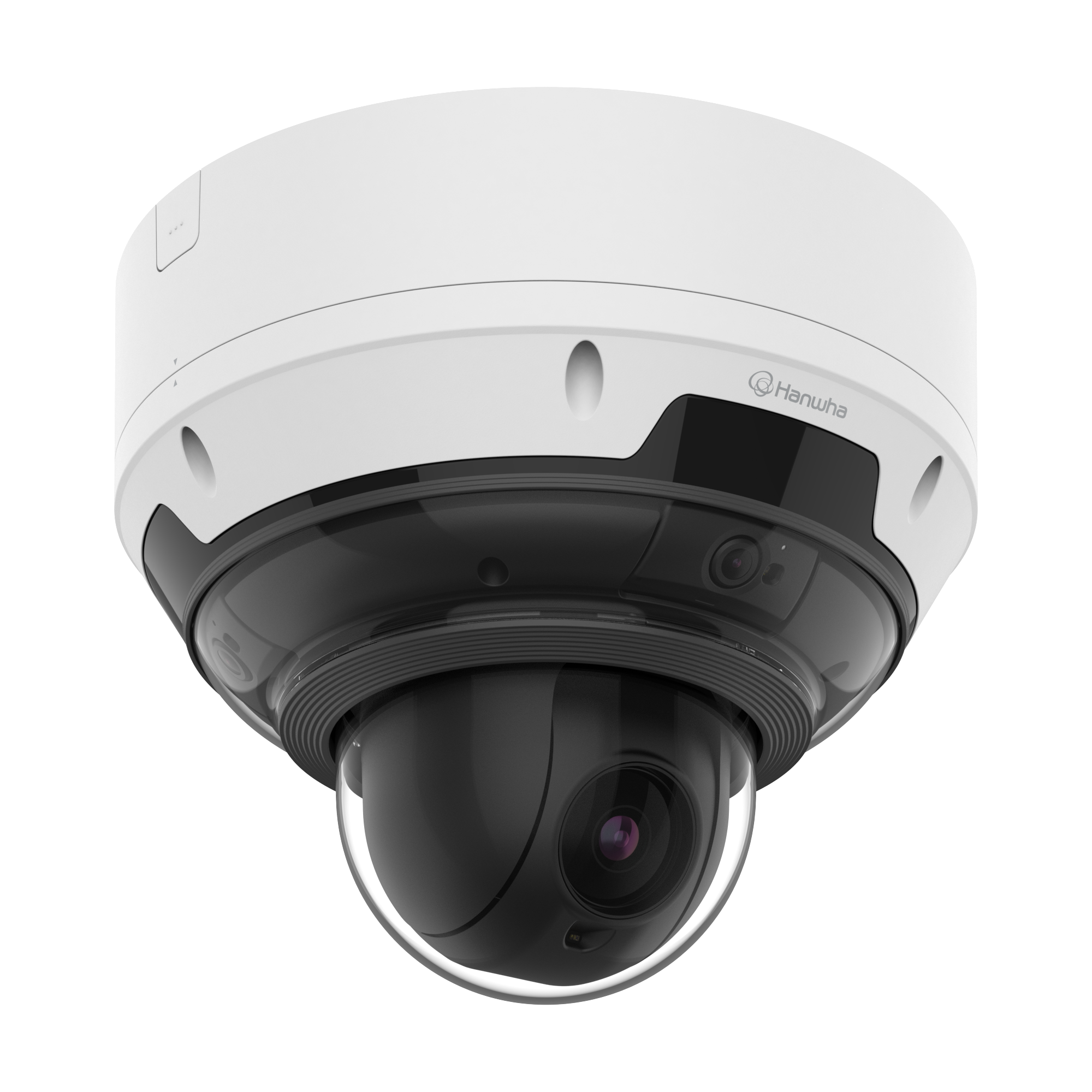

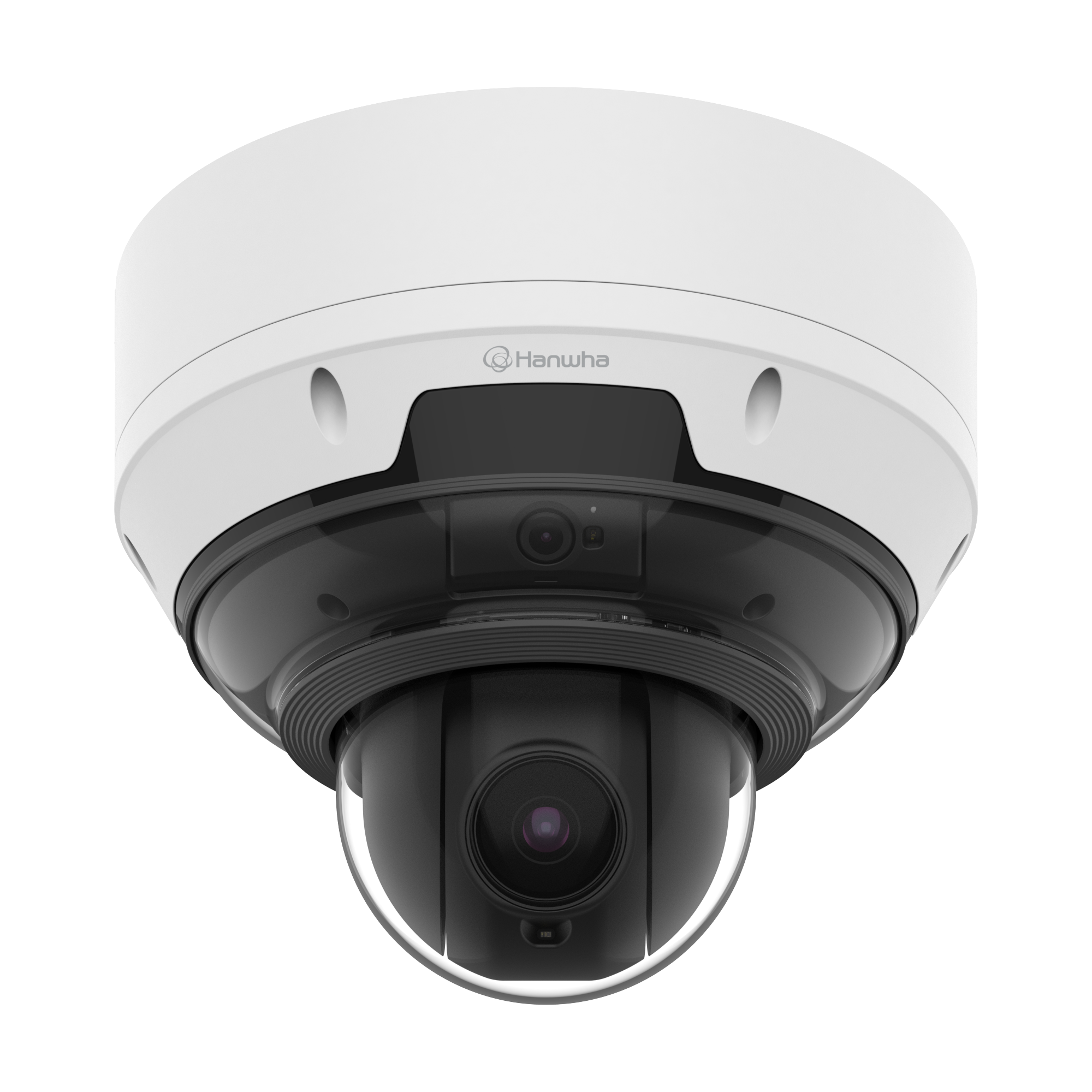

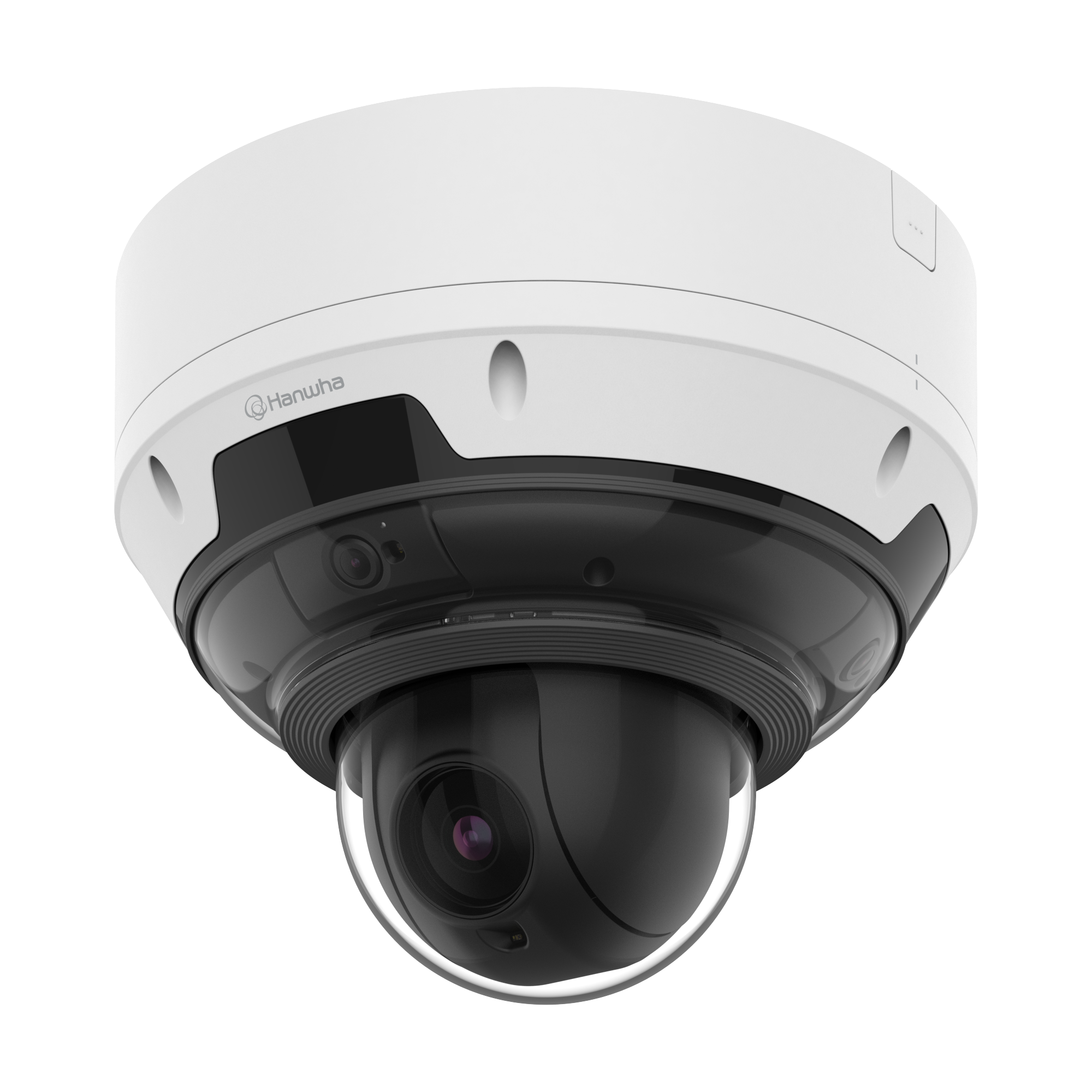

Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera
1,600.00$
Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera
Key Features
- 4MP x 18x PTZ
- AI Based Analytics and Business Intelligence
- Auto calibration
- Supports Smart Zoom (Advanced Handover)
- WiseStream (Based on AI engine)
Video
| CH1 | CH2 | CH3 | CH4 | ||
| Imaging Device | Size | 1/2.8″ | – | – | – |
| Type | CMOS | – | – | – | |
| Resolution | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | 2592×1520, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Framerate | H.265/H.264 | 30fps | 30fps | 30fps | 30fps |
| MJPEG | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.08 | 0.08 | 0.08 | 0.05 |
| BW(1/30sec, 30IRE) | 0.008 | 0.008 | 0.008 | 0.005 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. | – | – | – | |
Lens
| CH1 | CH2 | CH3 | CH4 | ||
| Focal Length (mm) | 2.4 | 2.4 | 2.4 | 5.42~98.29 | |
| Zoom Ratio | Optical | – | – | – | 18x |
| Digital | – | – | – | 32x | |
| Max Aperture Ratio (F number) | Wide | 2.0 | 2.0 | 2.0 | 2.0 |
| Tele | – | – | – | 3.27 | |
| Angular Field of View | Horizontal | 123° | 123° | 123° | 53.1°~3.39° |
| Vertical | 91° | 91° | 91° | 31.75°~1.98° | |
| Diagonal | 159° | 159° | 159° | 60.8°~3.92° | |
| Min. Object Distance | 0.5m(1.64ft) | 0.5m(1.64ft) | 0.5m(1.64ft) | 5.0m(16.4ft) | |
| Focus Control | Fixed | Fixed | Fixed | Oneshot AF, Focus save | |
| Lens Type | Fixed iris | Fixed iris | Fixed iris | Adaptive P iris | |
Pan / Tilt / Rotate
| CH1 | CH2 | CH3 | CH4 | ||
| Pan Speed | Preset | – | – | – | Max. 600°/sec |
| Manual | – | – | – | 0.024°/sec~250°/sec | |
| Tilt Speed | Preset | – | – | – | Max. 500°/sec |
| Manual | – | – | – | 0.024°/sec~250°/sec | |
| Sequence | – | – | – | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | – | – | – | ±0.2° | |
Operational
| CH1 | CH2 | CH3 | CH4 | ||
| Direction Indicator | – | – | – | Support | |
| Day & Night | Auto(ICR) | – | – | – | |
| Backlight Compensation | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | – | – | – | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | – | – | – | |
| Digital Image Stabilization | – | – | – | Support | |
| Defog | Support | – | – | – | |
| Motion Detection | Quantity | 8ea | – | – | – |
| Shape | 8point Polygonal zones | – | – | – | |
| Privacy Masking | Quantity | 12ea | 12ea | 12ea | 32ea |
| Shape | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | Low, Middle, High | Low, Middle, High | Off, Max gain, Manual | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| LDC | Support | Support | Support | – | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) | – | – | – |
| Speed Range | 1/5~1/12,000sec | – | – | – | |
| Video Rotation | – | – | – | Flip, Mirror | |
| Alarm Interface | Others | Support alarm I/O via optional I/O box | – | – | – |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | – | – | – | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom | – | – | – | |
| Audio In | Support via optional I/O box | – | – | – | |
| Audio Out | Support via optional I/O box | – | – | – | |
| Light Type | IR LED | IR LED | IR LED | – | |
| Light Viewable Length | IR | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | – |
| IR Wavelength | 850nm | 850nm | 850nm | – | |
| Auto Tracking | – | – | – | Object auto tracking(Person/Vehicle), Target lock tracking | |
Analytics
| CH1 | CH2 | CH3 | CH4 | ||
| Classified Object Type | Person, Face, Vehicle, License plate | – | – | – | |
| Attributes | Person | Upper/Lower clothes color | Upper/Lower clothes color | Upper/Lower clothes color | – |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle) | |
| Thumbnail | BestShot | BestShot | BestShot | DetectionShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Fog detection, Audio detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | – |
Network
| CH1 | CH2 | CH3 | CH4 | ||
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | – | – | – | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | – | – | – | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | – | – | – | |
| Streaming | Unicast | Up to 5 users | Up to 5 users | Up to 5 users | Up to 5 users |
| Multicast | Support | Support | Support | Support | |
| Multiple Streaming | Up to 4 profiles | Up to 4 profiles | Up to 4 profiles | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) | – | – | – | |
| Application Programming Interface | ONVIF | S, G, T, M | – | – | – |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | – | – | – | |
| Direct Cloud Connection | Support | – | – | – | |
Security
| CH1 | CH2 | CH3 | CH4 | ||
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | ||||
| User authentication | Digest authentication, Prevent brute-force attack | ||||
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | ||||
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | ||||
| Access Control | IP-based access control | ||||
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | ||||
| Audit | Access / System / Event Log management | ||||
| Device ID | Device certificate(Hanwha Vision Root CA) | ||||
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | ||||
| Supply Chain Security | SBOM | ||||
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) | ||||
General
| CH1 | CH2 | CH3 | CH4 | ||
| SoC | Type | Wisenet 7 + NT98690 | – | – | – |
| Memory | RAM | 8GB | 8GB | 8GB | 4GB |
| Flash | 8GB | 8GB | 8GB | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) | – | – | – |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. | – | – | – |
Environmental & Electrical
| CH1 | CH2 | CH3 | CH4 | ||
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) | |||
| Humidity | 0~100% RH(condensing) | ||||
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | ||||
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) | |||
| Humidity | 0~90% RH(non-condensing) | ||||
| EPA(Effective Projected Area) | 0.038㎡ | ||||
| Input Voltage | PoE++(IEEE802.3bt type3, Class6) | ||||
| Power Consumption | PoE | 42W | |||
Mechanical
| CH1 | CH2 | CH3 | CH4 | ||
| Color | White | ||||
| Material | Aluminum, Hard-coated dome | ||||
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) | |||
| RAL Code | RAL9003 | ||||
| Product Dimensions | ø251.4x212mm(ø9.9×8.35″) | ||||
| Product Weight | 4,800g(10.58lb) | ||||
| Compatible Conduit Hole | 19.1mm(3/4″)(M25) | ||||
| Compatible Gang Box | Single, Double, 4″ Octagon, Square | ||||
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 1 × 5 in |
