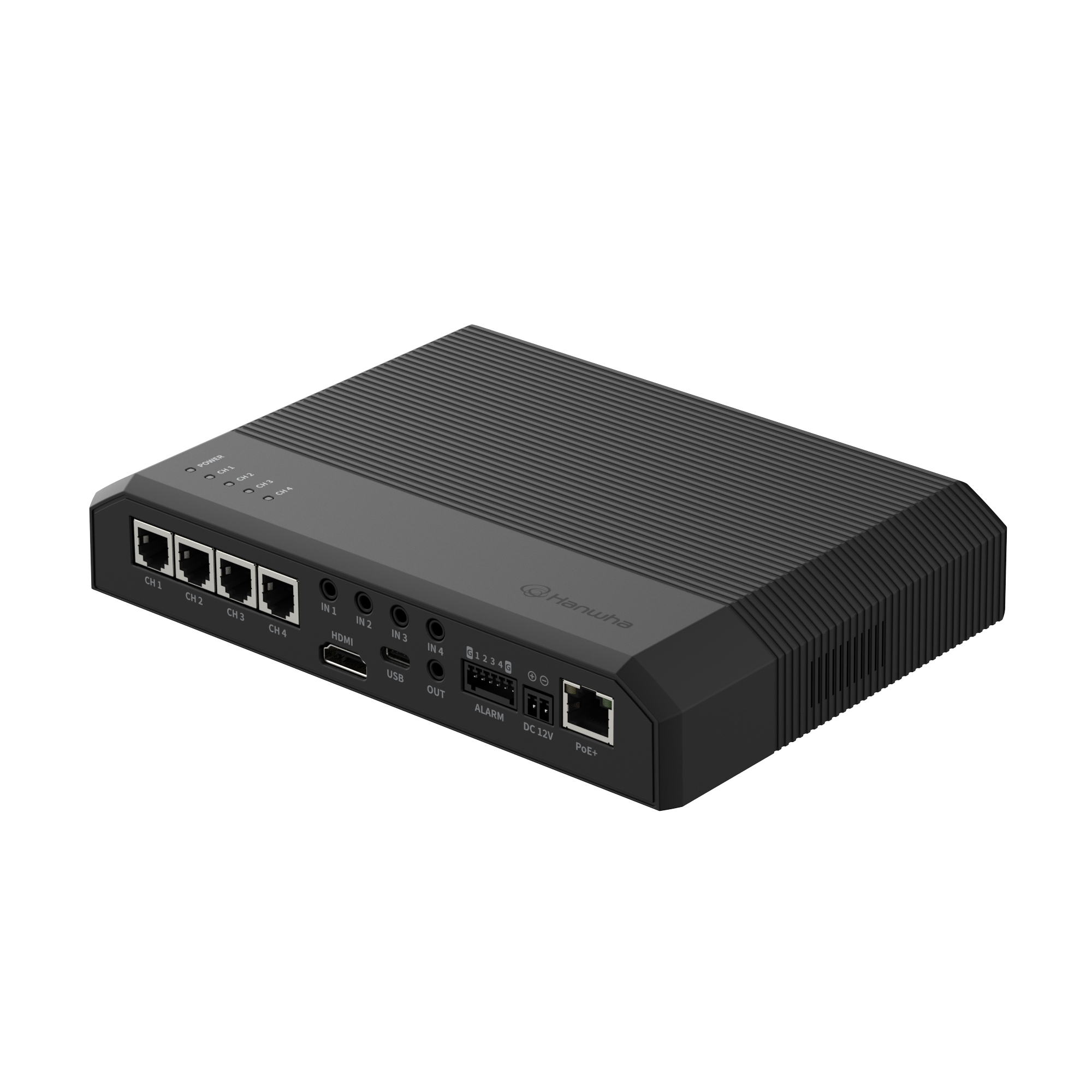

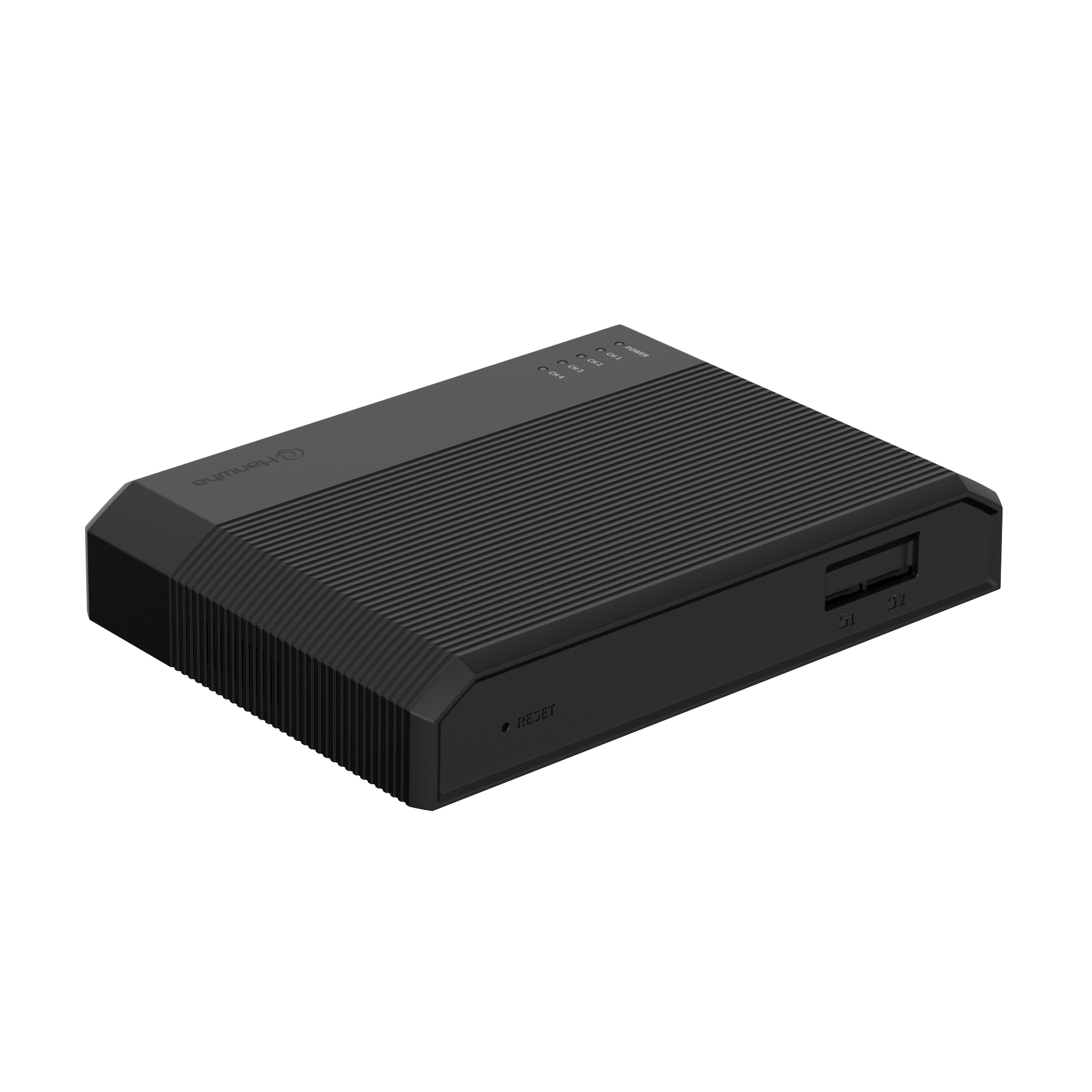

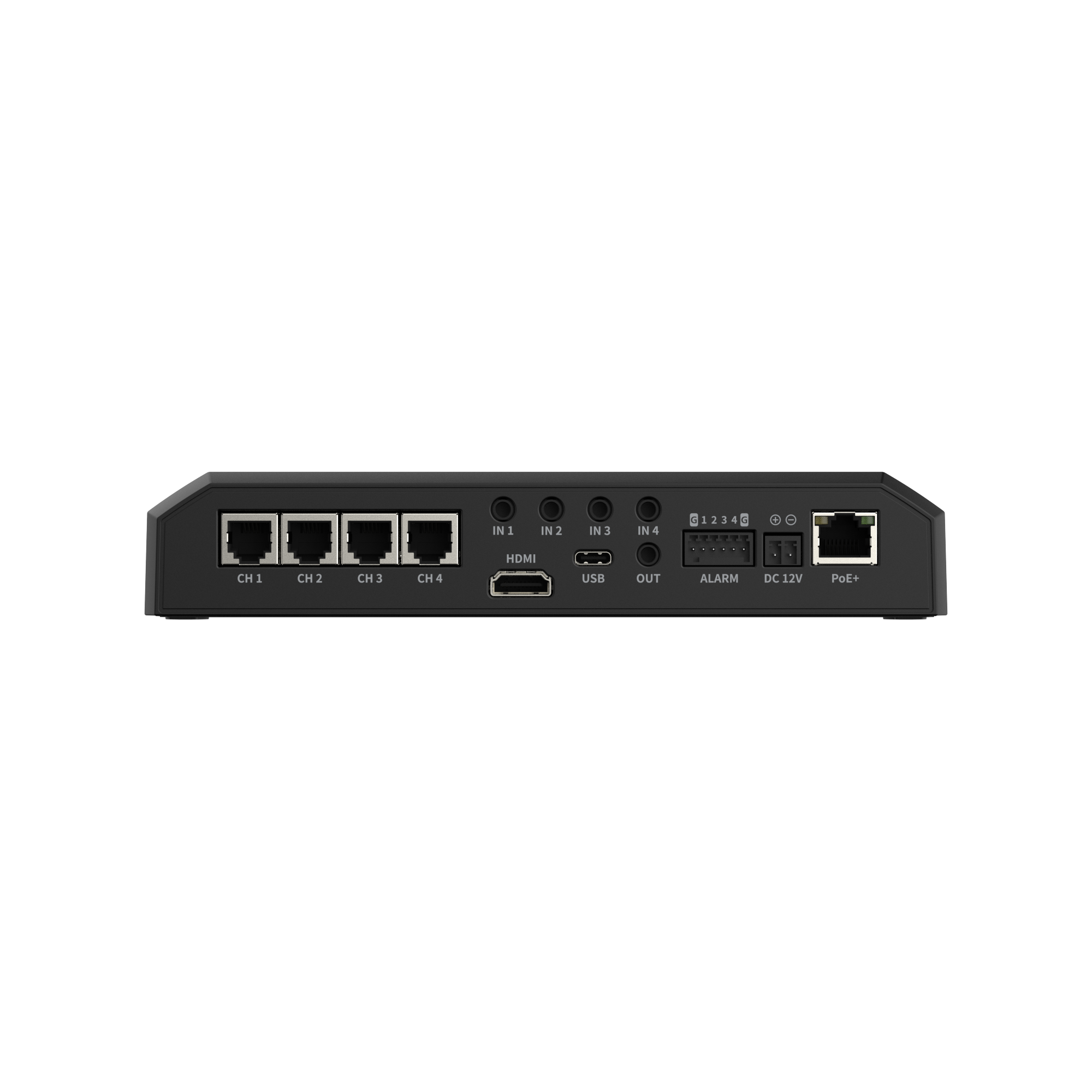

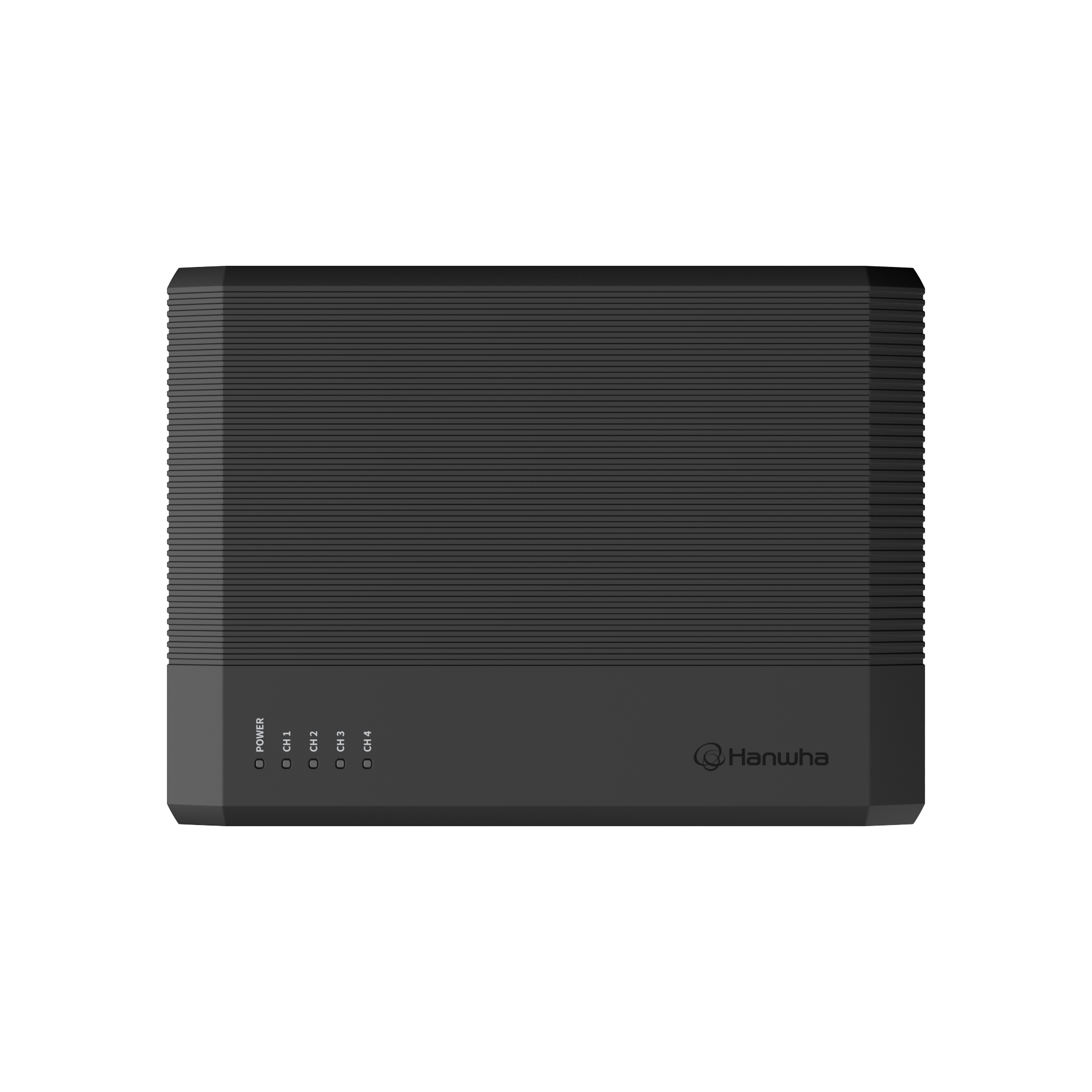

Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera
1,600.00$
Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera
Key features
- Object recognition – person/face/vehicle/license plate
- IVA – Virtual Line/Area, Enter/Exit, Stay, Direction, Intrusion
- People and vehicle counting (based on AI)
- Shock detection with gyroscope sensor
- Business Intelligence – People/Vehicle Counting
- Supports 4 audio inputs / 1 audio output
- WiseStream (based on AI engine) Secure Element – FIPS 140-3 Level 3, CC EAL6+
video
| resolution | 2592×1944, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240, 320×180 | |
| Max. frame rate | H.265/H.264 | 30 fps/25 fps (60 Hz/50 Hz) |
| MJPEG | 30 fps | |
| Video output | USB: Micro-USB Type C, HDMI (Single/Quadruple view) | |
lens
| Optional lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WDA, SLA-F2480WA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA, SLA-T4615VA, SLA-T2480HA | |
Operational
| Day & Night | (Electric) car | |
| Backlight compensation | BLC, WDR, SSDR | |
| Wide dynamic range (dB) | 120 | |
| Digital noise reduction | WiseNR II (based on AI engine), SSNR V | |
| Digital image stabilization | Support | |
| Defogging | Support | |
| Motion detection | Crowd | 8EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 16ea |
| form | 4-point square zones | |
| Color / Option | Grey, Green, Red, Blue, Black, White | |
| Reinforcement | Low, Medium, High | |
| White balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic lock | mode | Minimum, Maximum, Anti-flicker |
| Speed range | 2–1/12,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) – Each channel separately | |
| Alarm interface | Entrance/Exit | 4 configurable I/O ports |
| Alarm trigger | Analytics, Disconnect network connection, Alarm input, App event, Schedule, MQTT subscription | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing | |
| Audio input | 4 x Selectable (Microphone input/Line-In) | |
| Audio output | Line-Out | |
Analyses
| Classified object type | Person, face, vehicle, license plate | |
| Attribute | person | Top/bottom dress color |
| vehicle | Type (car, bus, truck, motorcycle, bicycle), color | |
| Preview image | BestShot | |
| Analysis events | Based on AI engine | Object detection, virtual line (intersection/direction), virtual area (loitering/intrusion/entering/exiting/appearing/disappearing) |
| Normal | Defocus detection, motion detection, tamper detection, audio detection, shock detection | |
| Business Intelligence | Based on AI engine | People counting, queue management, heat map, vehicle counting |
Network
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) | |
| Video compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio compression | G.711 (PCM): 8 kHz (64 kbit/s), G.726 (ADPCM): 8 kHz (16/24/32/40 kbit/s), AAC-LC: 16 kHz (48 kbit/s) | |
| Intelligent codec | WiseStream (based on AI engine) | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multi-streaming | Up to 4 profiles | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, SMTP (StartTLS) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Other | SUNAPI (HTTP API), Hanwha Vision Open Platform | |
Security
| Operating system / firmware protection | Encrypted firmware, Secure Boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Access control | IP-based access control | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | Encrypt SD card partition (AES-256), Secure Element | |
| Security certificate | Safe element (FIPS 140-3 Level 3, CC EAL6+), ETSI EN 303 645, IEC 62443-4-1 | |
Generally
| SoC | Type | NT98690 |
| memory | R.A.M. | 8 GB |
| Flash | 8 GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1 TB x 2 slots (2 TB total) |
Environment & Electrics
| Operating conditions | temperature | -10°C~+45°C(+14°F~+113°F) |
| humidity | 0–95% relative humidity (non-condensing) | |
| Storage conditions | temperature | -50°C~+60°C(-58°F~+140°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| Input voltage | PoE+ (IEEE802.3at, Class 4), 12 VDC | |
| electricity consumption | PoE | Max. 25.5W, typical 23.8W |
| 12 VDC | Max. 23.1W, typical 21.5W | |
Mechanically
| Color | Black | |
| material | plastic | |
| Materials management | Explanation | RoHS (EU RoHS Directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict Minerals Directive (Section 1502 of the US Dodd-Frank Act) |
| RAL code | RAL9005 | |
| Product dimensions | 200(W)x37(H)x146(D)mm(7.87×1.46×5.75″) | |
| Product weight | 1.015g (2.24lb) | |
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 1 × 5 in |
