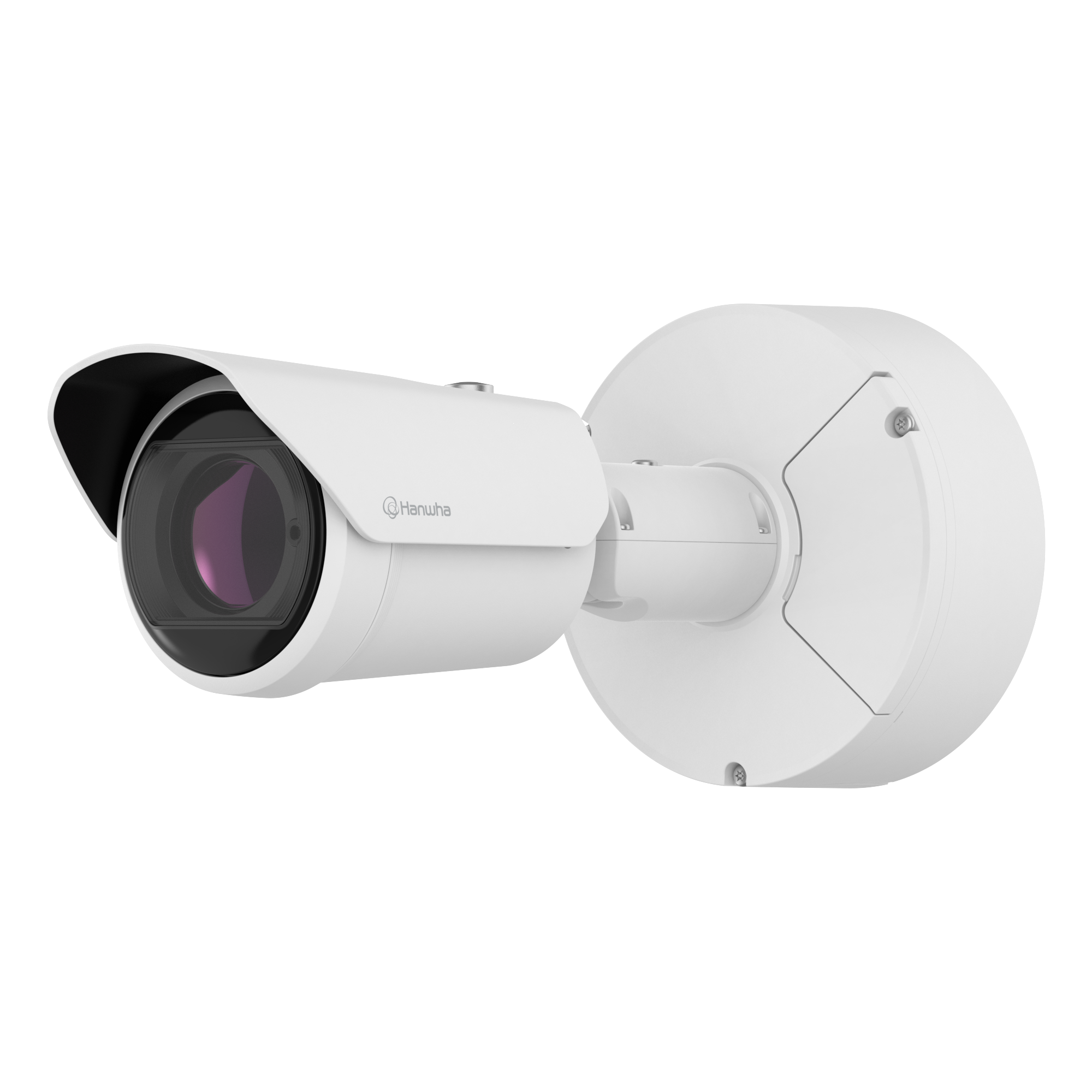

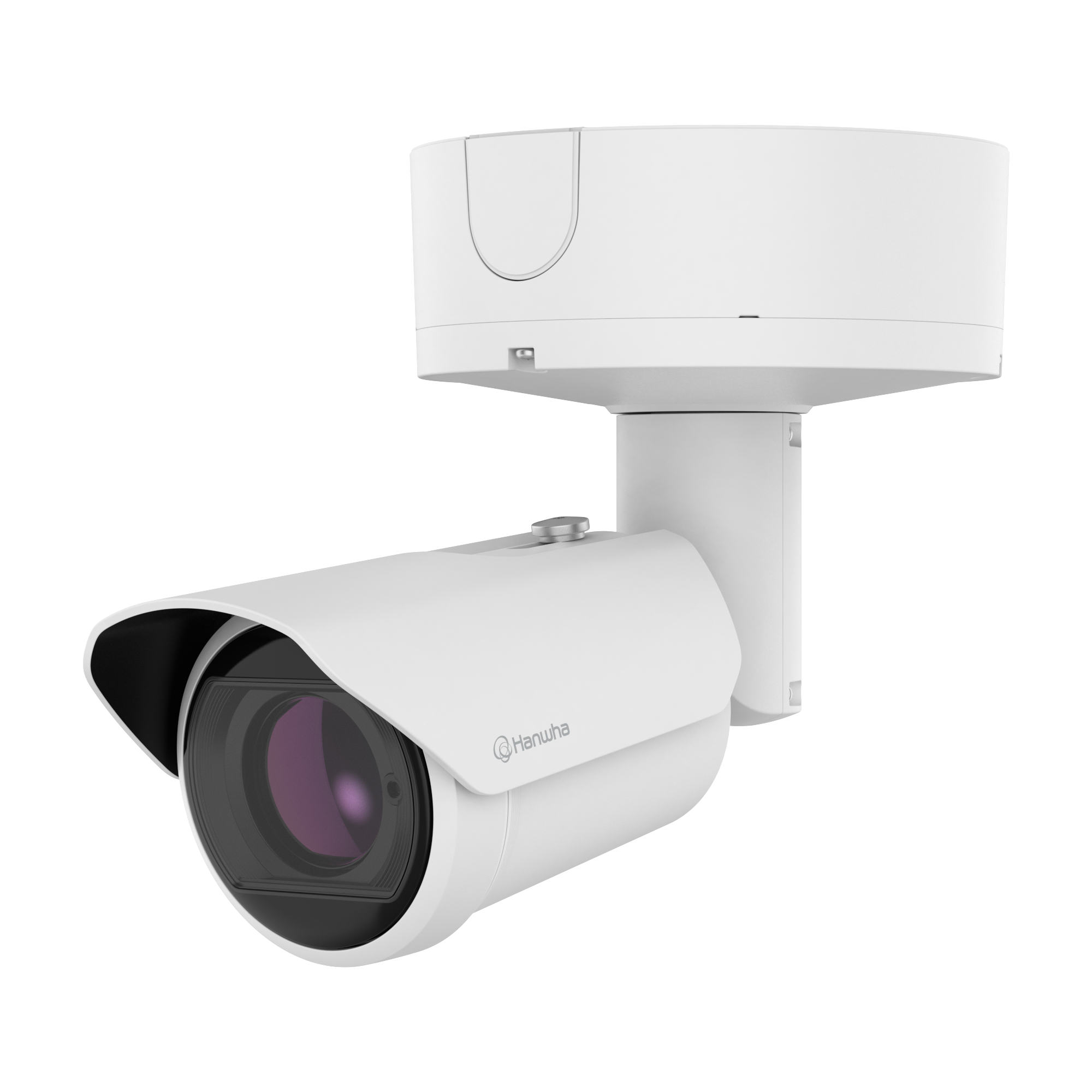

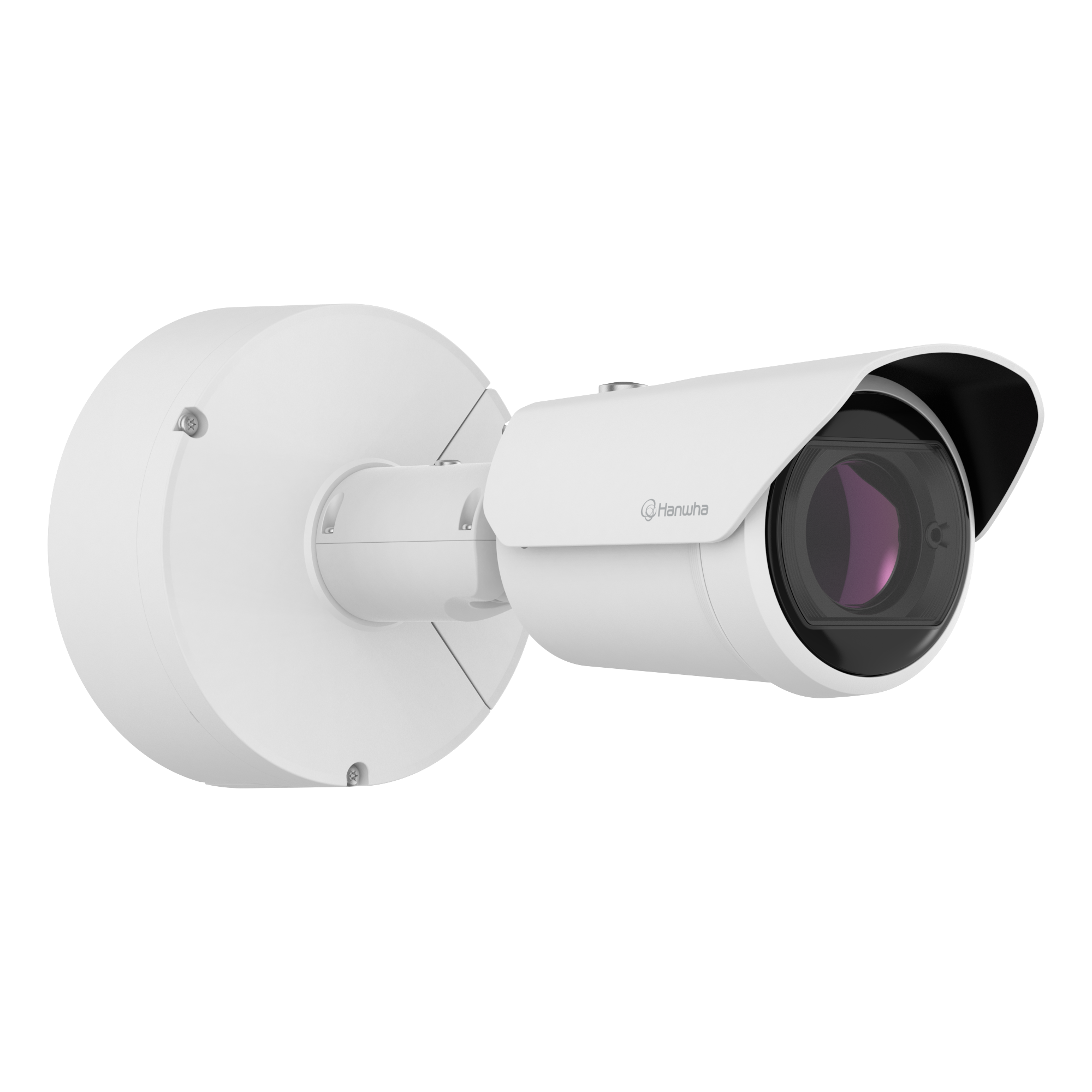

Hanwha Vision PNO-A9092R 8MP IR AI IP Bullet Camera
2,300.00$
SKU
:
PNO-A9092R
Share
:
Secure Checkout
Fast Delivery
Compatible Products
FAQs
Hanwha Vision PNO-A9092R 8MP IR AI IP Bullet Camera
2,300.00$
Hanwha Vision PNO-A9092R 8MP IR AI IP Bullet Camera
Key features
- Maximum 8MP resolution (1/1.2” sensor)
- 15~50mm (3.33x) motorized varifocal
- Long range WiseIR distance up to 120m (393.7ft)
- Color: 0.015Lux (F1.5, 1/30sec, 30IRE)
- BW: 0.0015Lux (F1.5, 1/30sec, 30IRE)
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
- Business intelligence based on AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
- Support BestShot and full attributes
- Support dynamic privacy masking
- AI-based image enhancement
- extremeWDR, WiseNRⅡ (Based on AI engine), WiseStream (Based on AI engine)
video
| Imaging device | Size | 1-1.2″ |
| type | CMOS | |
| resolution | 3840×2160, 3328×1872, 3072×1728, 2688×1512, 2592×1944, 2560×1440, 1920×1080, 1600×1200, 1280×960, 1280×720, 1024×768, 800×600, 640×480, 640×360, 320×240, 320×180 | |
| Max. frame rate | H.265/H.264 | 30 fps/25 fps (60 Hz/50 Hz) |
| MJPEG | 30 fps (at 8 MP Max. 5 fps) | |
| Minimum illumination (lux) | Color (1/30 second, 30 IRE) | 0.015 |
| B/W (1/30 second, 30 IRE) | 0.0015 | |
| Video output | USB: Micro-USB Type C | |
lens
| Focal length (mm) | 15-50 | |
| Zoom ratio | Visually | 3.33x |
| Maximum aperture ratio (F-number) | Far | 1.67 |
| Tele | 3.5 | |
| Angle of view | Horizontal | 42.7°~12.6° |
| Vertical | 24.1°~7.2° | |
| Diagonal | 49°~14.3° | |
| Minimum object distance | 2.5m (8.2ft) | |
| Focus control | Simple focus | |
| Lens type | DC car shutter with Hall sensor (IR corrected) | |
Pan / Tilt / Rotate
| Swivel / tilt / rotation range | Sway | 0°~360° |
| Tend | 0°~90° | |
| Turn | 0°~180° |
Operational
| Day & Night | Auto (ICR) | |
| Backlight compensation | BLC, HLC, WDR, SSDR | |
| Large dynamic range (dB) | 120 | |
| Digital noise reduction | WiseNR II (based on AI engine), SSNR V | |
| Digital image stabilization | Support | |
| Defogging | Support | |
| Motion detection | Crowd | 8EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 32ea |
| form | 8-point polygon zones | |
| Color / Option | Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Dynamic privacy masking: Color / Option | Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Reinforcement | Off, Max. Reinforcement, Manual. | |
| White balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support (fill/stretch mode) | |
| Electronic lock | mode | Minimum, Maximum, Anti-Flicker, Prefer Shutter Control (based on AI engine) |
| Speed range | 2–1/30,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) | |
| Alarm interface | Entrance/Exit | 2 configurable I/O ports |
| Other | 12 VDC output | |
| Alarm trigger | Analysis, network disconnection, alarm input, schedule, MQTT subscription, chassis tampering, day/night, memory interruption | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing | |
| Audio input | Selectable (microphone input/line-in) | |
| Audio output | Line-Out | |
| Light type | IR LED | |
| Light visible length | IR | WiseIR 120m (393.7ft) |
| IR wavelength | 850 nm | |
Analyses
| Classified object type | Person, face, vehicle, license plate | |
| Attribute | person | Top/bottom dress color, gender, bag |
| vehicle | Type (car, bus, truck, motorcycle, bicycle), color | |
| Face | Age, gender, face mask, glasses | |
| Similarity Search | Support | |
| Preview image | BestShot | |
| Analysis events | Based on AI engine | Object detection, virtual line (intersection/direction), motion detection, face mask detection, distance detection, slip and fall detection, virtual area (loitering/intrusion/entering/exiting/appearing/disappearing) |
| Normal | Defocus detection, manipulation, audio detection, shock detection | |
| Business Intelligence | Based on AI engine | People counting, queue management, heat map, vehicle counting, mass counting |
Network
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) | |
| Video compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio compression | G.711 (PCM): 8 kHz (64 kbit/s), G.726 (ADPCM): 8 kHz (16/24/32/40 kbit/s), AAC-LC: 16 kHz (48 kbit/s), OPUS: 16 kHz (64 kbit/s) | |
| Intelligent codec | WiseStream (based on AI engine) | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multi-streaming | Up to 5 profiles, support for 3 virtual channels | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Other | SUNAPI (HTTP API), Hanwha Vision Open Platform | |
| Direct cloud connection | bracket | |
Security
| Operating system / firmware protection | Encrypted firmware, Secure Boot, Signed firmware | |
| User authentication | Digest authentication, preventing brute-force attacks | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Access control | IP-based access control, MAC-based access control, automatic logout | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | Encrypt SD card partition (AES-256), Secure Element | |
| Supply chain security | SBOM | |
| Security certificate | Safe element (FIPS 140-3 Level 3, CC EAL6+), ETSI EN 303 645 | |
Generally
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| memory | R.A.M. | 4 GB |
| Flash | 8 GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1 TB x 2 slots (2 TB total) |
| Edge Storage (OnCloud) | Micro SD/SDHC/SDXC | Max. 1 TB x 2 slots (2 TB total) *Hanwha Vision brand microSD cards have been certified and recommended for OnCloud Edge recording. |
Environment & Electrics
| Operating conditions | temperature | -50°C~+55°C(-58°F~+131°F) |
| humidity | 0–100% relative humidity (condensing) | |
| Other | +74 °C (+165 °F) (Max.) based on NEMA-TS 2 (2.2.7), Commissioning should take place at temperatures above -30 °C, Humidity control with ventilation valve | |
| Storage conditions | temperature | -50°C~+60°C(-58°F~+140°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| EPA (Effective Projected Area) | 0.026㎡ | |
| Input voltage | PoE+ (IEEE802.3at, Class 4), 12 VDC | |
| electricity consumption | PoE | Max. 19.2W, typical 11.0W |
| 12 VDC | Max. 16.5W, typical 9.5W | |
| Wisepower | Power monitoring | |
| Power redundancy failover protection | bracket | |
Mechanically
| Color | White | |
| material | Aluminum, hard-coated window | |
| RAL code | RAL9003 | |
| Product dimensions | ø93.4×298.4mm(ø3.68×11.75″) | |
| Product weight | 2,180g (4.81lb) | |
| Compatible conduit drilling | 19.1 mm (3/4″) (M25) | |
| Compatible gear box | Singles, Doubles, 4″ Octagon, Square | |
| Weight | 4 lbs |
|---|---|
| Dimensions | 11 × 3 × 3 in |
