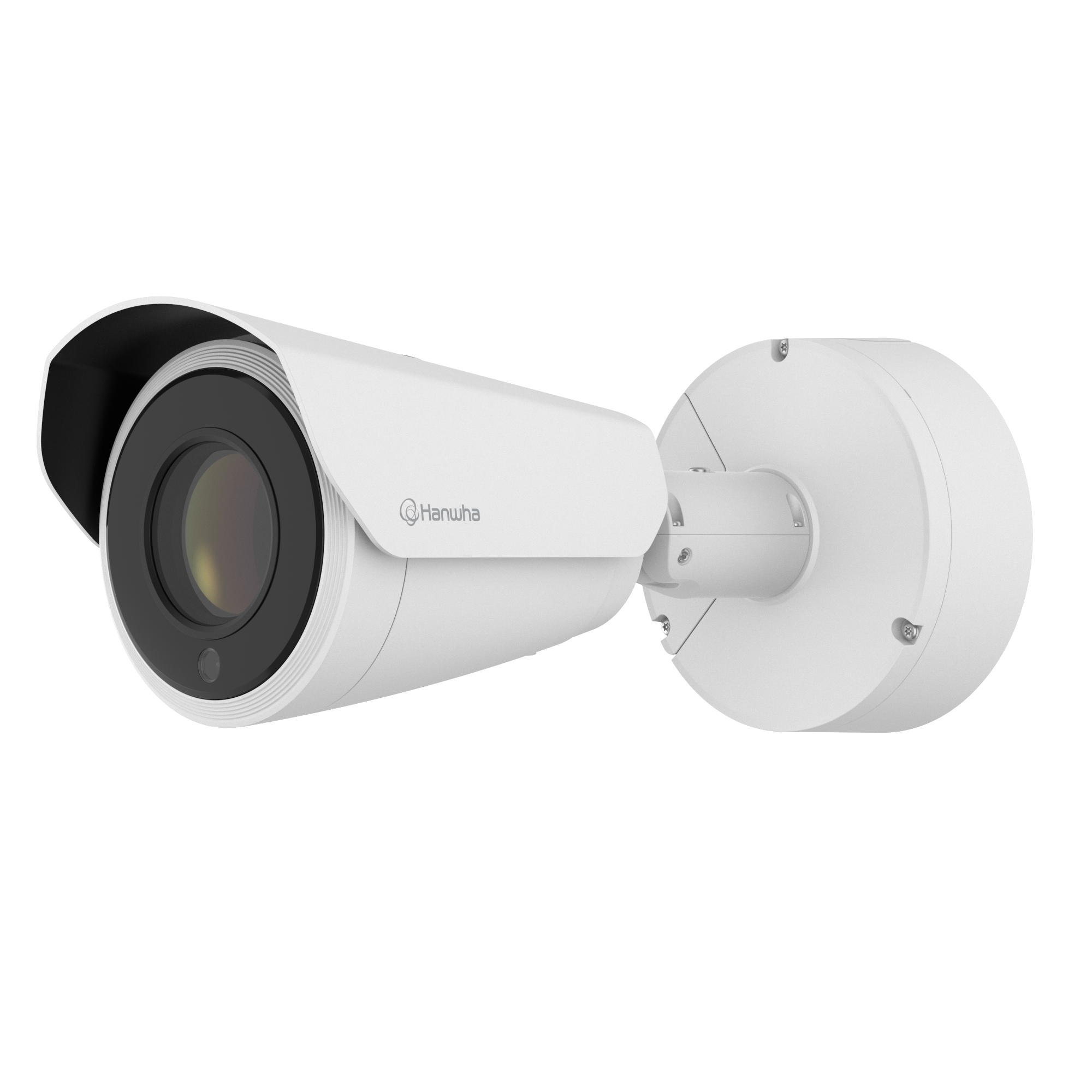

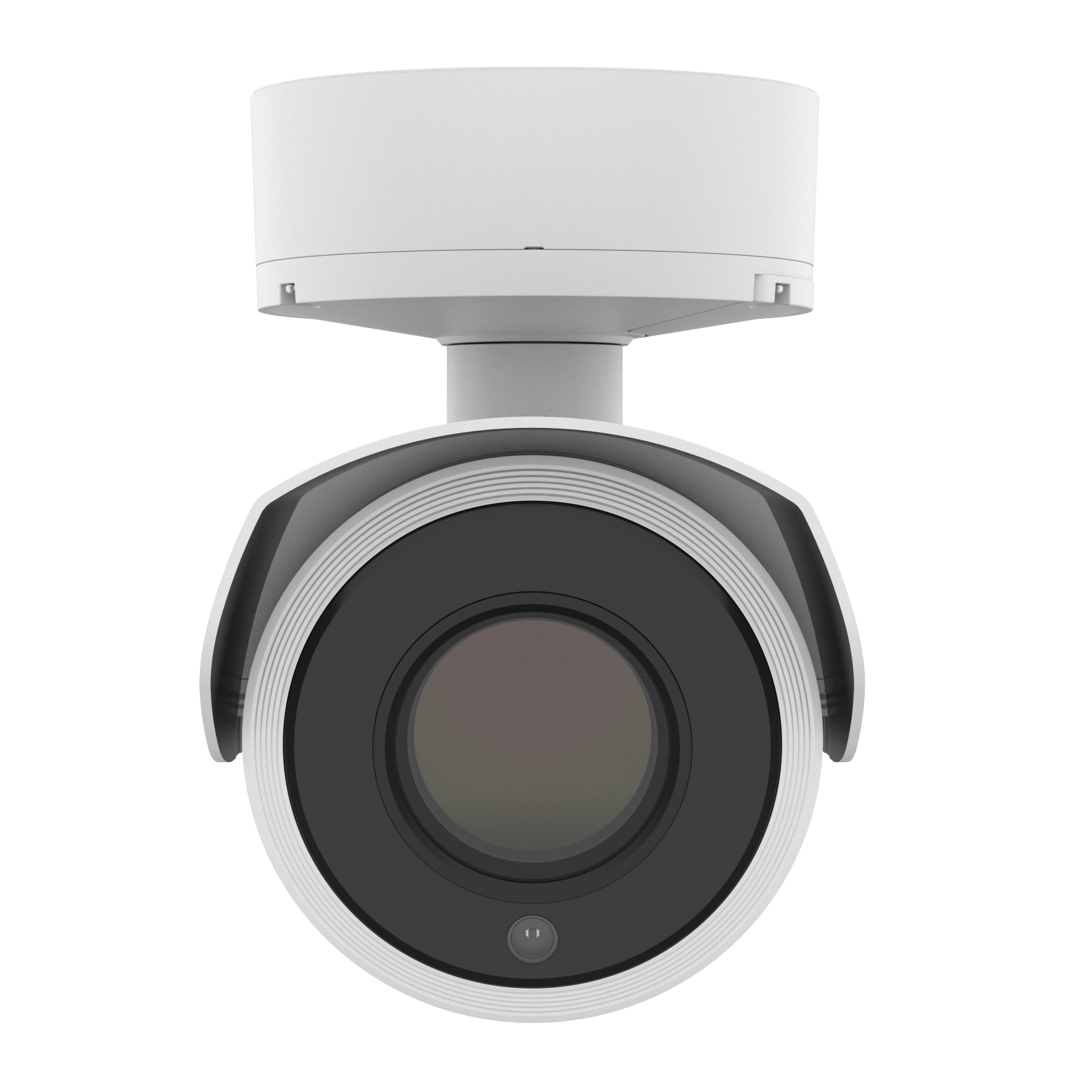

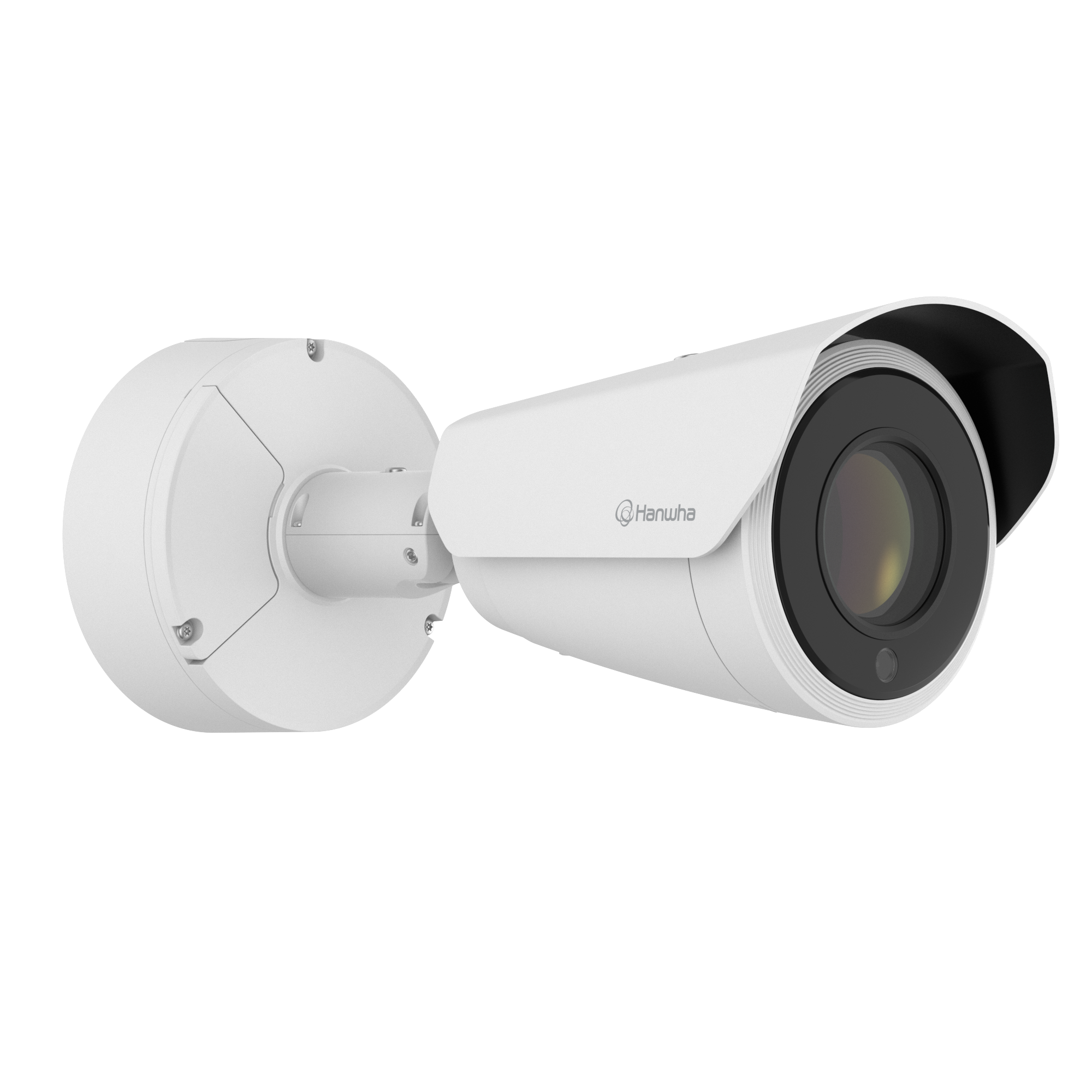

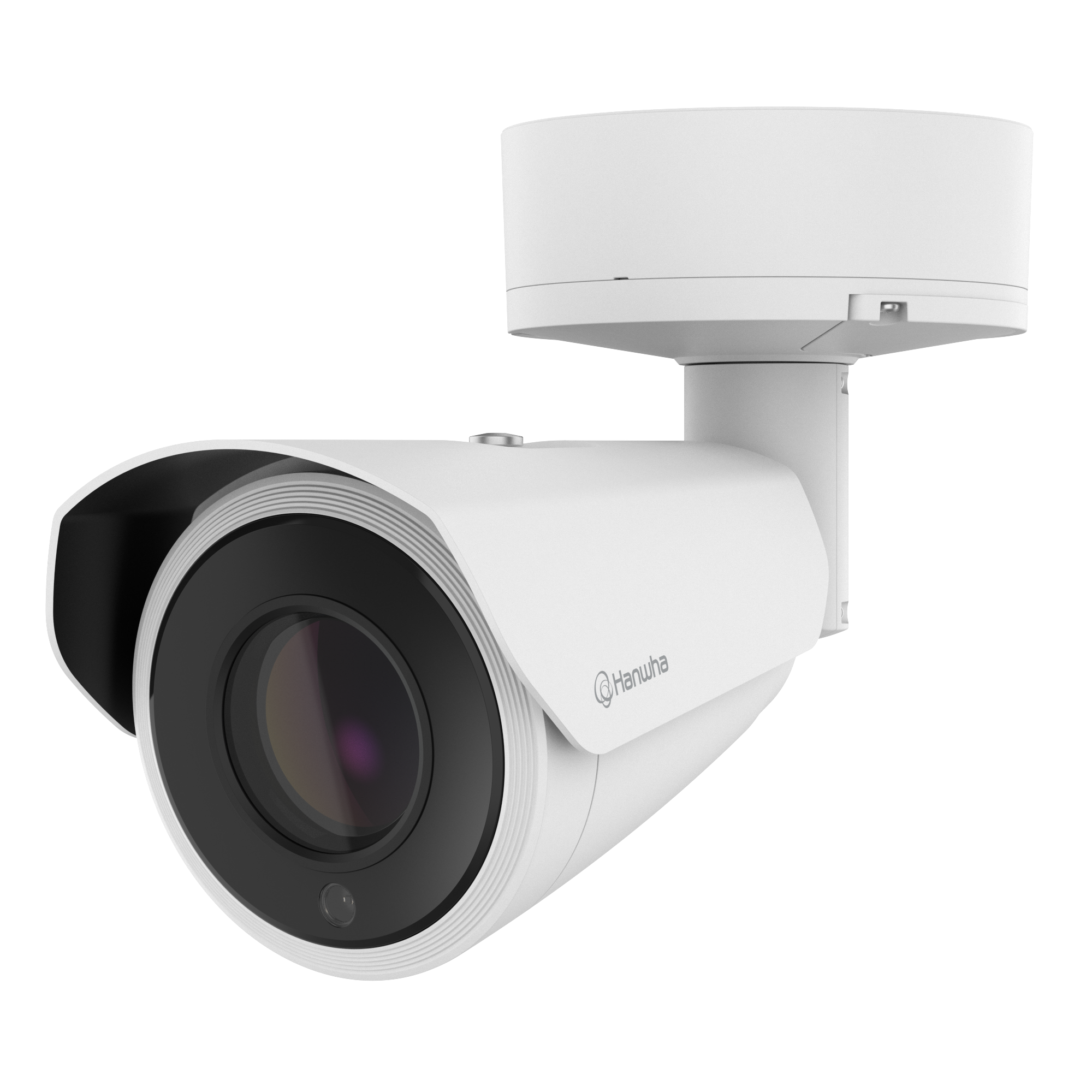

Hanwha Vision PNO-A9311R 4K Network IP Bullet Camera
2,750.00$
SKU
:
PNO-A9311R
Share
:
Secure Checkout
Fast Delivery
Compatible Products
FAQs
Hanwha Vision PNO-A9311R 4K Network IP Bullet Camera
2,750.00$
Hanwha Vision PNO-A9311R 4K Network IP Bullet Camera
Key features
- Maximum 4K resolution
- 6.91~214.7mm (31x) zoom
- IR viewable length 70m(229.66ft)
- Color: 0.075Lux(F1.36, 1/30sec, 30IRE) / BW: 0.0075Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on)
- Day & Night(ICR), WDR(120dB), WiseNRⅡ (Using AI engine), prefer shutter
- H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
- Object Classification, Attributes and BestShot
- Vehicle counting, crowd counting, slip & fall detection
- Reinforced durability (IP66/IP67, IK10, NEMA4X)
- ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
- Next level cybersecurity (TPM with FIPS 140-2 level2)
video
| Imaging device | Size | 1-1.8″ |
| type | CMOS | |
| resolution | 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 | |
| Max. frame rate | H.265/H.264 | 30 fps/25 fps (60 Hz/50 Hz) |
| MJPEG | 30 fps | |
| Minimum illumination (lux) | Color (1/30 second, 30 IRE) | 0.075 |
| B/W (1/30 second, 30 IRE) | 0.0075 | |
| Video output | CVBS: 1.0 Vp-p / 75 Ω composite for installation, USB: Micro-USB Type B | |
lens
| Focal length (mm) | 6.91~214.7 | |
| Zoom ratio | Visually | 31x |
| Maximum aperture ratio (F-number) | Far | 1.36 |
| Tele | 4.6 | |
| Angle of view | Horizontal | 60.92°~2.2° |
| Vertical | 35.26°~1.24° | |
| Diagonal | 69.18°~2.52° | |
| Minimum object distance | 3m (9.84ft) | |
| Focus control | Simple focus | |
| Lens type | P-aperture (IR-corrected) | |
Operational
| Day & Night | Auto (ICR) | |
| Backlight compensation | BLC, WDR, SSDR | |
| Large dynamic range (dB) | 120 | |
| Digital noise reduction | WiseNR II (based on AI engine), SSNR V | |
| Digital image stabilization | Support (built-in gyroscope) | |
| Motion detection | Crowd | 8EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 3ea |
| form | Rectangular zones | |
| Color / Option | Grey, black, white | |
| Reinforcement | Low, Medium, High | |
| White balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic lock | mode | Minimum, Maximum, Anti-Flicker, Prefer Shutter Control (based on AI engine) |
| Speed range | 1/5–1/12,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) | |
| Alarm interface | Entrance/Exit | 2 configurable I/O ports |
| Other | 12 VDC output | |
| Alarm trigger | Analytics, Disconnect network connection, Alarm input, App event, Schedule, MQTT subscription | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing | |
| Audio input | Selectable (microphone input/line-in) | |
| Audio output | Line-Out | |
| Light type | IR LED | |
| Light visible length | IR | WiseIR 70m (229.66ft) |
| IR wavelength | 850 nm | |
Analyses
| Classified object type | Person, face, vehicle, license plate | |
| Attribute | person | Top/bottom dress color, gender, bag |
| vehicle | Type (car, bus, truck, motorcycle, bicycle), color | |
| Face | Age, gender, face mask, glasses | |
| Preview image | BestShot | |
| Analysis events | Based on AI engine | Object detection, virtual line (intersection/direction), virtual area (loitering/intrusion/entering/exiting), face mask detection, distance detection, slip and fall detection |
| Normal | Defocus detection, motion detection, manipulation detection, audio detection, sound classification, shock detection, virtual area (appearance/disappearance), WiseDetector for adding user-defined objects | |
| Business Intelligence | Based on AI engine | People counting, queue management, heat map, vehicle counting, mass counting |
Network
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) | |
| Video compression | H.265/H.264: Main/High, MJPEG | |
| Audio compression | G.711 u-law /G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kbit/s, 24 kbit/s, 32 kbit/s, 40 kbit/s, AAC-LC: 48 kbit/s at 16 kHz | |
| Intelligent codec | Manual, WiseStream III | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multi-streaming | Up to 6 profiles | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Other | SUNAPI (HTTP API), Hanwha Vision Open Platform | |
| Direct cloud connection | bracket | |
Security
| Operating system / firmware protection | Encrypted firmware, Secure Boot, Signed firmware | |
| User authentication | Digest authentication, preventing brute-force attacks | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Access control | IP-based access control | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | Encrypt TPM (Trusted Platform Module) SD card partition (AES-256) | |
| Security certificate | TPM 2.0 with FIPS 140-2 Level 2 | |
Generally
| memory | R.A.M. | 4 GB |
| Flash | 1 GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256 GB x 2 slots (512 GB total) |
Environment & Electrics
| Operating conditions | temperature | -40°C~+55°C(-40°F~+131°F) |
| humidity | 0–100% relative humidity (condensing) | |
| Other | Commissioning should take place at temperatures above -30 °C; humidity control is achieved via a ventilation valve. | |
| Storage conditions | temperature | -50°C~+60°C(-58°F~+140°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| Input voltage | PoE+ (IEEE802.3at, Class 4), 12 VDC | |
| electricity consumption | PoE | Max 25.5W, typical 14.0W |
| 12 VDC | Max 24.0W, typical 12.7W | |
| Power redundancy failover protection | bracket | |
Mechanically
| Color | White | |
| material | aluminum | |
| RAL code | RAL9003 | |
| Product dimensions | ø136.2×358.7mm(ø5.36×14.12″)(Without sunshield) | |
| Product weight | 3,200g (7.05lb) | |
| Compatible conduit drilling | 19.1 mm (3/4″) (M25) | |
| Compatible gear box | Singles, Doubles, 4″ Octagon, Square | |
| Weight | 7 lbs |
|---|---|
| Dimensions | 5 × 4 × 4 in |
