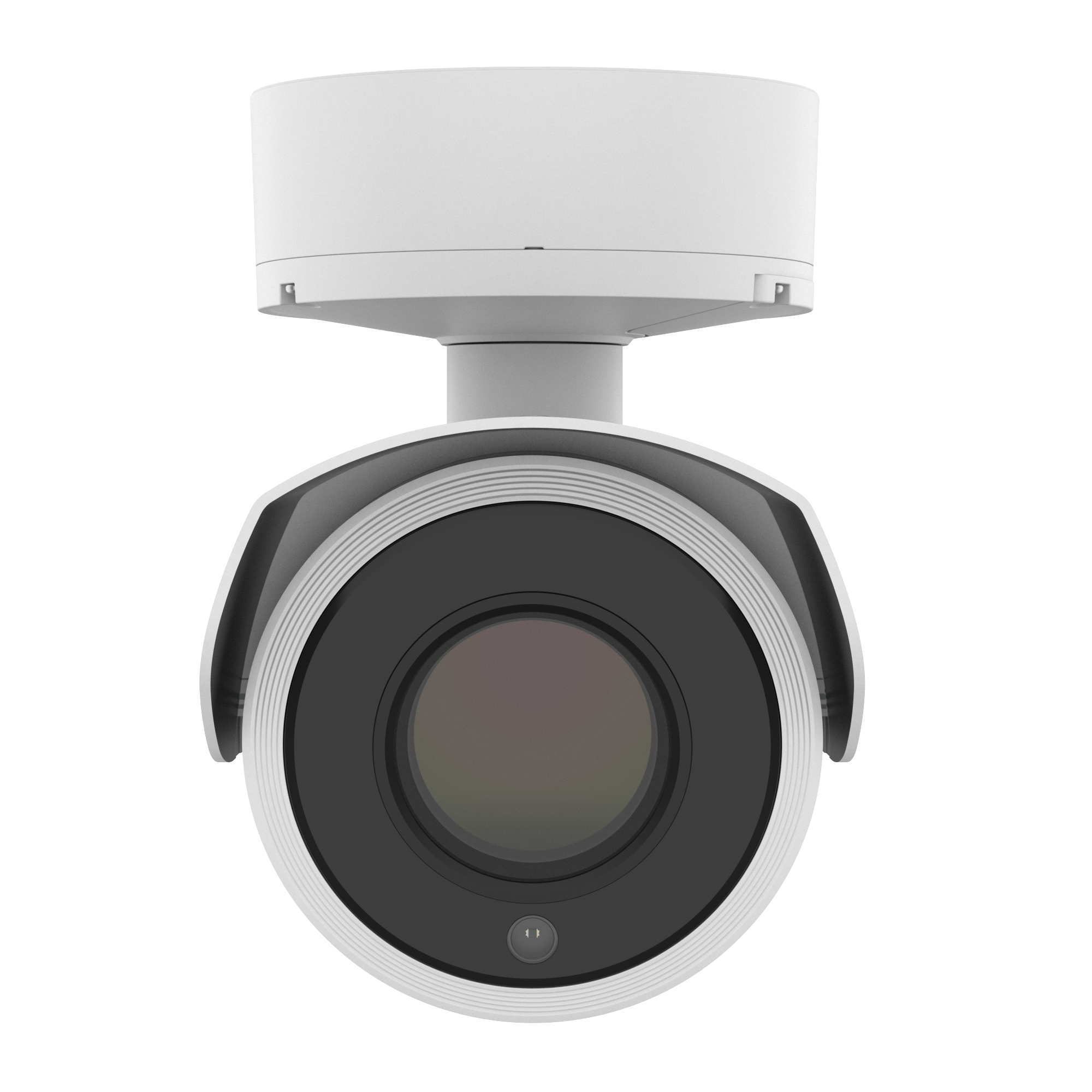

Hanwha Vision PNO-A9311RLP Wisenet Road AI IP Bullet Camera
2,200.00$
Hanwha Vision PNO-A9311RLP Wisenet Road AI IP Bullet Camera
Key features
- License plate and vehicle recognition with long range, 31x zoom, 70 meters infrared and 4K resolution
- All-in-one solution with ANPR, MMCR and vehicle classification analysis, pre-installed and licensed
- Edge-based solution that requires no server. Ideal for high-speed traffic monitoring with coverage of up to two lanes at speeds of up to 200 km/h (124 mph).
- Access control and license plate number management for stop-and-go installations such as parking lots and toll roads
- Web-based, user-friendly interface, without the need for special client software.
- Improved and more efficient search functions with multiple inputs
- Gain insights into road usage by vehicle type, make and model.
video
| Imaging device | Size | 1-1.8″ |
| type | CMOS | |
| resolution | 3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 | |
| Max. frame rate | H.265/H.264 | 30 fps/25 fps (60 Hz/50 Hz) |
| MJPEG | 30 fps | |
| Minimum illumination (lux) | Color (1/30 second, 30 IRE) | 0.075 |
| B/W (1/30 second, 30 IRE) | 0.0075 | |
| Video output | CVBS: 1.0 Vp-p / 75 Ω composite for installation, USB: Micro-USB Type B | |
lens
| Focal length (mm) | 6.91~214.7 | |
| Zoom ratio | Visually | 31x |
| Maximum aperture ratio (F-number) | Far | 1.36 |
| Tele | 4.6 | |
| Angle of view | Horizontal | 60.92°~2.2° |
| Vertical | 35.26°~1.24° | |
| Diagonal | 69.18°~2.52° | |
| Minimum object distance | 3m (9.84ft) | |
| Focus control | Simple focus | |
| Lens type | P-aperture (IR-corrected) | |
Operational
| Day & Night | Auto (ICR) | |
| Backlight compensation | BLC, WDR, SSDR | |
| Large dynamic range (dB) | 120 | |
| Digital noise reduction | SSNR V | |
| Digital image stabilization | Support (built-in gyroscope) | |
| Motion detection | Crowd | 8EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 3ea |
| form | Rectangular zones | |
| Color / Option | Grey, black, white | |
| Reinforcement | Low, Medium, High | |
| White balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic lock | mode | Minimum, Maximum, Anti-flicker |
| Speed range | 1/5–1/12,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) | |
| Alarm interface | Entrance/Exit | 2 configurable I/O ports |
| Other | 12 VDC output | |
| Alarm trigger | Analytics, Disconnect network connection, Alarm input, App event, Schedule, MQTT subscription | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP, Notification: Email, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing, NAS recording on event triggers | |
| Audio input | Selectable (microphone input/line-in) | |
| Audio output | Line-Out | |
| Light type | IR LED | |
| Light visible length | IR | WiseIR 70m (229.66ft) |
| IR wavelength | 850 nm | |
Network
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) | |
| Video compression | H.265/H.264: Main/High, MJPEG | |
| Audio compression | G.711 u-law /G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kbit/s, 24 kbit/s, 32 kbit/s, 40 kbit/s, AAC-LC: 48 kbit/s at 16 kHz | |
| Intelligent codec | Manual, WiseStream II | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 6 users |
| Multicast | Support | |
| Multi-streaming | Up to 6 profiles | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Other | SUNAPI (HTTP API), Hanwha Vision Open Platform | |
Security
| Operating system / firmware protection | Encrypted firmware, Secure Boot, Signed firmware | |
| User authentication | Digest authentication, preventing brute-force attacks | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure) | |
| Access control | IP-based access control | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | TPM (Trusted Platform Module) | |
| Security certificate | TPM 2.0 with FIPS 140-2 Level 2, TPM 2.0 with FIPS 140-2 Level 2 | |
Generally
| memory | R.A.M. | 4 GB |
| Flash | 1 GB | |
| Edge Storage | Micro SD/SDHC/SDXC | 1 slot (32GB card preinstalled) dedicated to strong LPR images from Wisenet Road AI app only (not for video recording) |
Environment & Electrics
| Operating conditions | temperature | -40°C~+55°C(-40°F~+131°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| Other | The commissioning should take place at temperatures below -30 °C. | |
| Storage conditions | temperature | -50°C~+60°C(-58°F~+140°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| Input voltage | PoE+ (IEEE802.3at, Class 4), 12 VDC | |
| electricity consumption | PoE | PoE+: Max 25.5W, typical 14.0W |
| 12 VDC | 12VDC: Max 24.0W, typical 12.7.W | |
Mechanically
| Color | White | |
| material | aluminum | |
| RAL code | RAL9003 | |
| Product dimensions | ø136.2×358.7mm(ø5.36×14.12″)(Without sunshield) | |
| Product weight | 3200g (7.05lb) | |
| Compatible conduit drilling | 19.1 mm (3/4″) (M25) | |
| Compatible gear box | Singles, Doubles, 4″ Octagon, Square | |
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 5 × 5 in |
