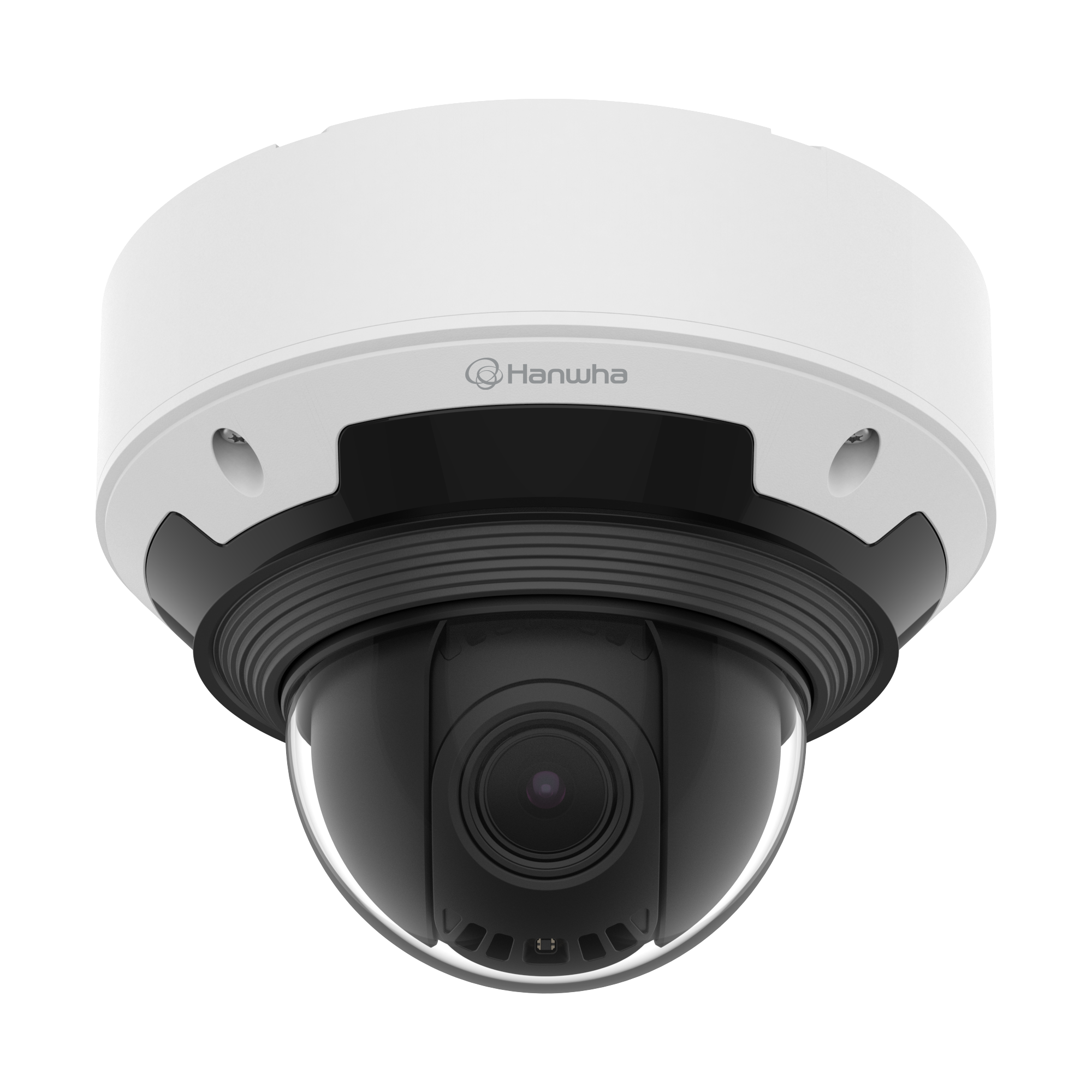

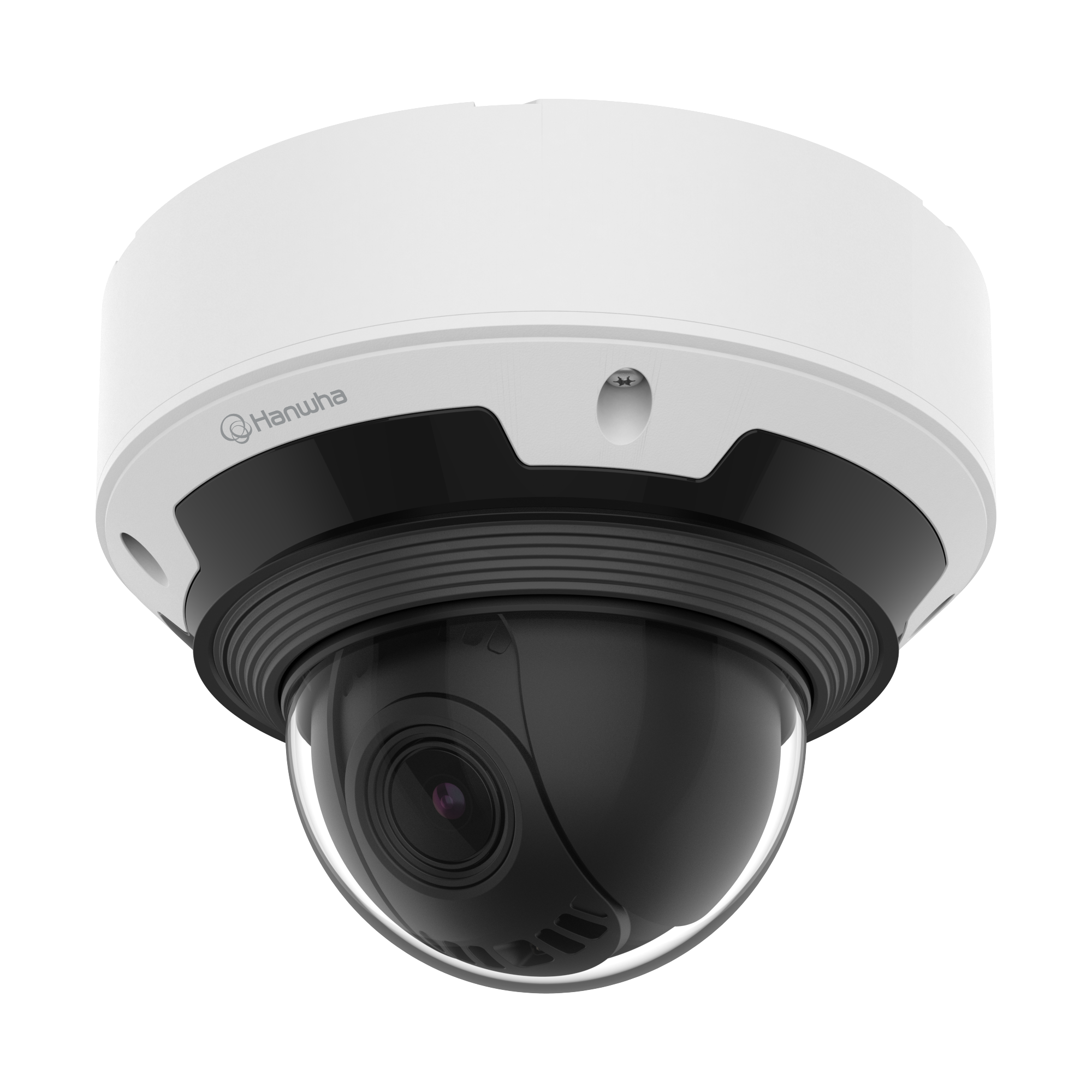

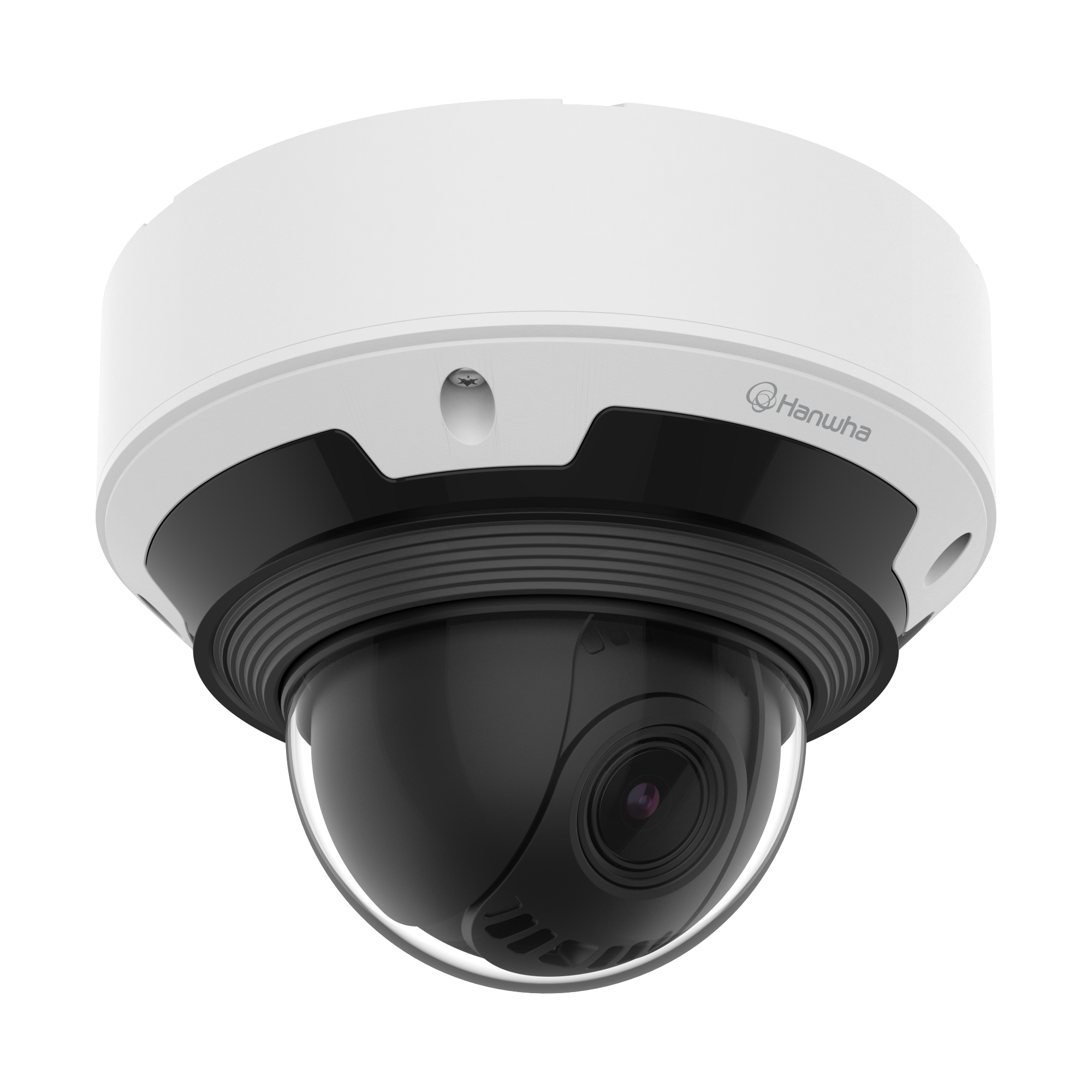

Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera
2,200.00$
Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera
Key features
- Maximum resolution of 4MP (1/1.8” sensor)
- 4.6~9.35mm (2.0x) motorized varifocal lens
- Long-range WiseIR range up to 30m (98.43ft)
- Color: 0.03Lux (F1.3, 1/30sec, 30IRE)
- SW: 0.003Lux (F1.3, 1/30sec, 30IRE)
- PRTZ for easy installation
- PTRZ preset support twice daily
- Analysis events based on AI engine: Object recognition (person/face/vehicle/license plate), IVA (virtual line/area, enter/exit, linger, direction, intrusion), slip & fall detection, face mask detection, social distancing detection
- Business intelligence based on an AI engine: People/vehicle/quantity counting, queue management, heatmap
- BestShot support and full attributes
- Support for dynamic privacy masking
- AI-based image enhancement
video
| Imaging device | Size | 1-1.8″ |
| type | CMOS | |
| resolution | 2592×1520, 2560×1440, 1920×1080, 1600×1200, 1280×960, 1280×720, 1024×768, 800×600, 640×480, 640×360, 320×240, 320×180 | |
| Max. frame rate | H.265/H.264 | 60 fps/50 fps (60 Hz/50 Hz) (WDR off) / 30 fps/25 fps (60 Hz/50 Hz) (WDR on) |
| MJPEG | 30 fps (at 4 MP Max. 5 fps) | |
| Minimum illumination (lux) | Color (1/30 second, 30 IRE) | 0.03 |
| B/W (1/30 second, 30 IRE) | 0.003 | |
lens
| Focal length (mm) | 4.6~9.35 | |
| Zoom ratio | Visually | 2.0x |
| Maximum aperture ratio (F-number) | Far | 1.3 |
| Tele | 2.15 | |
| Angle of view | Horizontal | 105°~47° |
| Vertical | 58°~27° | |
| Diagonal | 128°~55° | |
| Minimum object distance | 1.5m (4.92ft) | |
| Focus control | Simple focus | |
| Lens type | P-aperture (IR-corrected) | |
Pan / Tilt / Rotate
| Swivel / tilt / rotation range | Sway | 0°~350° |
| Tend | 0°~85° | |
| Turn | -95°~95° | |
| Other | Remote setting (max. 3,650 cycles) |
Surgical
| Day & Night | Auto (ICR) | |
| Backlight compensation | BLC, HLC, WDR, SSDR | |
| Wide dynamic range (dB) | 120 | |
| Digital noise reduction | WiseNR II (based on AI engine), SSNR V | |
| Digital image stabilization | Support | |
| Defogging | Support | |
| Motion detection | Crowd | 8EA |
| form | 8-point polygon zones | |
| Privacy masking | Crowd | 32ea |
| form | 8-point polygon zones | |
| Color / Option | Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Dynamic privacy masking: Color / Option | Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow | |
| Reinforcement | Off, Max. Reinforcement, Manual. | |
| White balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support (fill/stretch mode) | |
| Electronic lock | mode | Minimum, Maximum, Anti-Flicker, Prefer Shutter Control (based on AI engine) |
| Speed range | 2–1/30,000 second | |
| Video shoot | Rotate, mirror, corridor view (90°/270°) | |
| Alarm interface | Other | Supports additional alarm I/O via optional I/O box |
| Alarm trigger | Analysis, network disconnection, alarm input, schedule, MQTT subscription, chassis tampering, day/night, memory interruption | |
| Alarm events when an alarm trigger occurs | File upload (image): Email/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing | |
| Light type | IR LED | |
| Light visible length | IR | WiseIR 30m (98.43ft) |
| IR wavelength | 850 nm | |
Analyses
| Classified object type | Person, face, vehicle, license plate | |
| Attribute | person | Top/bottom dress color, gender, bag |
| vehicle | Type (car, bus, truck, motorcycle, bicycle), color | |
| Face | Age, gender, face mask, glasses | |
| Similarity Search | Support | |
| Preview image | BestShot | |
| Analysis events | Based on AI engine | Object detection, virtual line (intersection/direction), motion detection, face mask detection, distance detection, slip and fall detection, virtual area (loitering/intrusion/entering/exiting/appearing/disappearing) |
| Normal | Defocus detection, manipulation, audio detection, shock detection | |
| Business Intelligence | Based on AI engine | People counting, queue management, heat map, vehicle counting, mass counting |
Network
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) | |
| Video compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Intelligent codec | WiseStream (based on AI engine) | |
| Bitrate control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multi-streaming | Up to 5 profiles, support for 3 virtual channels | |
| protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, Syslog | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Other | SUNAPI (HTTP API), Hanwha Vision Open Platform | |
| Direct cloud connection | bracket | |
Security
| Operating system / firmware protection | Encrypted firmware, Secure Boot, Signed firmware | |
| User authentication | Digest authentication, preventing brute-force attacks | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure communication | HTTPS, WSS (WebSocket Secure), SRTP | |
| Access control | IP-based access control, MAC-based access control, automatic logout | |
| Data protection | Encryption credentials, encrypted compression for exporting live recording files | |
| Audit | Access/System/Event Log Management | |
| Device ID | Device certificate (Hanwha Vision Root CA) | |
| Secure storage | Encrypt SD card partition (AES-256), Secure Element | |
| Supply chain security | SBOM | |
| Security certificate | Safe element (FIPS 140-3 Level 3, CC EAL6+), ETSI EN 303 645 | |
Generally
| SoC | Type | Wisenet 9 |
| Dual NPU | Support | |
| memory | R.A.M. | 4 GB |
| Flash | 8 GB eMMC | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1 TB x 2 slots (2 TB total) |
| Edge Storage (OnCloud) | Micro SD/SDHC/SDXC | Max. 1 TB x 2 slots (2 TB total) *Hanwha Vision brand microSD cards have been certified and recommended for OnCloud Edge recording. |
Environment & Electrics
| Operating conditions | temperature | -50°C~+55°C(-58°F~+131°F) |
| humidity | 0–100% relative humidity (condensing) | |
| Other | +74 °C (+165 °F) (Max.) based on NEMA-TS 2 (2.2.7), Commissioning should take place at temperatures above -30 °C, Humidity control with ventilation valve | |
| Storage conditions | temperature | -50°C~+60°C(-58°F~+140°F) |
| humidity | 0–90% relative humidity (non-condensing) | |
| EPA (Effective Projected Area) | 0.017 | |
| Input voltage | PoE+ (IEEE802.3at, Class 4) | |
| electricity consumption | PoE | Max. 15.0W, typical 9.0W |
| Wisepower | Power monitoring | |
Mechanically
| Color | White | |
| material | Aluminum, hard-coated dome | |
| RAL code | RAL9003 | |
| Product dimensions | ø180x135mm(ø7.09×5.31″) | |
| Product weight | 2,100g (4.63lb) | |
| Compatible conduit drilling | 19.1 mm (3/4″) (M25) | |
| Compatible gear box | Singles, Doubles, 4″ Octagon, Square | |
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 5 × 5 in |
