Hanwha Vision SHD-1370FPW Plenum In-ceiling Mount Security Camera Accessory
131.00$
In stock
Hanwha Vision SHD-1370FPW Plenum In-ceiling Mount Security Camera Accessory

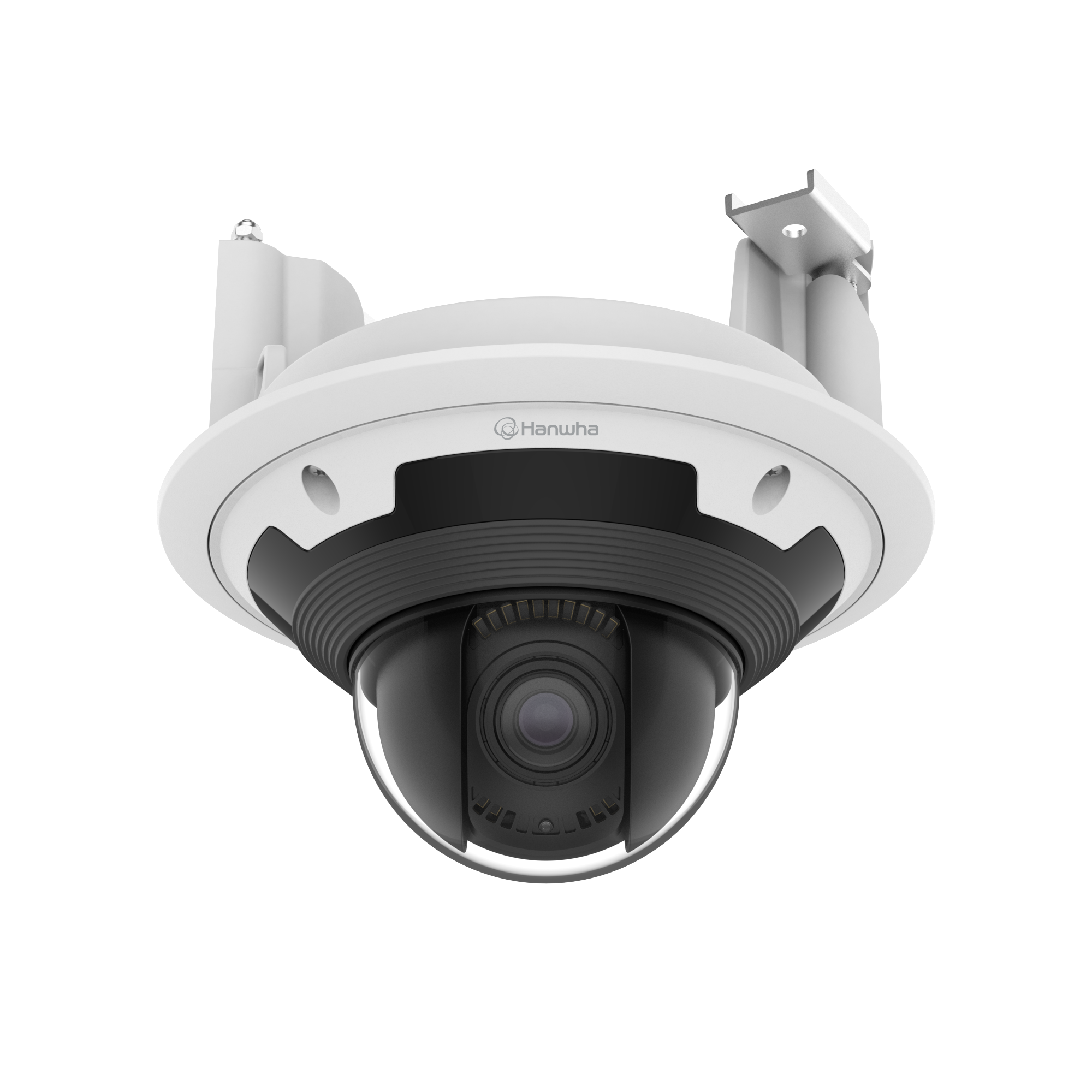

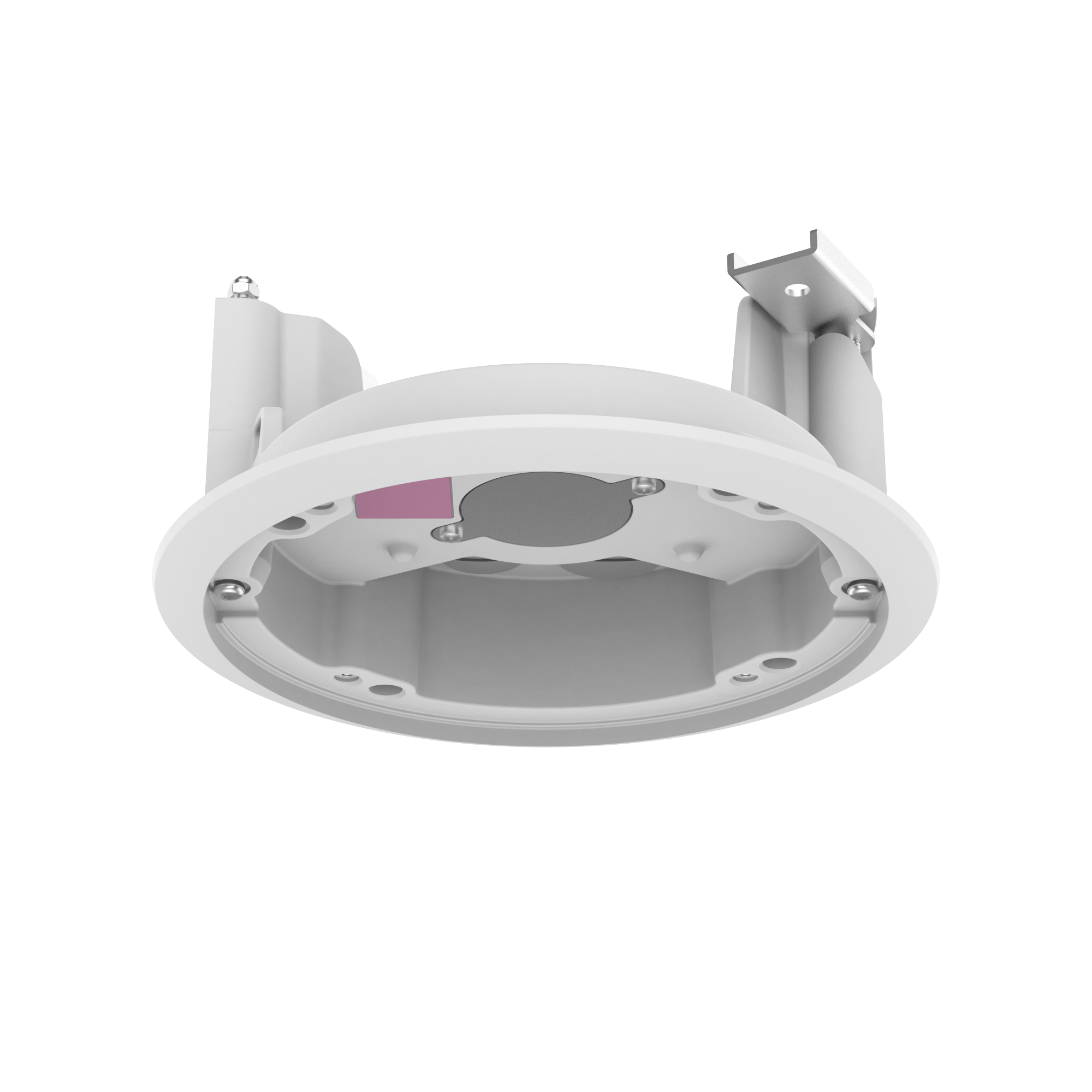

The Hanwha Vision SHD-1370FPW is an NDAA-certified, plenum-rated in-ceiling mount housing designed for flush-mounting compatible Hanwha dome security cameras into ceilings .
Key Specifications
- Material & Color: White (RAL9003) aluminum.
- Dimensions: ø205 x 103 mm (ø8.07″ x 4.05″).
- Ceiling Hole Cutout: ø181 mm (ø7.12″).
- Weight: 770 g (1.70 lb).
- Tile Thickness Range: 10 mm to 70 mm (0.4″ to 2.8″).
- Load Capacity: Maximum camera weight of 3 kg (6.61 lb); maximum ceiling board load capacity of 6.5 kg (14.30 lb).
- Conduit Holes: Dual sizes supported: 12.7 mm (1/2″ / M20) and 19.1 mm (3/4″ / M25).
Camera Compatibility
This housing is explicitly built to support several Hanwha PNV and XNV series dome cameras, including:
- PNV Series: PNV-A6081R, PNV-A9081R
- XNV Series (Fixed/Vandal Dome): XNV-6123R, XNV-8082R, XNV-9082R
- XNV Motorized Varifocal Series: XNV-6083R, XNV-8083R, XNV-8093R, XNV-9083R
- XNV PTZ / Zoom Series: XNV-6083Z, XNV-8083Z, XNV-6083RZ, XNV-8083RZ, XNV-9083RZ
