Hanwha Vision SHP-1563FW Flush mount Security Camera Accessory

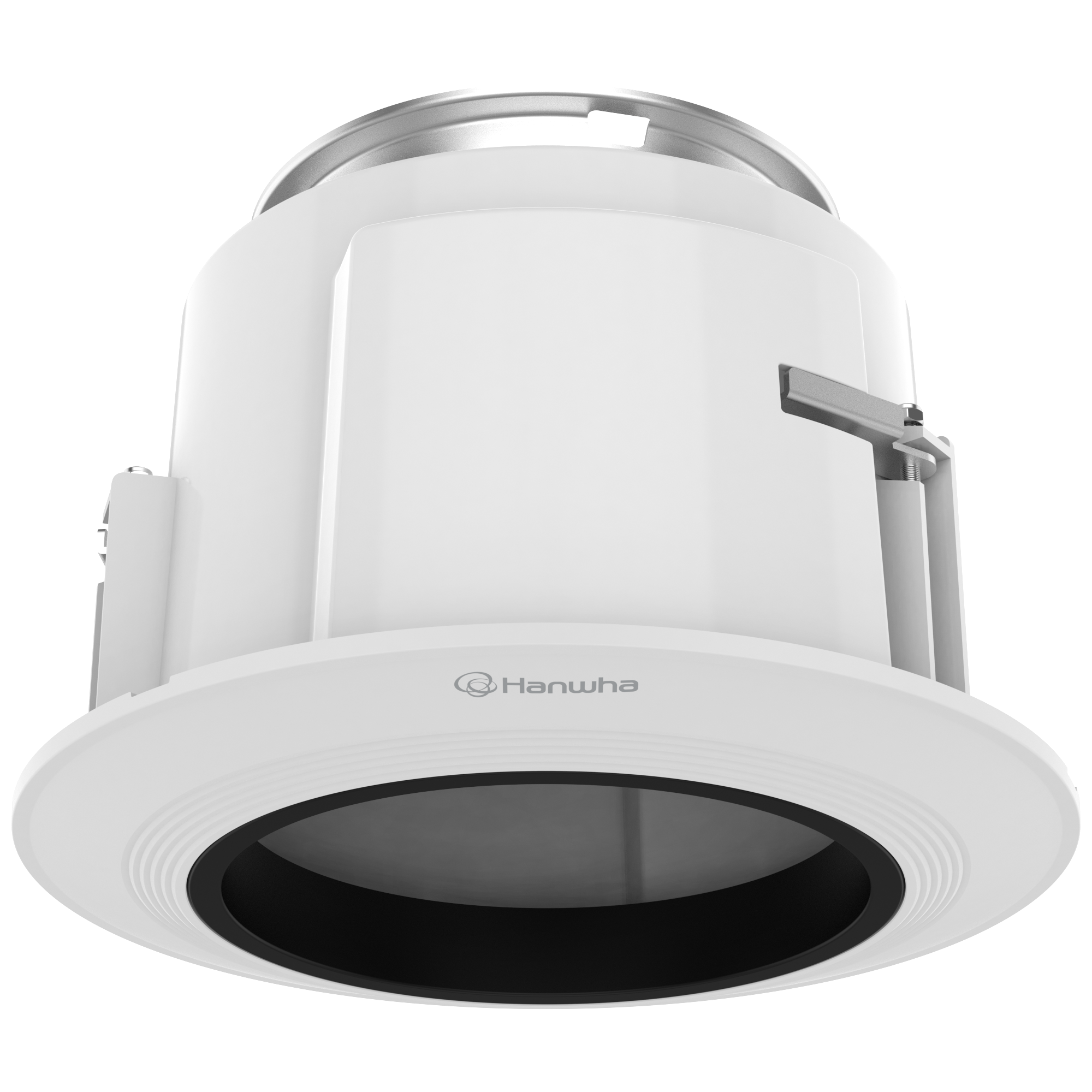

The Hanwha Vision SHP-1563FW is an in-ceiling flush mount housing designed for discrete indoor installation of PTZ (Pan-Tilt-Zoom) security cameras . It allows compatible cameras to sit recessed into a ceiling panel or ceiling tile.
Key Specifications
- Material: Polycarbonate (PC) and Aluminum
- Color: White (RAL 9003)
- Dimensions: ø268 x 190 mm (ø10.55″ x 7.48″)
- Weight: 1.2 kg (2.65 lb)
- Ceiling Tile Thickness: Supports tiles from 3 mm to 70 mm thick
- Conduit Holes: 19.1 mm (3/4″ / M25) and 12.7 mm (1/2″ / M20)
- Certifications: NDAA Compliant
Compatible Camera Series
The housing is specifically built to support Hanwha Vision’s PTZ-Plus and XNP/QNP lines, including:
- XNP Series: XNP-9250, XNP-9250R, XNP-8250, XNP-8250R, XNP-6400, XNP-6400R
- XNP-C Series: XNP-C6403, XNP-C6403R, XNP-C8253, XNP-C9253
- QNP Series: QNP-6320R, QNP-6250R
Installation Requirements
- Plenum Depth: The installation area requires a clear void space of more than 250 mm above the ceiling board.
- Safety Elements: The unit ships with a safety bracket and a safety wire to secure the housing structure to an anchor bolt or structural framing independently of the ceiling tile.
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 8 × 8 in |
| Accessory | |
| Brands | |
| Color | |
| Mount Type | |
| Material |
