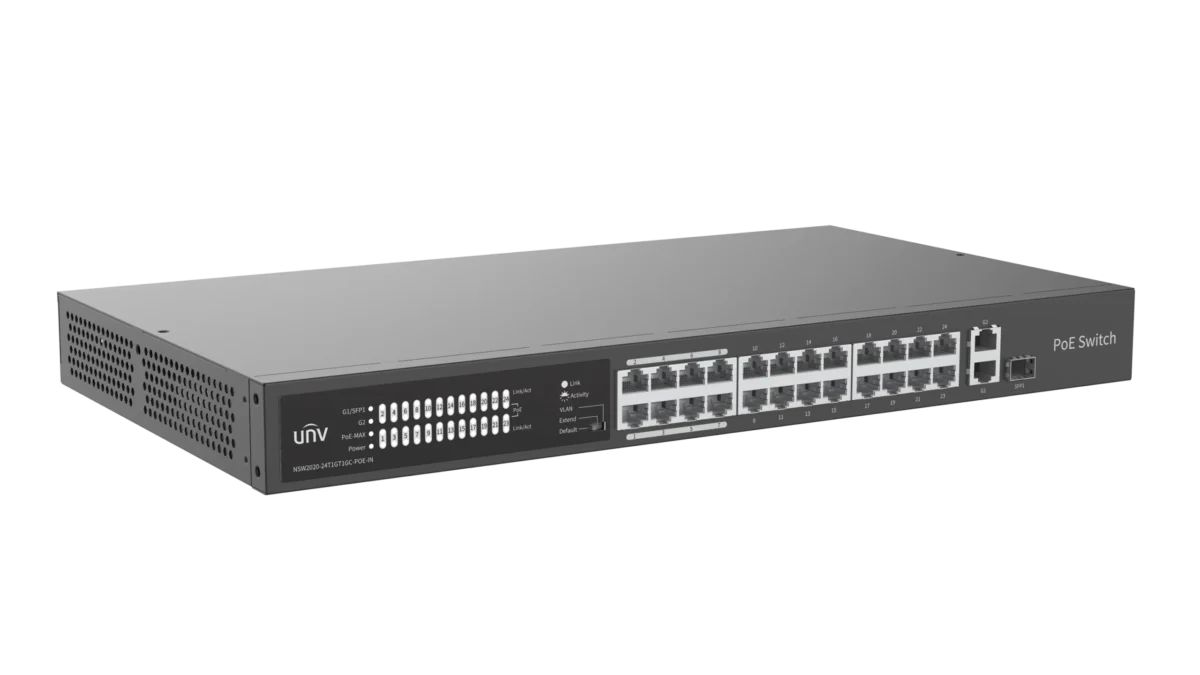

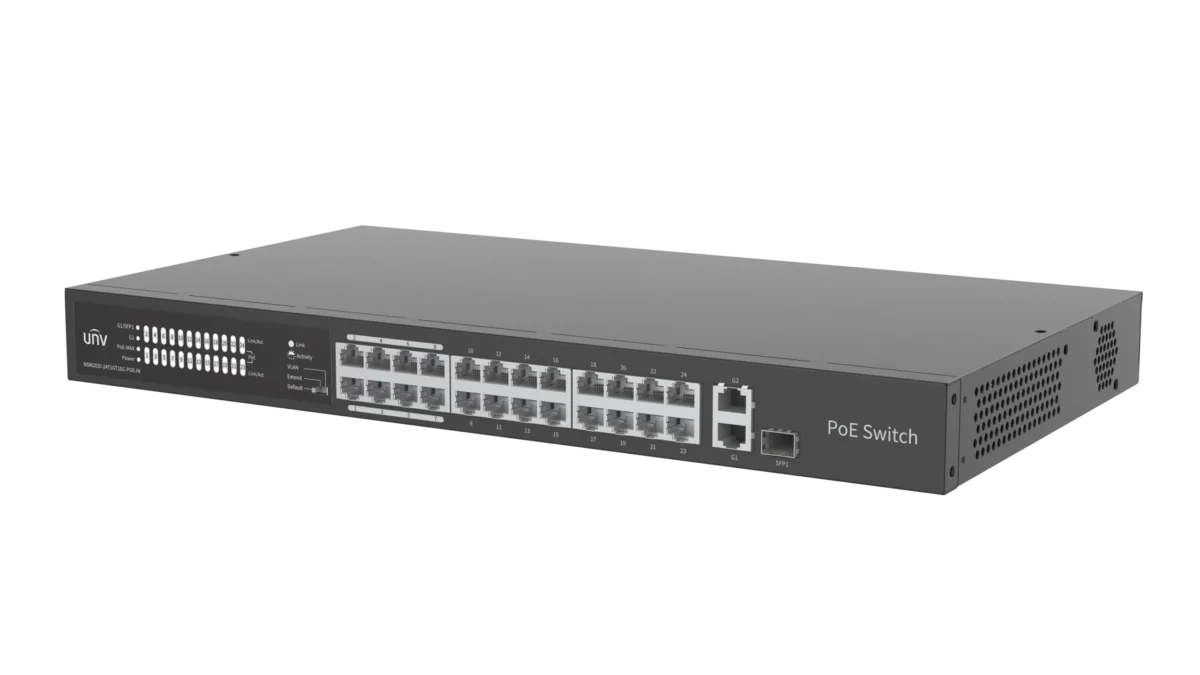

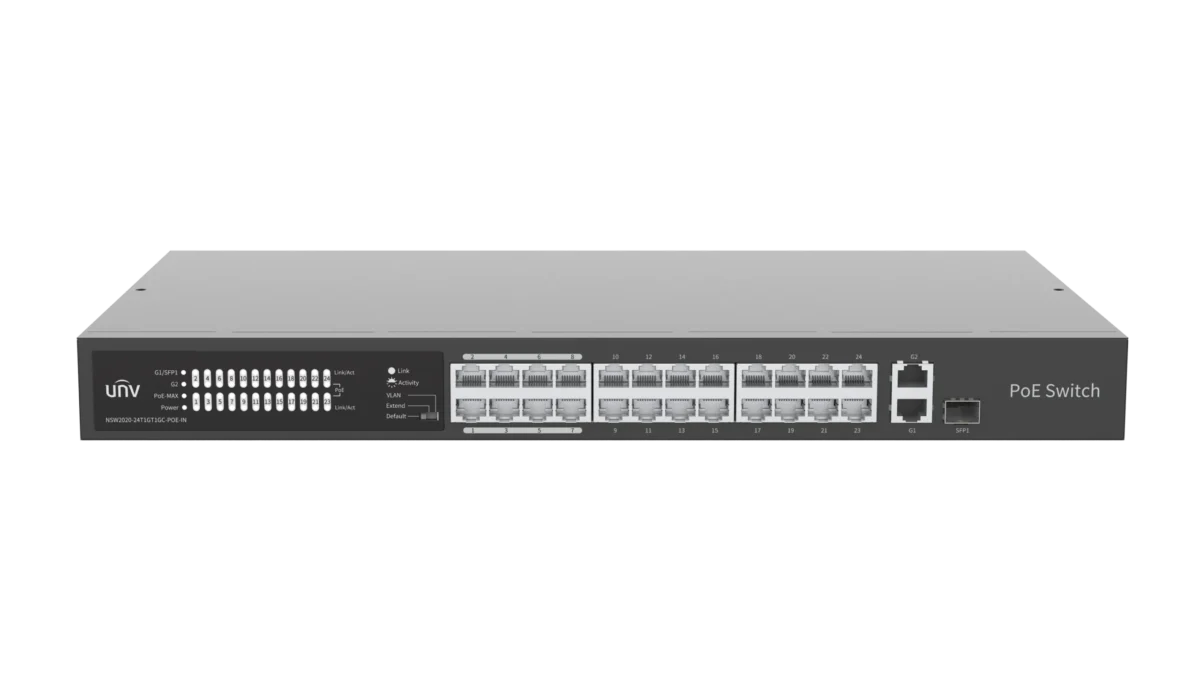

Uniview NSW2020-24T1GT1GC-POE-IN Series PoE Switches 24 Port PoE+ Switch with Surveillance Security Accessory

SKU: NSW2020-24T1GT1GC-POE-IN

Key Features

NSW2020-24T1GT1GC-POE-IN

  • Type: Switch
  • Ports: 24
  • Max. PoE Power: Max capacity: 225W
  • Operating temperature: -10°C-55°C (14°F-131°F)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

689.00$

In stock

In stock

19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Uniview NSW2020-24T1GT1GC-POE-IN Series PoE Switches 24 Port PoE+ Switch with Surveillance Security Accessory

The Uniview NSW2020-24T1GT1GC-POE-IN Switch security surveillance product.

Features:

Multiple working modes to address your business needs: Normal, Secure and Surveillance
It Support port traffic control
This switch Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable

Description:

The Uniview NSW2020-24T1GT1GC-POE-IN Series is designed to cater to the growing demands of modern network environments. These switches’ outstanding port density is their original unique feature. With the PoE+ abilities a wide range of devices, including those with higher power requirements, are suitable. It are energy-efficient reducing your long-term operational expenses. It are built to withstand harsh conditions ensuring uninterrupt operation even in challenging environments. The Uniview NSW2020-24T1GT1GC-POE-IN Series PoE Switches are a game changer for anyone seeking a powerful, efficient, and cost-effective network solution.

Specification:

Hardware  Specification
Ports Type
24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Standards
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity
8.8Gbps
Forwarding performance
6.55Mpps
Packet Buffer
4M bit
MAC
16K
Max. PoE Power
Max capacity: 370W,
Max capacity for single port: 30W
PoE
support POE
Prior Ports
1~8
Indicator
POWER Steady on: AC input is normal,
POWER Off: No AC input,
PoE Off: No PoE power supply,
PoE Steady on: PoE power supply is normal, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification,
PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification,
LINK/ACT Off: No link,
LINK/ACT Flashing: Transmitting data
Power supply
AC: 100-240 V, 50/60 Hz
Max.Power
390W
Storage Temperature
-40 °C ~ 70 °C
Operating temperature
0 °C ~ 40 °C (32 °F ~ 104 °F)
Cooling Fans
1
Mean Time Between Failure (MTBF)
>50000 hours
Dimensions (W×D×H)
440*250*44mm
Weight
2.93KG
Storage humidity
5%~90% (noncondensing)
Operating humidity
10%~90% (noncondensing)
Working Mode
Default(Normal mode) : All ports can communicate with each other., VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
